Li-ion power supply 12.6V 2.5A charger adapter PSE SAA CE UL

Product No.：HRY1262500
Online Inquiry

power supply 12.6V

Product Description:

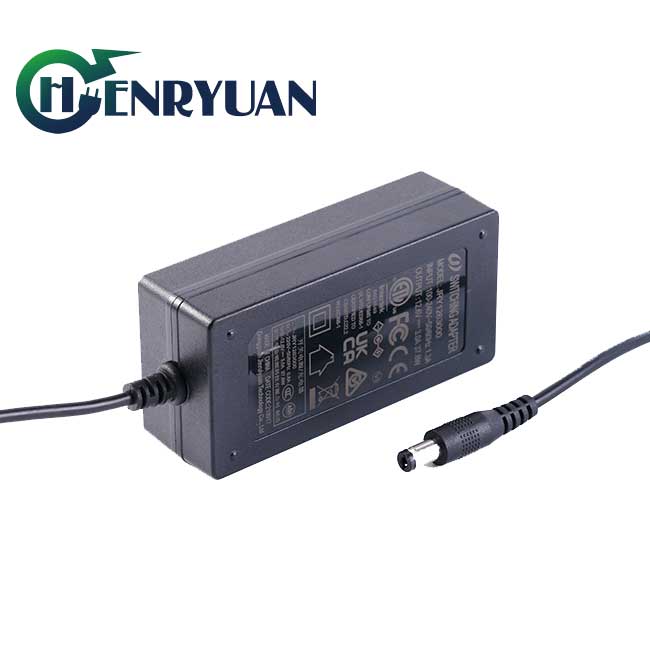

Henryuan Universal 12.6V 2.5A Lithium Battery Charger

The Henryuan 12.6V 2.5A Lithium Battery Charger is a high-quality power supply adapter, designed for 3S 11.1V Li-ion batteries. This charger is certified by UL, cUL, ETL, FCC, CE, GS, UKCA, SAA, PSE, and CCC, ensuring the highest safety standards. With advanced charging technology and robust protection mechanisms, this charger guarantees faster and safer charging.

Key Features and Benefits

1. Safety Certifications

Approved by UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC for reliable safety and compliance.

2. Input Specifications

Input Voltage: 90Vac-264Vac
Rated Voltage: 100Vac-240Vac
Frequency: 47Hz-63Hz
Input Current: 1.3A
Inrush Current: 60A

3. Output Specifications

Output Voltage and Current: 12.6V 2.5A
Charging Stages:
- Constant Current Mode: 7.5V-12.6V, 2.5A (Red LED)
- Constant Voltage Mode: 12.6V, 2.5A -> 0.2A (Red LED)
- Trickle Charging Mode: 12.6V, 0.2A -> 0 (Green LED)

Output		Charging Stage	LED Indicator
Output
Current	Voltage
2.5A	7.5V-12.6V	Constant Current	RED
2.5A->0.2A	12.6V	Constant Voltage	RED
0.2A->0	12.6V	Trickle Current	GREEN LED turn red to green when charging current below 0.2A

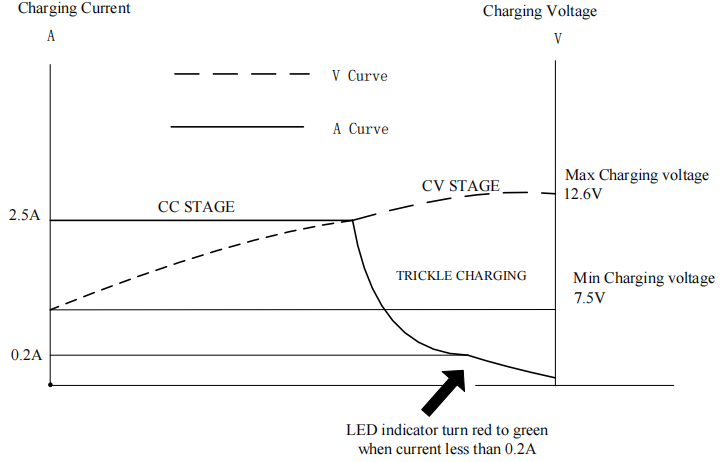

4. Charging Curve, Special Designed For 12.6V 2.5A Lithium Ion Battey Charger
12.6V 2.5A power supply

5. Applications

Suitable for a wide range of devices such as 12V lithium batteries, cameras, robots, electric toys, LED desk lamps, diving lamps, GPS modules, and massagers.

6. Protection Features

Equipped with overcurrent, overvoltage, short circuit, and reverse polarity protection for enhanced safety.

7. Quality Assurance

Experienced sales engineers with over a decade of industry knowledge
Rigorous raw material selection and inspection processes
Advanced design and production testing by skilled engineers
100% full load aging testing for up to 4 hours
Comprehensive after-sales support with resolution within 48 hours

About Henryuan Group

With over ten years of experience, Henryuan Group is a leading supplier in the lithium battery charger industry. Our 12.6V 2.5A chargers are known for their superior performance and safety features, making them a preferred choice for consumers worldwide. Our products are exported to the Americas, Europe, the UK, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan, and more.

Our chargers deliver safe and fast charging, making them ideal for various applications. With excellent EMI performance and a team of experienced engineers, we can meet customer requirements for both existing and developing products. In short, the Henryuan 12.6V Li-ion charger is a reliable and efficient solution for your charging needs. We offer various models, including 12.6V 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 7A, 8A, 9A, 10A, and 15A.

For more 12.6V lithium Ion battery charger, visit: Henryuan 12.6V Lithium Ion Battery Charegrs.
For a safe, reliable, and efficient 12.6V power supply, contact Henryuan's sales engineers today.

Common 12.6V AC Charger Models for Projects

Henryuan 12.6V Charging Solutions(CB, UL, cUL, FCC, ETL, CE, EMC, UKCA, SAA, PSE, KC, CCC, RoHS)	Model	Input	Output(Voltage/Current)	Output(Power)
	HRY1260300	100-240V ac, 50/60Hz	12.6V 0.3A	3.78W
	HRY1260400		12.6V 0.4A	5.04W
	HRY1260500		12.6V 0.5A	6.3W
	HRY1260600		12.6V 0.6A	7.56W
	HRY1260700		12.6V 0.7A	8.82W
	HRY1260800		12.6V 0.8A	10.08W
	HRY1260900		12.6V 0.9A	11.34W
	HRY1261000		12.6V 1.0A	12.6W
	HRY1261200		12.6V 1.2A	15.12W
	HRY1261500		12.6V 1.5A	18.9W
	HRY1261800		12.6V 1.8A	22.68W
	HRY1262000		12.6V 2.0A	25.2W
	HRY1262500		12.6V 2.5A	31.5W
	HRY1263000		12.6V 3.0A	37.8W
	HRY1264000		12.6V 4.0A	50.4W
	HRY1265000		12.6V 5.0A	63.0W
	HRY1266000		12.6V 6.0A	75.6W
	HRY1267000		12.6V 7.0A	88.2W
	HRY1268000		12.6V 8.0A	100.8W
	HRY12610000		12.6V 10.0A	126.0W
	HRY12615000		12.6V 15.0A	189.0W
	HRY12620000		12.6V 20.0A	252W
	HRY12625000		12.6V 25.0A	315W
