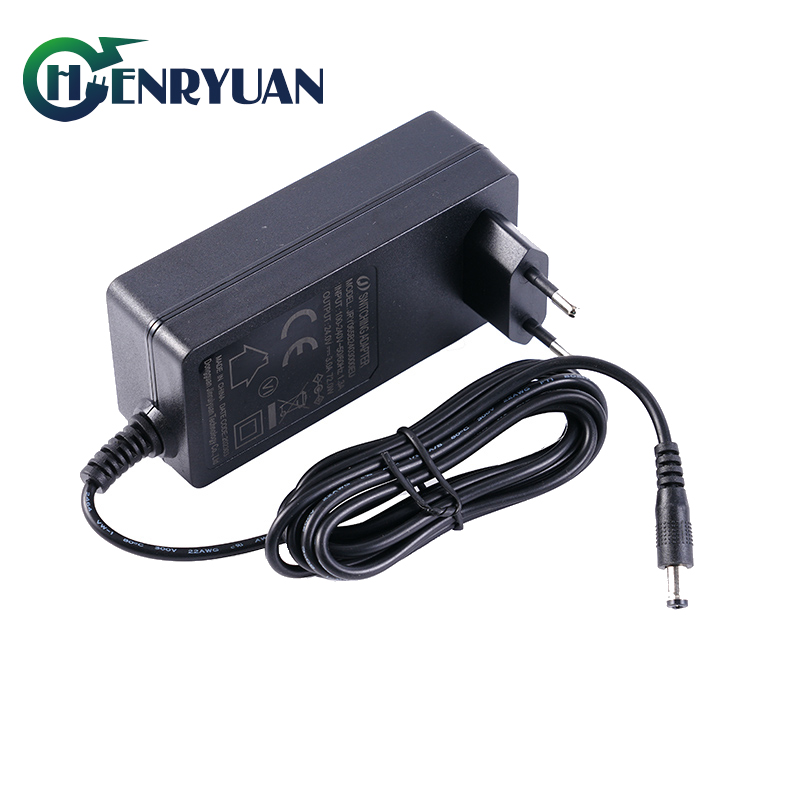

Henryuan European Plug 16.8V 2A Lithium-Ion Battery Charger – Certified, Safe, and Efficient Charger for 4S Lithium Battery Packs
Product Detials
Henryuan 16.8V 2A Lithium Ion Battery Charger is the ideal charging solution for 4S 14.8V lithium-ion battery packs. This European plug charger offers high efficiency, reliability, and top-level safety, making it suitable for a variety of applications such as LED lights, drones, robots, electric toys, communication systems, and more. With multiple safety certifications, including CE, EMC, TUV, UL, PSE, and RoHS, this charger ensures compliance with international standards and guarantees long-lasting performance.
Key Features of the Henryuan 16.8V 2A Lithium-Ion Battery Charger:
1. Comprehensive Safety Certifications:
- Our 16.8V 2A chargers are certified by UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, and CCC, RoHS, ensuring they meet the highest international safety standards and uses environmentally friendly materials.
2. Versatile Input Specifications:
- Input Voltage: Operates within wide AC voltage input 90Vac to 264Vac.
- Rated Input Voltage: Designed for standard 100Vac to 240Vac voltage inputs.
- Input Frequency: Supports a broad frequency range from 47Hz to 63Hz.
- Input Current: 1.3A
- Inrush Current: 60A, protecting the device during power spikes.
3. Advanced Output Features:
LED Dual Color light: Provides clear charging status; red led while charging, green led when fully charge the battery pack.
- Charging Stages:
- Constant Current Stage: 2A fast charging, red LED.
- Constant Voltage Stage: precise 16.8V, red LED.
- Trickle Charge Stage: 0.2A to 0 , green LED.
|
Output |
Charging Stage |
LED Indicator |
|
|
Current |
Voltage |
||
|
2A |
10V-16.8V |
Constant Current |
RED |
|
2A->0.2A |
16.8V |
Constant Voltage |
RED |
|
0.2A->0 |
16.8V |
Trickle Current |
GREEN |
4. Charging Curve
Optimized for 4S 14.4V/14.8V lithium-ion battery packs, providing reliable and efficient charging for a wide range of applications.
5. Protection Features:
- Equipped with over current protection, over voltage protection, short circuit protection, and reverse polarity protection to ensure safe and reliable operation.
6. Quality Assurance and Reliability:
- Our seasoned team of sales engineers has over a decade of experience, ensuring we understand and meet customer needs.
- We implement a rigorous supplier selection and material inspection process.
- Our engineers, with over 20 years of experience, develop robust material solutions.
- Skilled production staff utilize advanced testing equipment, including a 100% aging test under full load conditions for up to 4 hours.
- A responsive after-sales support system addresses issues within 48 hours.

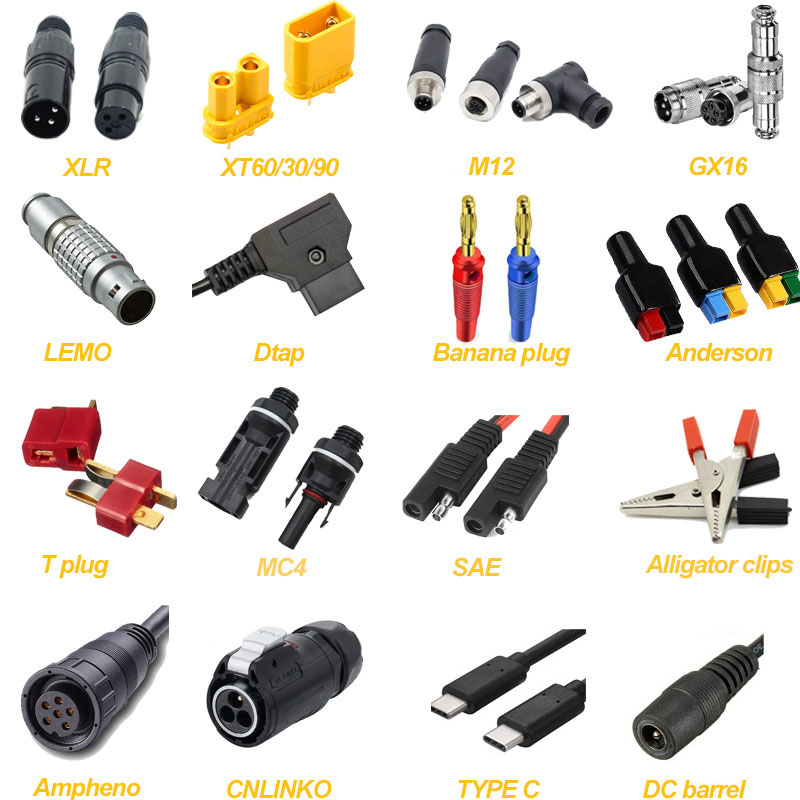

7. Output Connectors:
More About Henryuan Group:
With over 13 years in the industry, Henryuan Group stands out as a leader in the development and production of reliable lithium battery chargers. Our 16.8V 2A li-ion battery chargers are renowned for their superior performance and adherence to safety standards. We proudly serve markets across the Americas, Europe, the UK, Australia, and Asia, providing reliable solutions that meet diverse customer needs.
Whether you need a 16.8V li-ion charger for LED lights, drones, or any other 4s lithium battery powered devices, Henryuan offers a range of models (from 0.5A to 25A) to suit your specific requirements. Reach out to our experienced sales engineers for tailored solutions and expert advice on choosing the best charger for your needs.
More 16.8V Li-ion Charger Links:
Order Your Henryuan 16.8V 2A Lithium-Ion Battery Charger Today!
For more information on our high quality 4S 16.8V 2A lithium battery chargers or to discuss your specific needs, please contact Henryuan's sales engineers today.
