Factory Customized 24V 10A Lithium Ion Battery Charger 29.4V UL CE PSE SAA

Product No.：HRY29410000
Online Inquiry

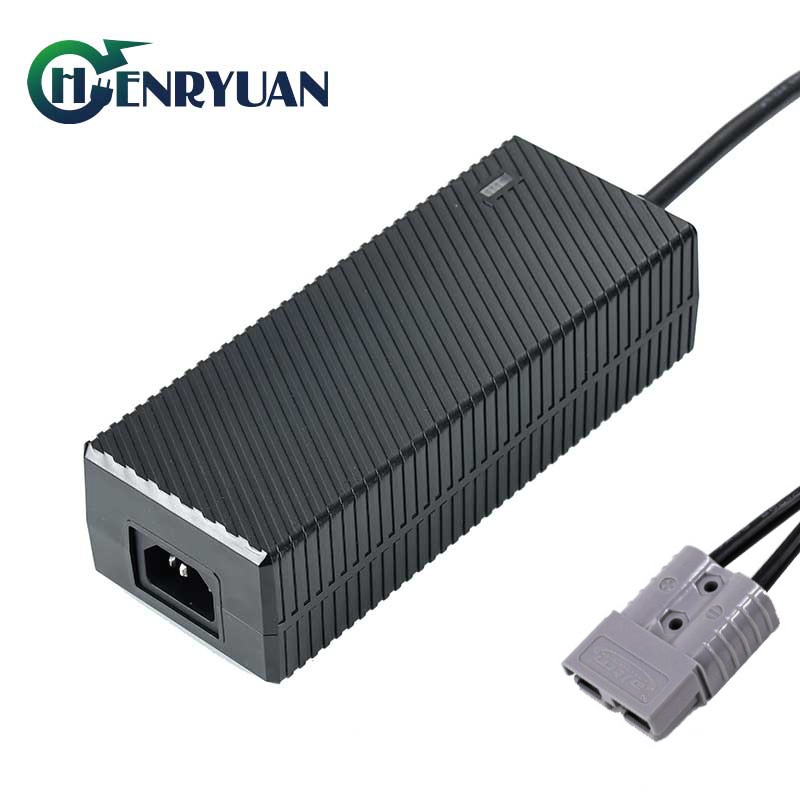

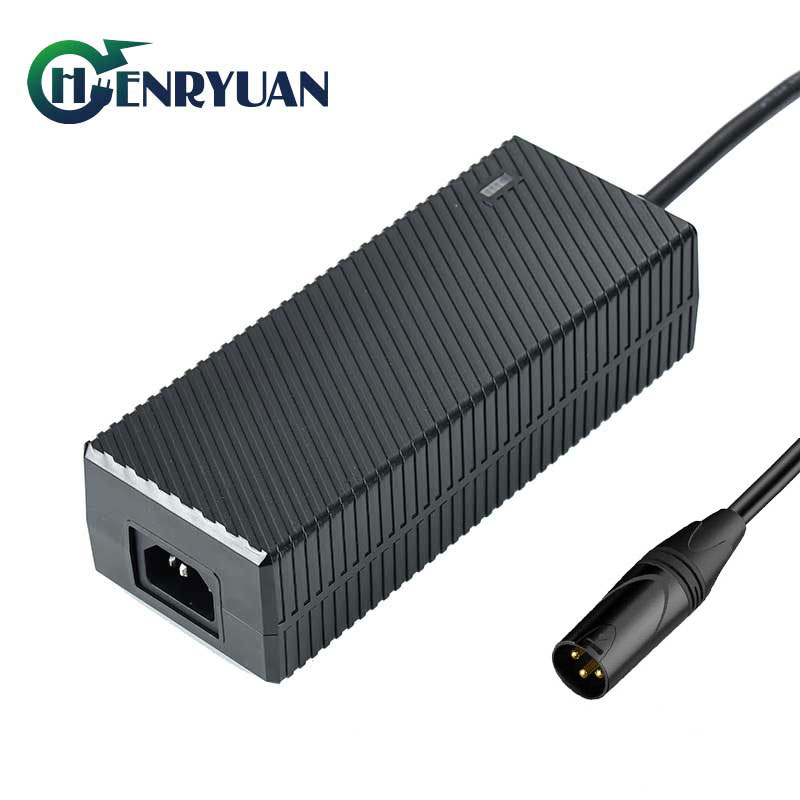

29.4V 10A Lithium Charger

24V 10A Lithium Battery Charger | 29.4V & 24V High-Efficiency Smart Chargers for Li-ion Packs | UL, PSE, CE, SAA, UKCA Approved

Upgrade your lithium ion battery systems with our safety certificationed approved 24V 10A lithium battery charger, engineered for industrial users and tech-savvy consumers. Backed by adaptive CC-CV and float charging algorithms, this charger delivers 90% energy efficiency while shortening the charging time and reducing the temperature rise. Warranty: 3 years!

Key Applications:

Electric Wheelchairs, Electric Outboard Motors.
Robots, Electric Bikes and Scooters.
Communication Base Stations, Studio LED Lights.
Diving Equipments and other 7S 24V lithium battery powered equipments.

Safety Certifications:

Global Certifications:
CB UL, ETL, cUL, FCC, PSE, CE, EMC, LVD, UKCA, SAA, KC, CCC
Environmentally friendly materials, RoHS compliant.

Input Specifications:

Worldwide AC Voltage Range: 100Vac-240Vac
Frequency: 47Hz-63Hz
Current: 5A
Inrush Current: 60A

Output Specifications:

Model: 24V 10A Li-Ion Battery Charger(29.4V)

Recision Voltage Control:29.4V 10A, 294W

LED Indicator: Dual color (Red during charging, Green when fully charged)

Output		Charging Stage	LED Indicator
Output
Current	Voltage
10A	17.5V-29.4V	Constant Current	Red(Charging)
10A->1A	29.4V	Constant Voltage	Red(Charging)
1A->0	29.4V	Trickle Current	Green(Fully charge battery packs)

Charging Stages:

Constant Current: 10A fast charging, LED shows red.

Constant Voltage: 29.4V max, current decreases 10A to 1A, LED shows red.

Trickle Current: 1A to 0, voltage 29.4V max, LED shows green.

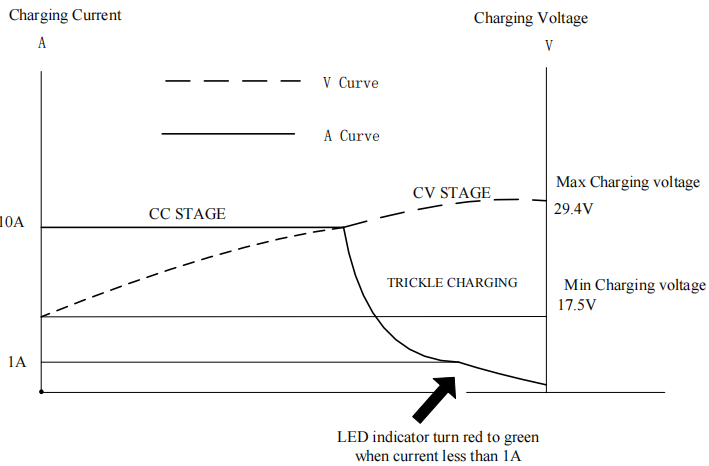

Charging Curve:
Henryuan 24V 10A lithium chargers maintain a reliable and efficient charging curve, protect battery life.

Compact and Portable Design

Its lightweight and compact design makes it easy to carry and store, but powerful
Dimensions: 176 x 80 x 47 MM
Weight: 0.5kg

Multi-Protection System:

Overcurrent Protection
Overvoltage Protection
Short Circuit Protection
Reverse Polarity Protection

Quality Assurance:

Experienced Sales Engineers: Over a decade of expertise in understanding and meeting customer needs.
Rigorous Material Selection: Only top-quality raw materials are used.
Strict Inspection Process: Comprehensive incoming material inspections ensure quality.
Expert Engineers: More than 20 years of design experience.
Skilled Production Team: Advanced production and testing equipment.
Aging Testing: 100% aging testing process, up to 4 hours at full load.
Comprehensive After-Sales Support: Feedback and resolution within 48 hours.

About Henryuan Group:

With over 13 years of experience in the production and R&D of 24V lithium battery chargers, Henryuan Group is a leading industry supplier. Our 24V 10A li-ion battery chargers are globally recognized for their superior performance and safety features. Exported to the Americas, Europe, the UK, Australia, New Zealand, and Asia, they are trusted by consumers worldwide for a variety of applications.

Henryuan 24V Lithium Ion Battery Charger Range:

Various 24V lithium battery chargers with currents 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 6.5A, 7A, 8A, 9A, 10A,15A.

More 24V Lithium Battery Charger Links:

Explore More 24V Lithium Battery Chargers.

Contact Us:

For a safe, reliable, and efficient 24V 10A lithium ion battery charger, contact Henryuan's expert sales engineers today.

Common Li-ion 29.4V AC Charger Models for Projects

Henryuan 29.4V Li-ion Charging Solutions(CB, UL, cUL, FCC, ETL, CE, EMC, UKCA, SAA, PSE, KC, CCC, RoHS)	Model	Input	Output(Voltage/Current)	Output(Power)
	HRY2940300	100-240V ac, 50/60Hz	29.4V 0.3A	8.82W
	HRY2940500		29.4V 0.5A	14.7W
	HRY2941000		29.4V 1.0A	29.4W
	HRY2941200		29.4V 1.2A	35.28W
	HRY2941500		29.4V 1.5A	44.1W
	HRY2942000		29.4V 2.0A	58.8W
	HRY2942500		29.4V 2.5A	73.5W
	HRY2943000		29.4V 3.0A	88.2W
	HRY2944000		29.4V 4.0A	117.6W
	HRY2945000		29.4V 5.0A	147W
	HRY2946000		29.4V 6.0A	176.4W
	HRY2946500		29.4V 6.5A	191.1W
	HRY2947000		29.4V 7.0A	205.8W
	HRY2948000		29.4V 8.0A	235.2W
	HRY2949000		29.4V 9.0A	264.6W
	HRY29410000		29.4V 10.0A	294.0W
	HRY29415000		29.4V 15.0A	441W
	HRY29420000		29.4V 20.0A	588W
	HRY29425000		29.4V 25.0A	735W
