Products >> Lithium Ion Battery Charger >> 16.8V Lithium Ion Battery Charger

16.8V 7A Lithium Ion Battery Charger KC UL cUL SAA CE approved Charger

Product No.：HRY1687000
Online Inquiry

lithium battery 16.8V 7A charger

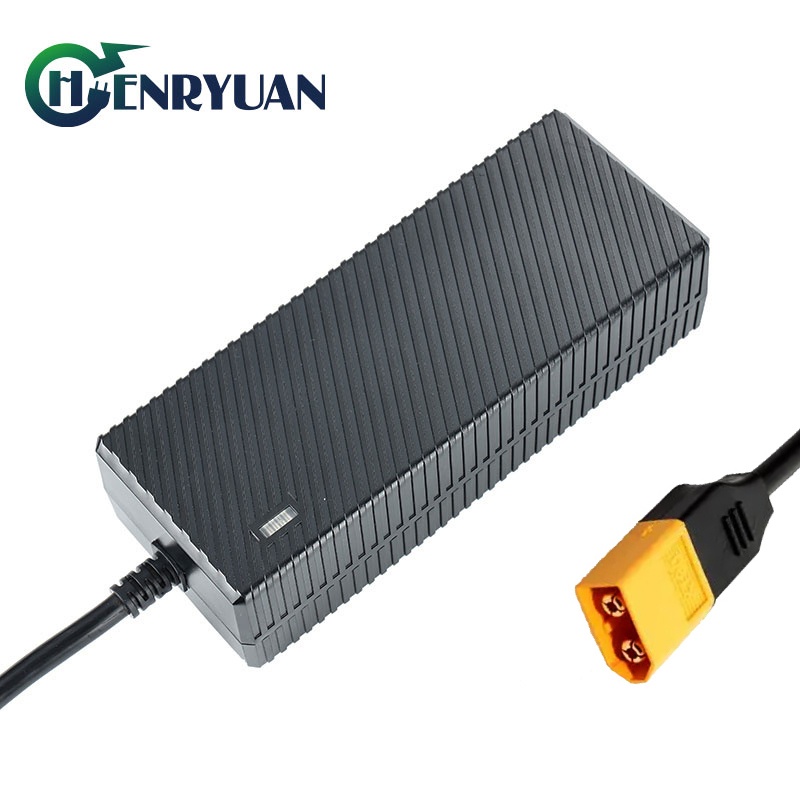

Henryuan High Quality 16.8V 7A Charger For 4S Lithium Battery

Product Description:
16.8V 7A Lithium Battery Charger |16.8V Li-ion Battery Charger | CE, SAA, UKCA, UL, cUL, PSE KC Certificates

Henryuan 16.8V 7A Lithium Battery Charger provides top charging performance for 4s 14.4V/14.8V Li-ion battery powered devices. With safety certificates CB, KC, KCC, CE, EMC, LVD, UL, cUL, PSE, SAA, and FCC, This charger meets the highest safety standards in the global market, ensuring safe and efficient charging.

Key Applications:

Electric Drones, Camera Battery.
Robots, Power Tools.
Studio LED Lights, Communication Base Stations.
Diving Equipments and other 4S lithium battery powered devices.

Safety Certifications:

worldwide certificates
CB, KC, KCC, PSE, CE, EMC, LVD, UL, ETL, cUL, FCC, UKCA, SAA,CCC.
Environmentally friendly materials, RoHS compliant.

Input Details:

Voltage Range: 90Vac-264Vac
Rated Voltage: 100Vac-240Vac
Frequency: 50/60Hz
Current: 3A
Inrush Current: 60A

Output Specifications:

Model: 4S Li-Ion Battery Charger 7A (16.8V)

Power: 117.6W

LED Indicator: Dual color (Red during charging, Green when fully charged)

Output		Charging Stage	LED Indicator
Output
Current	Voltage
7A	10V-16.8V	Constant Current	RED
7A->0.7A	16.8V	Constant Voltage	RED
0.7A->0	16.8V	Trickle Current	GREEN LED turn red to green when fully charge battery packs

Charging Stages:

Constant Current 7A fast charging, LED shows red.

Constant Voltage 16.8V max, current decreases 7A to 0.7A, LED shows red.

Trickle Current 0.7A to 0, voltage 16.8V max, LED shows green.

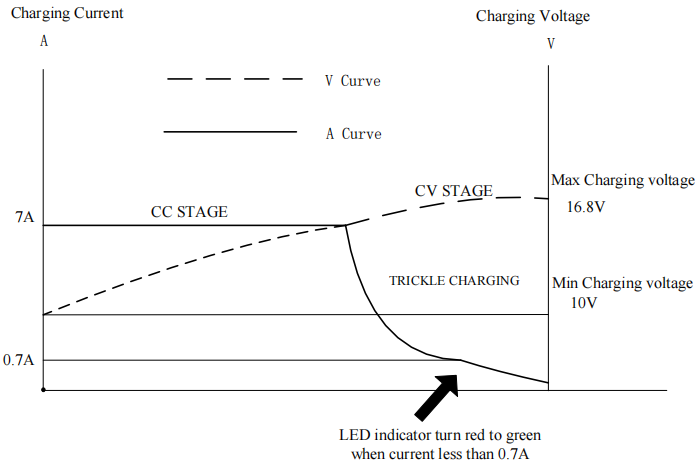

Charging Curve:
Henryuan 16.8V 7A li-ion chargers maintain a reliable and efficient charging curve, protect battery life.

Compact and Portable Design

Its lightweight and compact design makes it easy to carry and store, but powerful
Dimensions: 153 x 60x 39.5 MM
Weight: 0.3kg

Protection Features:

Overcurrent Protection
Overvoltage Protection
Short Circuit Protection
Reverse Polarity Protection

Quality Assurance:

Experienced Sales Engineers: Over a decade of expertise in understanding and meeting customer needs.
Rigorous Material Selection: Only top-quality raw materials are used.
Strict Inspection Process: Comprehensive incoming material inspections ensure quality.
Expert Engineers: More than 20 years of design experience.
Skilled Production Team: Advanced production and testing equipment.
Aging Testing: 100% aging testing process, up to 4 hours at full load.
Comprehensive After-Sales Support: Feedback and resolution within 48 hours.

About Henryuan Group:

With over 13 years of experience in the production and R&D of 16.8V lithium battery chargers, Henryuan Group is a leading charger industry supplier. Our 16.8V 7A li-ion battery chargers are globally recognized for their superior performance and safety features. Exported to the Americas, Europe, the UK, Australia, New Zealand, and Asia, they are trusted by consumers worldwide for a variety of applications.
