  • Quality Portable AC 48V LFP Battery 54.8V 5A LiFePO4 Charger
Quality Portable AC 48V LFP Battery 54.8V 5A LiFePO4 Charger

Quality Portable AC 48V LFP Battery 54.8V 5A LiFePO4 Charger

 54.8V 5A LiFePO4 battery charger

Sealed Plastic Portable 48V LFP Battery Charger | 54.8V 5A LiFePO4 Battery Charger | ETL UL PSE CE SAA UKCA Listed 48V 5A Charger

Henryuan reliable 48V LiFePO4 Battery Charger 54.8V 5A, the high quality SAA ETL UL cUL PSE CE listed 48V 5A LiFePO4 charger, It is used for charging 15s 48V LiFePO4 battery packs. Advanced charging scheme design and multiple protection mechanisms with high quality components that make charging safer and faster.
They are used as the electric scooter charger, electric sktaboard charger, electric outboard motor charger, electric golf cart charger, robot charger
, underwater scooter charger.

Worldwide Safety Certificates:

CB, UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC

AC Input Features:

  • Input Voltage: 90Vac-264Vac
  • Rated Input Voltage: 100Vac-240Vac
  • Input Frequence:47Hz-63Hz
  • Input Current:3A
  • Inrush Current: 60A

Output Specifications:

  • 3 stage reliable 48V LiFePO4 battery trickle charger with output 54.8V 5A.
  • Fast charging constant current 5A, saving charging time, LED shows red.
  • Constant voltage 54.6V, high precision charging voltage ensures charging safety and avoids overcharging, LED shows red.
  • Trickle current 0.5A to 0, low current float charging ensures that the battery is fully charged, LED shows green.

Output

Charging Stage

LED Indicator

Current

Voltage

5A

30V-54.8V

Constant Current

RED

5A->0.5A

54.8V

Constant Voltage

RED

0.5A->0

54.8V

Trickle Current

GREEN
LED turn to green when battery full

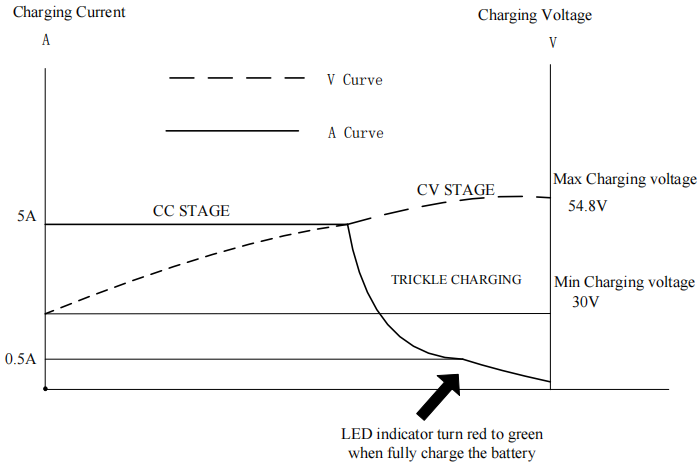

Charging Curve

Advanced charging scheme design makes charging safer.

48V 5A LFP battey charger

Protection mechanisms

Over current protection, Over voltage protection, Short circuit protection, reverse polarity protection

Quality Assurance

  • 1. A team of sales engineers with over a decade of experience, able to accurately understand customer needs
  • 2. A rigorous system for selecting raw material suppliers
  • 3. Strict incoming material inspection process
  • 4. Experienced engineers with material solutions design for more than 20 years
  • 5. Skilled production stuff and advanced production testing equipment
  • 6.100% aging testing process, up to 4 hours of full load aging
  • 7. A comprehensive after-sales system with analysis, feedback, and resolution system within 48 hours

Henryuan Group is a global leader company with more than 13 years of experience in the production and R&D of LiFePO4 battery chargers. Our 48V LiFePO4 battey charger 54.8V 5A has been certificated by CB ETL UL cUL PSE CE UKCA SAA ,those approvals have approved the superior performance and safety features, making it a popular choice among consumers worldwide. They are exported to the Americas, Europe, the United Kingdom, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan and other countries and regions with a high market share.
The charging safely and quickly, making them ideal for a variety of applications. Good EMI performance and experienced engineers are able to perfectly meet customer requirements for existing products or products in the development stage.In short, the high quality 48V 5A  LiFePO4 battery charger is a reliable and efficient solution for your charging needs.
There are other models of 48V LiFePO4 chargers, such as 54.6V 1A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6A, 7A etc. If you are looking for a safe, reliable, and efficient 48V LiFePO4 battery charger, just start by contacting Henryuan's sales engineers.
