  • Advanced 4S LiFePO4 Battery 14.6V 5A Iron Phosphate Battery Charger
Advanced 4S LiFePO4 Battery 14.6V 5A Iron Phosphate Battery Charger

Advanced 4S LiFePO4 Battery 14.6V 5A Iron Phosphate Battery Charger

 LiFePO4 battery 14.6V 5A charger

Sealed Plastic Portable 4S LiFePO4 Battery 14.6V 5A Iron Phosphate Battery Charger | ETL UL PSE CE SAA UKCA Listed LFP 14.6V 5A Charger

Henryuan reliable 12V LiFePO4 Battery Charger 14.6V 5A, the high quality UKCA SAA ETL UL cUL PSE CE listed 14.6V 5A LiFePO4 charger, It is used for charging 4s 12.8V LiFePO4 battery packs. Advanced charging scheme design and multiple protection mechanisms with high quality components that make charging safer and faster.
They are used as the portable power station charger, electric golf trolley charger, robot charger
, LED lighting charger, communication devices charger.

Worldwide Safety Certificates:

CB, UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC

AC Input Features:

  • Input Voltage: 90Vac-264Vac
  • Rated Input Voltage: 100Vac-240Vac
  • Input Frequence:50/60Hz
  • Input Current:1.3A
  • Inrush Current: 60A

Output Specifications:

  • 3 stage reliable 14.6V 5A LiFePO4 battery trickle charger for 4S LFP battery pack
  • Fast charging constant current 5A, saving charging time, LED shows red.
  • Constant voltage 14.6V, high precision charging voltage ensures charging safety and avoids overcharging, LED shows red.
  • Trickle current 0.5A to 0, low current float charging ensures that the battery is fully charged, LED shows green.

Output

Charging Stage

LED Indicator

Current

Voltage

5A

8V-14.6V

Constant Current

RED

5A->0.5A

14.6V

Constant Voltage

RED

0.5A->0

14.6V

Trickle Current

GREEN

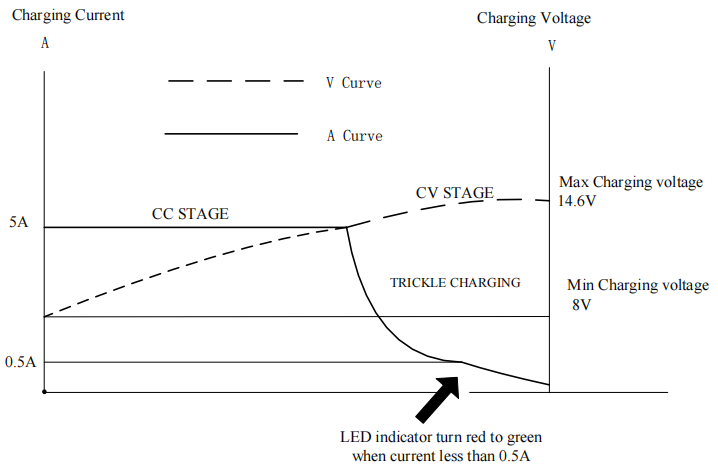

Charging Curve

Advanced charging scheme design makes charging safer for 4S 12.8V LFP battery pack

14.6V 5A Charger

Advanced Protection Mechanisms

Over current protection, Over voltage protection, Short circuit protection, reverse polarity protection

Quality Assurance

  • 1. A team of sales engineers with over a decade of experience, able to accurately understand customer needs
  • 2. A rigorous system for selecting raw material suppliers
  • 3. Strict incoming material inspection process
  • 4. Experienced engineers with material solutions design for more than 20 years
  • 5. Skilled production stuff and advanced production testing equipment
  • 6.100% aging testing process, up to 4 hours of full load aging
  • 7. A comprehensive after-sales system with analysis, feedback, and resolution system within 48 hours

Henryuan Group is a global leader company with more than 13 years of experience in the production and R&D of LiFePO4 battery chargers. Our 12V LiFePO4 battey charger 14.6V 5A has been certificated by CB ETL UL cUL PSE CE UKCA SAA ,those approvals have approved the superior performance and safety features, making it a popular choice among consumers worldwide. They are exported to the Americas, Europe, the United Kingdom, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan and other countries and regions with a high market share.
The charging safely and quickly, making them ideal for a variety of applications. Good EMI performance and experienced engineers are able to perfectly meet customer requirements for existing products or products in the development stage.In short, the high quality 48V 5A  LiFePO4 battery charger is a reliable and efficient solution for your charging needs.
There are other models of 14.6V LiFePO4 chargers, such as 14.6V 0.5A 1A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6A, 7A, 10A, 15A, 20A, 25A etc. If you are looking for a safe, reliable, and efficient 14.6V LiFePO4 battery charger, just start by contacting Henryuan's sales engineers.
