Products >> Lithium Ion Battery Charger >> 54.6V Lithium Ion Battery Charger

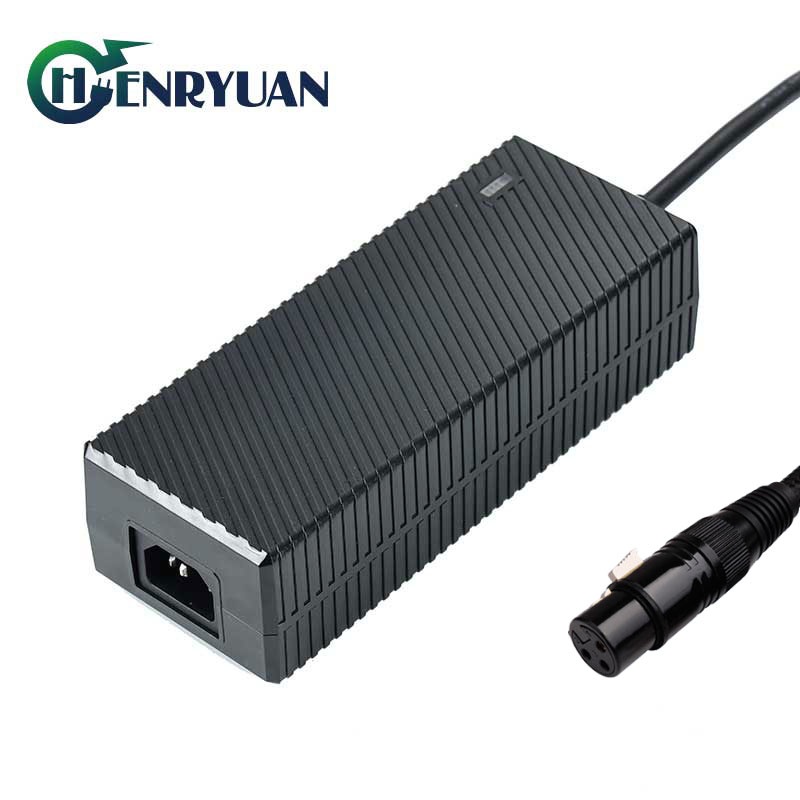

Reliable Portable Lithium 13S 5A Charger 54.6V

Product No.：HRY5465000
Online Inquiry

Li-Ion 13S 5A Charger 54.6V | CE, UL, FCC, PSE, UKCA Listed 13S 5A Charger

Product Description

Henryuan specializes in delivering cutting-edge battery charging solutions that empower industries and consumers alike. Our 13S 54.6V 5A lithium ion chargers are engineered to meet the rigorous demands of high-performance applications, combining reliability, efficiency, and safety. Designed with global certifications and advanced protection features, these chargers are ideal for electric vehicles, electric scooters, golf carts, industrial equipment, renewable energy systems, and more. These 48V 5A chargers are tailored for lithium-ion batteries, delivering a consistent 5A charge current, ensuring rapid and safe energy replenishment.

Key Features and Applications

1. Comprehensive Safety Certifications:

Henryuan 54.6V 4A li-ion chargers adhere to international safety standards, including CE, PSE, UL, ETL, cUL, FCC, UKCA, SAA, TUV, and RoHS certifications. They are tested for electromagnetic compatibility (EMC) and energy efficiency, ensuring compliance with global regulations. This makes them a trusted choice for OEMs and end-users seeking reliable, certified charging solutions.
Multi-Protection Circuitry: Built-in overcharge protection(OVP, OSP), short circuits protection(SCP), and reverse voltage protection(RVP), ensuring longevity and safety.

2. Input Features:

Board Input Voltage: 100Vac-240Vac, enabling global usability.
Frequency: 50/60Hz
Input Current: 5A
Inrush Current: 60A

3. Output Specifications:

Li-Ion 13S Charger Models Available:
- 2A Charger: HRY5462000
- 3A Charger: HRY5463000
- 3.5A Charger: HRY5463500
- 4A Charger: HRY5464000
- 4.5A Charger: HRY5464500
- 5A Charger: HRY5465000
- 6A Charger: HRY5466000
- 7A Charger: HRY5467000
- 7.5A Charger: HRY5467500
LED Indicator: Dual-color LED light indicates charging status: red during charging and green when fully charged.

4. Example of Charging Stages for 13S 5A Charger Model:

Constant Current: 5A, 32.5V-54.6V (Red LED)
Constant Voltage: 5A -> 0.5A, 54.6V (Red LED)
Trickle Charging: 0.5A -> 0, 54.6V (Green LED)

Output		Charging Stage	LED Indicator
Output
Current	Voltage
5A	32.5V-54.6V	Constant Current	Red(Charging)
5A->0.5A	54.6V	Constant Voltage	Red(Charging)
0.5A->0	54.6V	Trickle Current	Green(Fully Charged)

5. Charging Curve, Special Designed 13S 5A Charger For 48V Lithium Ion Batteries.

Smart Charging Algorithms: Adaptive 3-stage charging (CC, CV, float) optimizes battery health and cycle life.

6. Applications:

Manufactured in Henryuan ISO-certified factories, these chargers undergo rigorous testing for shock resistance, temperature extremes, and humidity exposure. The robust construction withstands harsh environments, making them suitable for marine, automotive, and off-grid applications. For instance, the 54.6V 5A Lithium Charger has been deployed in electric tricycles and agricultural machinery,portable power stations and robotics, they are versatile and ideal for various high capacity 48V li-ion battery needs.

7. Advanced Protection Features:

Includes overcurrent protection, overvoltage protection, short circuit protection, and reverse polarity protection to ensure safe and reliable charging.

8. Variety Of Connectors Supported:

9. Quality Assurance:

A skilled team of sales engineers with over a decade of experience
Rigorous raw material selection and inspection process
Experienced engineers with over 20 years in material solutions design
Advanced production testing equipment and processes
100% full-load aging testing for up to 4 hours
Comprehensive after-sales support system with a resolution timeframe of within 48 hours

Advanced Production And Test Instruments

About Henryuan Group

With over ten years of experience in the production and R&D of lithium battery chargers, Henryuan Group is a leading supplier in the charger industry. Our high quality lithium 13S 5A chargers are renowned for their superior performance and safety features, making them a preferred choice among consumers worldwide. We export to the Americas, Europe, the UK, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan, and more.

More 13S Lithium Battery Chargers Links:

Explore More 13S Lithium Battery Chargers.

Contact Us

For a reliable and efficient 13S 5A lithium charger, contact Henryuan's sales engineers today. We offer a range of models, including 54.6V 1A, 1.5A, 2A, 3A, 4A, 5A, 6A, 7A and 7.5A chargers to meet your specific needs.
