Products >> Lithium Ion Battery Charger >> 12.6V Lithium Ion Battery Charger

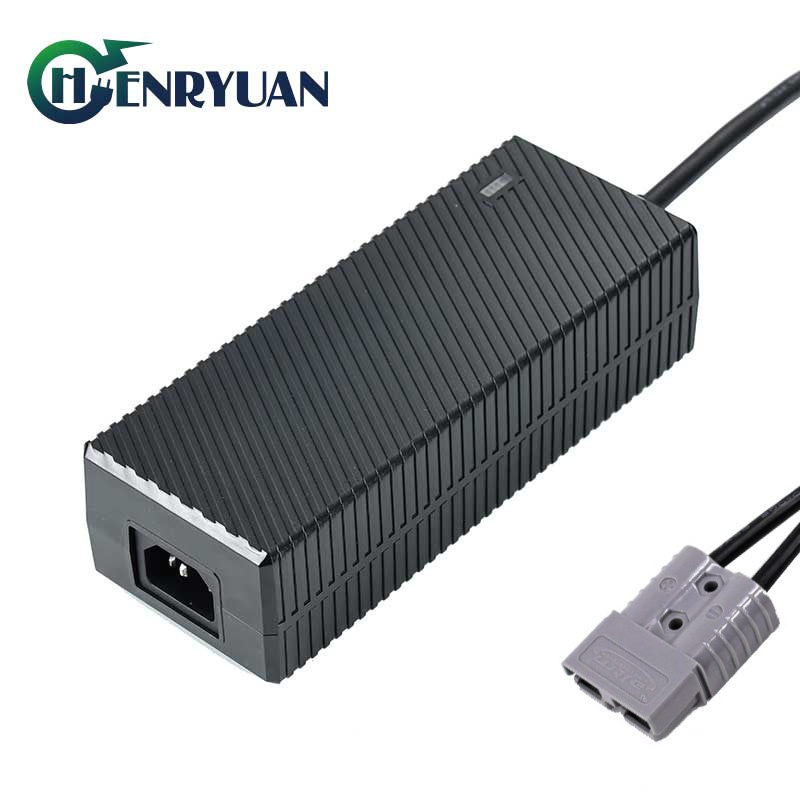

Certified 12V Lithium Battery Charger Trickle 3-Stage 12.6V 20A 25A

Product No.：HRY12620000
Online Inquiry

12V Lithium Battery Charger Trickle 3-Stage 12.6V 20A 25A| CE, UL, FCC, PSE, UKCA Listed 3S Charger

Product Description

Henryuan high quality 3S lithium battery charger 12V 20A 25A charger is a top-tier charging solution designed for 12V li-ion batteries. This portable 12V lithium battery charger is engineered with advanced safety mechanisms: over current protection, over voltage protection, short circuit protection and reverse voltage protection.The advanced design and high quality components make sure a efficient and safe charging for various 12V lithuim ion battery powered devices.

Key Features and Applications

1. Comprehensive Safety Certifications:

Our lithium battery chargers 12V meet global safety standards with certifications from ETL, cUL, TUV, CE, PSE, FCC, EMC, LVD, UKCA, SAA and RoHS.

2. Input Specifications:

Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Frequency: 50/60Hz
Input Current: 5A
Inrush Current: 60A

3. Output Features:

Li-Ion 3S Charger Models Available:
- 5A Charger: HRY1265000
- 10A Charger: HRY12610000
- 15A Charger: HRY12615000
- 20A Charger: HRY12620000
- 25A Charger: HRY12625000
- 28A Charger: HRY12628000
LED Indicator: Dual-color LED light indicates, LED light turn red to green when the battery is fully charged.

4. Example of Charging Stages For Lithium Battery Charger 12V 20A Model:

Constant Current: 20A, 7.5V-12.6V (Red LED)
Constant Voltage: 20A -> 2A, 12.6V (Red LED)
Trickle Charging: 2A -> 0, 12.6V (Green LED)

Output		Charging Stage	LED Indicator
Output
Current	Voltage
20A	7.5V-12.6V	Constant Current	RED
20A->2A	12.6V	Constant Voltage	RED
2A->0	12.6V	Trickle Current	GREEN LED turn red to green when fully charge batteries

5. Charging Curve, Special Designed 3S 20A Charger For 12V Lithium Ion Batteries.

6. Applications:

Perfect for charging portable power station, robots, electric scooters, e-bikes, and golf carts. These chargers are versatile and ideal for various high capacity 12V li-ion battery needs.

7. Advanced Protection Features:

Includes overcurrent protection, overvoltage protection, short circuit protection, and reverse polarity protection to ensure safe and reliable charging.

8. Variety Of Connectors Supported:

9. Quality Assurance:

A skilled team of sales engineers with over a decade of experience
Rigorous raw material selection and inspection process
Experienced engineers with over 20 years in material solutions design
Advanced production testing equipment and processes
100% full-load aging testing for up to 4 hours
Comprehensive after-sales support system with a resolution timeframe of within 48 hours

Advanced Production And Test Instruments

About Henryuan Group

With over ten years of experience in the production and R&D of lithium battery chargers, Henryuan Group is a leading supplier in the charger industry. Our high quality lithium battery chargers 12V 12.6V 20A 25A are renowned for their superior performance and safety features, making them a preferred choice among consumers worldwide. We export to the Americas, Europe, the UK, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan, and more.

Explore More 12V Lithium Battery Chargers.

Contact Us

For a reliable and efficient 12V lithium battery charger 12.6V 20A 25A , contact Henryuan's sales engineers today. We offer a range of models, including 12.6V 0.5A, 1A, 1.5A, 2A, 3A, 4A, 5A, 10A, 15A, 20A, 25A, 28A chargers to meet your specific needs.
