Products >> Lithium Ion Battery Charger >> 29.4V Lithium Ion Battery Charger

Henryuan Super Quality 7S Lithium Ion Battery 24V 10A Charger

Product No.：HRY29410000
Online Inquiry

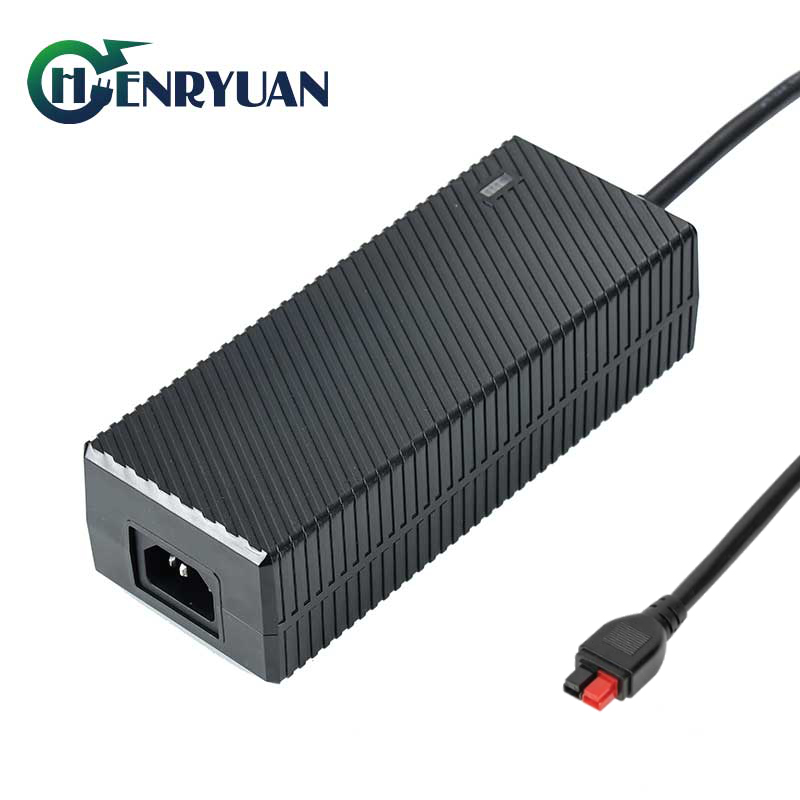

24V 10A Lithium Battery Charger

Henryuan Super Quality 7S Lithium Ion Battery 24V 10A Charger | 29.4V 10A Output

Henryuan 24V 10A Lithium Battery Charger stands out as a cutting-edge device engineered to meet the demands of modern energy storage systems. Whether you're powering electric vehicles, solar energy setups, or industrial equipment, this 7S lithium ion charger delivers precision, safety, and efficiency in every charge cycle.
Key Applications:

Electric Marine, Electric Outboard Motors.
Robots, Electric Bikes, Wheelchairs, Scooters.
Communication Base Stations, Studio LED Lights.
Diving Equipments and other 7S 24V li-ion battery powered equipments.

Main Features of Henryuan 24V 10A Charger
Intelligent 3-Stage Charging:

This 24V 10A lithium battery charger uses a three-stage (constant current, constant voltage and trickle) charging algorithm to maximize battery life and improve efficiency.

High Compatibility:

AC voltage 100-240V, 50/60Hz input, with worldwide compatibility

Safety First:

Built-in overvoltage(OVP), overcurrent(OCP), short circuit(SCP) and reverse voltage protection(RVP) functions ensure the life of the charger and connected batteries, thereby avoiding overcharging risks.

User-Friendly:

Simple operation and simple charging status indicator (charging, LED lights red. Fully charged, LED lights green)

Global Safety Certifications:

CB, CE, EMC, LVD, GS, SAA, UL, ETL, cUL, FCC, PSE, CE, SAA, KC, CCC
Environmentally friendly materials, RoHS compliant.

Technical Specifications

Input Voltage: 100-240V AC, 50/60Hz
Output Voltage: 29.4V(Standard charging voltage of 7s lithium battery, can be customized)
Max Output Current: 10A
Dimensions: 176 x 80 x 46mm
Weight: 0.5kg
DC Output Plugs: XLR, Anderson, XT60, GX16, support customization.

Output		Charging Stage	LED Indicator
Output
Current	Voltage
10A	17.5V-29.4V	Constant Current	Red(Charging)
10A->1A	29.4V	Constant Voltage	Red(Charging)
1A->0	29.4V	Trickle Current	Green(Full)

24V 10A Lithium Ion Intelligent Charging Curve:
Henryuan high quality 24V 10A li-ion battery chargers maintain a efficient and reliable charging curve.

24V 10A lithium battery charger charging curve

Why Choose Henryuan 29.4V 10A Charger for Your 24V Lithium Ion Battery?

Engineer‑grade reliability: Designed and produced by Henryuan experts since 2012.
Full certifications list: Meets global export requirements—CE, EMC, UL, FCC, cUL, PSE, SAA, UKCA, CCC, RoHS.
Rigorous quality control: Every lithium ion battery charger from Henryuan undergoes 4‑hour full‑load aging test.
Global supply chain: Exports to North America, Europe, UK, Australia, NZ, Japan, Korea.etc
3-year warranty and dedicated customer support

Technical Specifications Overview:

Parameter	Details
Input Voltage	AC 100-240V, 50/60Hz (universal compatibility)
Output	29.4V 10A Charger For 24V 7S Lithium Ion Battery
Charging Mode	3-stage (CC/CV/Trickle)
Compatibility	7S Lithium Ion Batteries (25.9V nominal)
Protection Features	OVP, OCP, SCP, Reverse Voltage Protection
LED Indicators	Red (Charging), Green (Fully Charged)
Certifications	CB, UL, ETL, CE, cUL, FCC, PSE, SAA, UKCA, CCC, GS

About Henryuan Group:

With over 13 years of experience in the production and R&D of lithium battery chargers, Henryuan Group is a leading 24V lithium battery charger supplier. Our 24V 10A li-ion battery chargers are globally recognized for their superior performance and safety features. Exported to the Americas, Europe, the UK, Australia, New Zealand, and Asia, they are trusted by consumers worldwide for a variety of applications.

Henryuan 24V Lithium Battery Charger Range:

Various 24V lithium battery chargers with currents 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 6.5A, 7A, 8A, 9A, 10A,15A.
