Products >> Lithium Ion Battery Charger >> 29.4V Lithium Ion Battery Charger

Portable Ultra Charger 7S 24V 15A Lithium Battery Charger

Product No.：HRY29415000
Online Inquiry

24V 15A Lithium Battery Charger

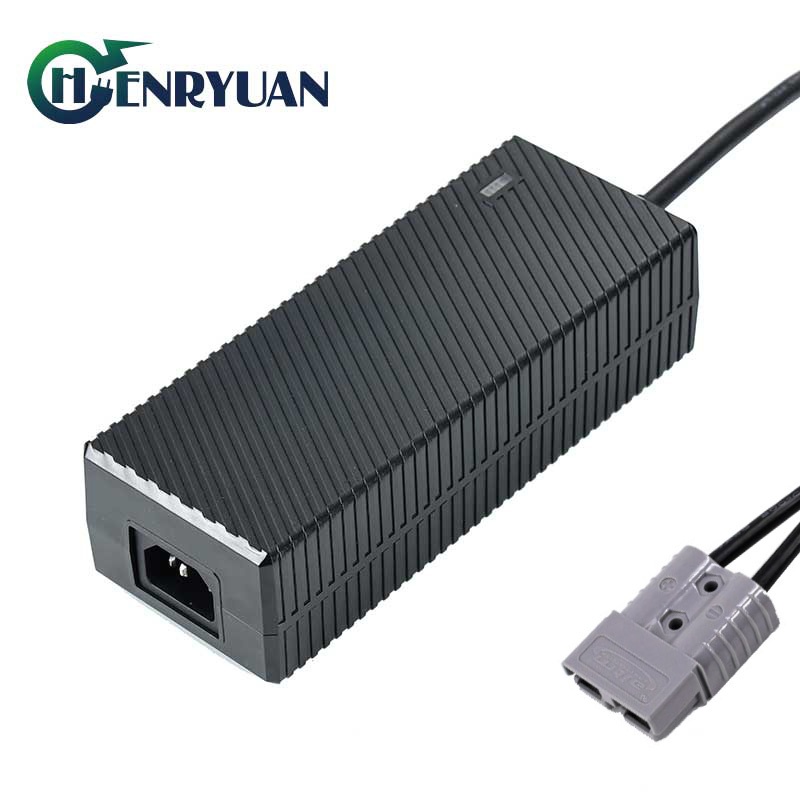

Henryuan Portable Ultra 7S 24V 15A Lithium Battery Charger | 29.4V 15A Output

Product Description:

Henryuan 29.4V 15A Lithium Battery Charger For 24V Li-Ion Battery Pack | UL, ETL, PSE, CE, SAA, UKCA Approved
Henryuan high quality portable 24V 15A lithium battery charger provides perfect charging performance for a variety of 24V li-ion batteries with global certificates CB, CE, EMC, LVD, GS, UKCA, UL, PSE, SAA and FCC, this 24V 15A li-ion charger is built to meet the highest safety standards for global markets, ensuring efficient and safe charging.

Key Applications:

Electric Marine, Electric Outboard Motors.
Robots, Electric Bikes, Wheelchairs, Scooters.
Golf Cart, Studio LED Lights.
Diving Equipments and other 7S 24V li-ion battery powered equipments.

Safety Certifications:

Worldwide certifications
CB, CE, EMC, LVD, GS, SAA, UL, ETL, cUL, FCC, PSE, CE, SAA, KC, CCC
Environmentally friendly materials, RoHS compliant.

Input Features:

Voltage Range: 90Vac-264Vac
Rated Voltage: 100Vac-240Vac
Frequency: 50/60Hz
Current: 5A
Inrush Current: 60A

Output Specifications:

Model: 24V 15A lithium battery charger (29.4V)

LED Indicator: Dual color (Red during charging, Green when fully charged)

Output		Charging Stage	LED Indicator
Output
Current	Voltage
15A	17.5V-29.4V	Constant Current	RED
15A->1.5A	29.4V	Constant Voltage	RED
1.5A->0	29.4V	Trickle Current	GREEN LED turn red to green when fully charge battery packs

Charging Stages:

Constant Current: 15A fast charging, LED shows red.

Constant Voltage: 29.4V max, current decreases 15A to 1.5A, LED shows red.

Trickle Current: 1.5A to 0, voltage 29.4V max, LED shows green.

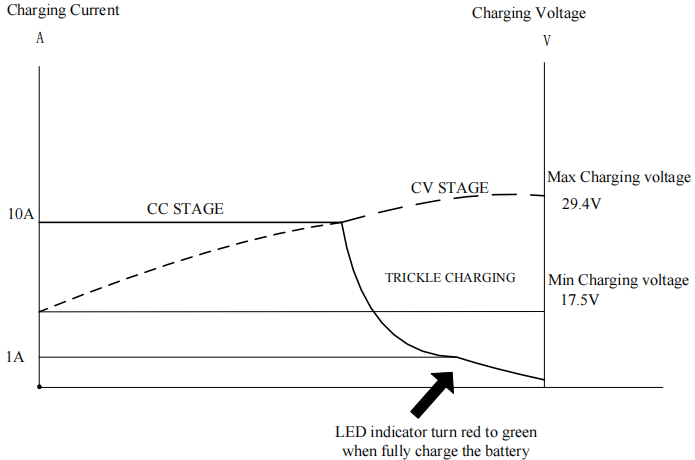

Charging Curve:

Henryuan high quality 24V 15A lithium battery chargers maintain a efficient and reliable charging curve.

Compact and Portable Design

Its lightweight and compact design makes it easy to carry and store, but powerful
Weight: 1.2kg

Protection Features:

Overcurrent Protection
Overvoltage Protection
Short Circuit Protection
Reverse Polarity Protection

Quality Assurance:

Experienced Sales Engineers: Over a decade of expertise in understanding and meeting customer needs.
Rigorous Material Selection: Only top-quality raw materials are used.
Strict Inspection Process: Comprehensive incoming material inspections ensure quality.
Expert Engineers: More than 20 years of design experience.
Skilled Production Team: Advanced production and testing equipment.
Aging Testing: 100% aging testing process, up to 4 hours at full load.
Comprehensive After-Sales Support: Feedback and resolution within 48 hours.

Professional Production Equipments

About Henryuan Group:

With over 13 years of experience in the production and R&D of lithium battery chargers, Henryuan Group is a leading 24V lithium battery charger supplier. Our 24V 15A lithium battery chargers are globally recognized for their superior performance and safety features. Exported to the Americas, Europe, the UK, Australia, New Zealand, and Asia, they are trusted by consumers worldwide for a variety of applications.
