High End 60V 20Ah Lithium Battery Charger For Electric Bike, Tricycle

Product No.：HRY6726000
Online Inquiry

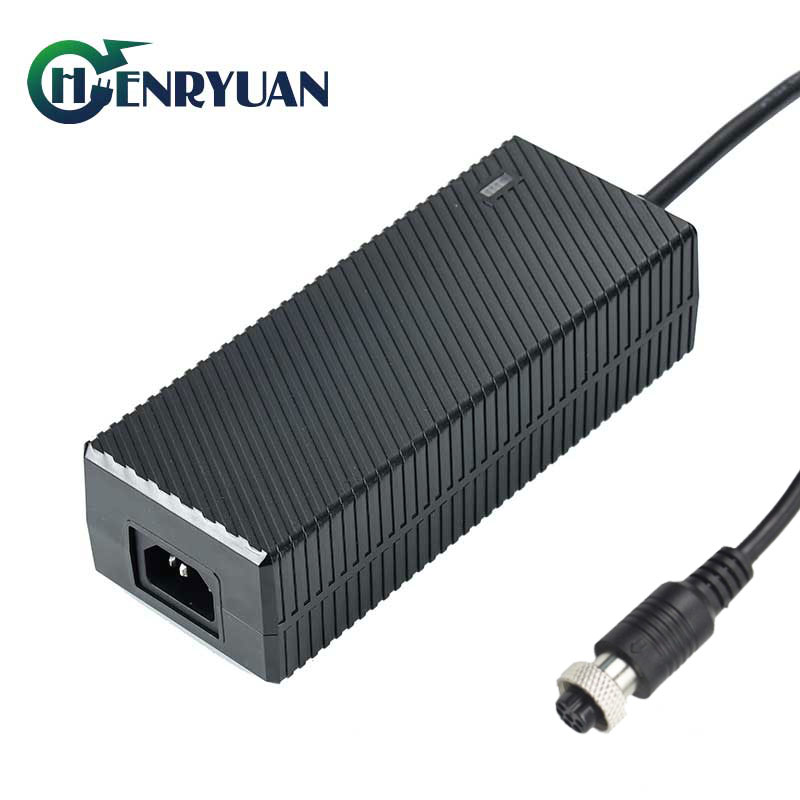

60V 20Ah Lithium Battery Charger

Henryuan High End 60V 20Ah Lithium Battery Charger | 67.2V 3A 4A 5A 6A Output

Henryuan high 60V 20Ah lithium battery charger provides perfect charging performance for a variety of 16S 60V li-ion battery powered devices with worldwide certificates CB, CE, EMC, LVD, GS, UKCA, UL, PSE, SAA and FCC, this 60 volt lithium battery charger is built to meet the highest safety standards for global markets, ensuring efficient and safe charging. Perfect charging solutions for electric biks, electric scooters, electric tricycles.

Key Applications:

Electric Boats, Electric Outboard Motors.
Robots, Electric Bikes, Wheelchairs, Scooters.
Electric Tricycles and other 16S 60V li-ion battery powered equipments.

Safety Certifications:

Worldwide certifications
CB, GS, SAA, UL, ETL, cUL, FCC, CE, EMC, LVD, PSE, CE, SAA, KC, CCC
Environmentally friendly materials, RoHS and Reach compliant.

Input Features:

Voltage Range: 90Vac-264Vac
Rated Voltage: 100Vac-240Vac
Frequency: 50/60Hz
Current: 5A
Inrush Current: 60A

Output Specifications:

Model: 60V 20Ah lithium battery charger (67.2V)

Power: 400W

LED Indicator: Dual color (Red during charging, Green when fully charged)

Output		Charging Stage	LED Indicator
Output
Current	Voltage
6A	40V-67.2V	Constant Current	RED
6A->0.6A	67.2V	Constant Voltage	RED
0.6A->0	67.2V	Trickle Current	GREEN LED turn red to green when fully charge battery packs

Charging Stages:

Constant Current: 6A fast charging, LED shows red.

Constant Voltage: 67.2V max, current decreases 6A to 0.6A, LED shows red.

Trickle Current: 0.6A to 0, voltage 67.2V max, LED shows green.

Charging Curve:

Henryuan reliable 60V 20Ah li-ion battery chargers maintain a efficient and reliable charging curve(67.2V 6A).

Compact and Portable Design

Its lightweight and compact design makes it easy to carry and store, but powerful
Dimensions: 245 x 105 x 59 MM
Weight: 1kg

Protection Features:

Overcurrent Protection
Overvoltage Protection
Short Circuit Protection
Reverse Polarity Protection

Quality Assurance:

Experienced Sales Engineers: Over a decade of expertise in understanding and meeting customer needs.
Rigorous Material Selection: Only top-quality raw materials are used.
Strict Inspection Process: Comprehensive incoming material inspections ensure quality.
Expert Engineers: More than 20 years of design experience.
Skilled Production Team: Advanced production and testing equipment.
Aging Testing: 100% aging testing process, up to 4 hours at full load.
Comprehensive After-Sales Support: Feedback and resolution within 48 hours.

Professional Production Equipments

About Henryuan Group:

With over 13 years of experience in the production and R&D of lithium battery chargers, Henryuan Group is a leading 60V lithium battery charger supplier. Our 60V li-ion battery chargers are globally recognized for their superior performance and safety features. Exported to the Americas, Europe, the UK, Australia, New Zealand, and Asia, they are trusted by consumers worldwide for a variety of applications.

Henryuan 60V Lithium Battery Charger Range:

Various 60V lithium battery chargers with currents 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 6..25A. The China high quality 60V 20Ah li-ion battery charger supplier.
