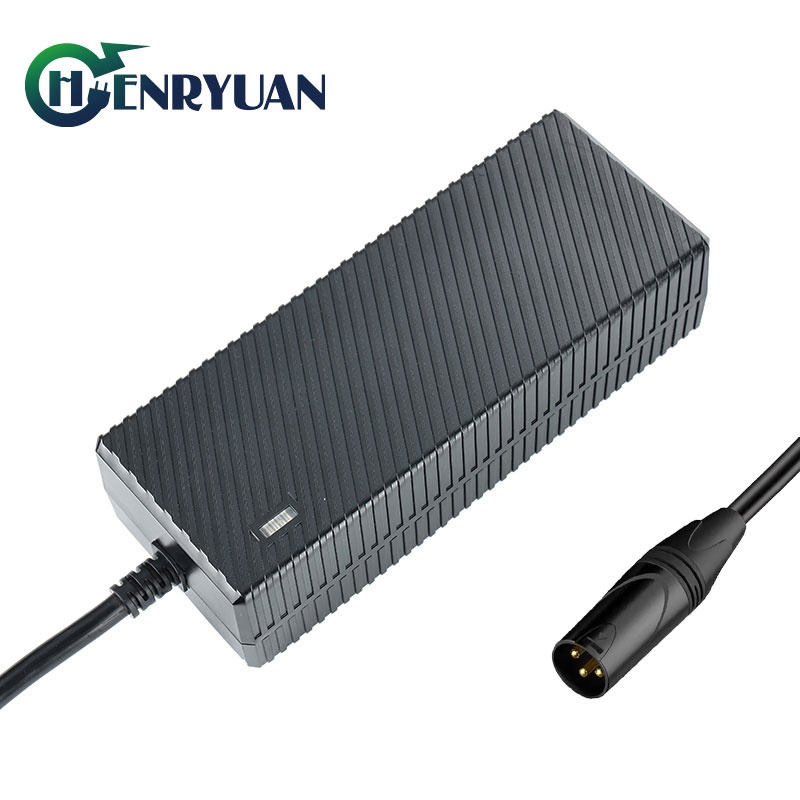

Global Certificates 54.6V 4A Charger 13S 48V Lithium Battery Charger

Product No.：HRY5464000
Online Inquiry

Henryuan-54.6V-4A-13S-48V-lithium-battery-charger-CE-SAA-UKCA-UL-listed

High-Performance 54.6V 4A Li-ion Charger for 48V Systems

Product Description:

Henryuan 54.6V 4A Lithium-ion Charger is the ideal mid-speed charging solution for high-demand 48V 13S lithium battery systems. Engineered to minimize downtime without compromising cell integrity, the 4A output provides a balance of speed and longevity. This charger employs a precise 3-stage CC/CV/Trickle intelligent charging algorithm that strictly adheres to Li-ion charging protocol. It is indispensable for applications requiring consistent power.
Applications:

Electric Motorcycles & Marine Propulsion: Works flawlessly as a fast 54.6V 4A electric marine motor charger, keeping long-range consumer and commercial commuters active with minimized staging downtime.
eBike & Scooter : Highly optimized as a reliable e-bike 48V 4A smart charger, providing tight constant-voltage regulation (54.6V ±0.2V) that prevents cell strain during heavy multi-vehicle cycles.
Autonomous Mobile Robots & Industrial AMRs: Ideal for factory automation, serving as an intelligent 54.6V 4A charger for autonomous mobile robots requiring fanless, dirt-immune natural cooling.

Key Features of the Henryuan 54.6V 4A Lithium-Ion Battery Charger: Global Safety and Precision

Unmatched Global Certification: Certified by 12+ standards, ensuring immediate compliance for global deployment: North America (UL/cUL/FCC), Europe (CE/GS/UKCA), and Asia-Pacific (PSE/SAA/KC).
Precision CC/CV Control: Precise voltage control 54.6V (±0.2V), protecting the 13S pack from damaging overcharge.
High Efficiency & Low Heat: Built with advanced switching technology, achieving >90% energy efficiency, which translates to lower operating temperature and extended charger lifespan.
Robust Environmental Compliance: Fully compliant with RoHS and REACH directives, utilizing environmentally friendly materials for global market acceptance.

Technical Specifications:

Charging Specifications (54.6V4A Charger)

Input Voltage Range: 90Vac−264Vac (Universal)

Input Current: 3A Max

Output: 4Amp. 54.6VDC

Weight/Design: 0.5kg, Compact and portable design for easy integration.

Output		Charging Stage	LED Indicator
Output
Current	Voltage
4A Fixed	32.5V-54.6V	Constant Current	Red (Charging)
4A->0.4A	54.6V Max	Constant Voltage	Red (Charging)
0.4A->0	54.6V	Trickle Current	Green (Fully charged)

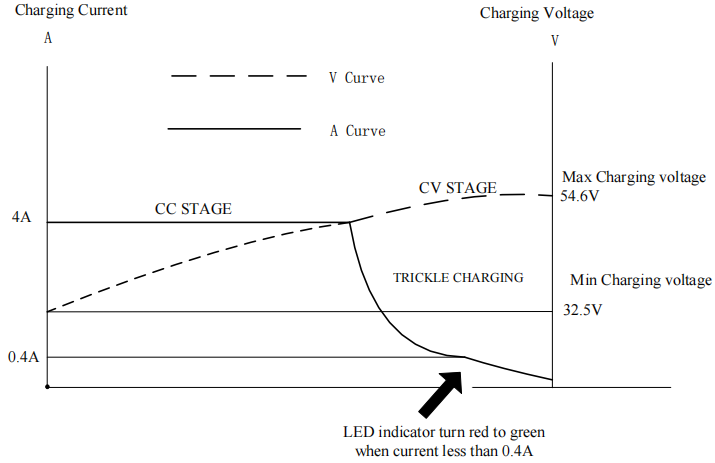

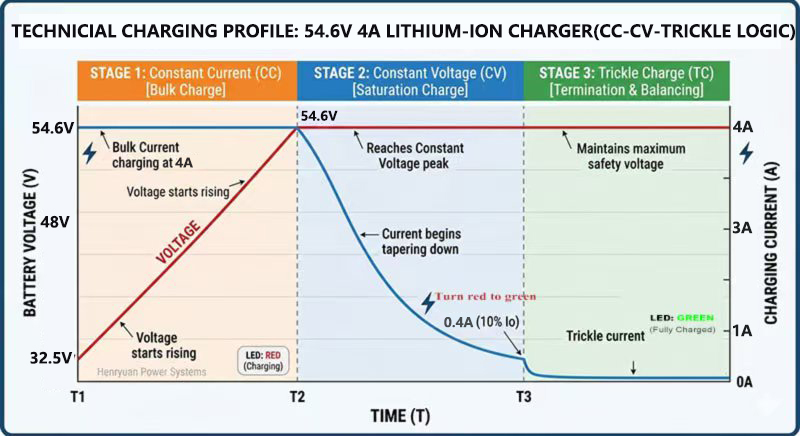

Charging Curve:

This 54.6V 4A charger maintains an efficient and reliable charging curve that maximizes battery life and performance. It ensures safe charging by gradually transitioning from constant current to constant voltage and finally to trickle charge, with the LED indicators signaling stage.

3-stage-CC-CV-trickle-54.6V-4A-lithium-smart-charging-matrix

Built-in Protection Features:

Henryuan 54.6V 4A lithium-ion charger is equipped with the following safety protections:

Overcurrent Protection
Overvoltage Protection
Short Circuit Protection
Reverse Polarity Protection

Why Henryuan is the Trusted 48V Charger Partner?

Deep Expertise: 13+ years specializing in Li-ion charger R&D for electric vehicle and industrial applications.
Rigorous Quality Control: 4 hours of 100% full load aging tests performed on every unit to verify thermal and load stability.
Experienced Engineering: 20+ years of design experience ensuring material reliability and optimal performance.
Wide Current Range: We offer customized 54.6V chargers with currents from 0.5A to 7.5A, catering to both standard and ultra-fast charging needs.

Professional Production Equipments:

About Henryuan Group:

Henryuan is a trusted global supplier recognized for superior performance and safety features in 48V charging.

Need a reliable, globally certified 54.6V 4A Li-ion charger for your eBike or industrial fleet? Explore our full range and contact our expert sales engineers today. Henryuan Group, the professional 54.6V 4A charger manufacturer.

More 54.6V Lithium Battery Charger Links:

Explore More 54.6V Lithium Battery Chargers.

Customer Five-star reviews:

Q&A:

Q: What are the key specifications of the Henryuan 54.6V 4A charger?
A: Henryuan 54.6V 4A charger is specifically designed for 13S (48V) Lithium-ion battery packs. It features a precise CC-CV-Trickle Current charging logic to ensure maximum battery life and safety. With a high output of 4A, it offers fast and efficient charging while maintaining global safety standards (UL, cUL, ETL, UKCA, CCC, PSE, CE, FCC, SAA, KC).

Q: Is this 54.6V charger compatible with 48V E-bike batteries?
A: Yes. A 48V lithium-ion battery pack typically consists of 13 cells in series (13S). The maximum fully charged voltage for these packs is 54.6V. Therefore, the Henryuan 54.6V 4A charger is the ideal professional-grade solution for 48V e-bikes, electric scooters, and other mobility devices using 13S Li-ion technology.

Q: What safety certifications does the Henryuan 13S battery charger hold?
A: Henryuan prioritizes safety for global markets. This charger is fully certified under:
UL & ETL for North America, CE & GS for Europe, UKCA for the United Kingdom, SAA for Australia, PSE for Japan and KC for South Korea. These certifications ensure the charger meets rigorous fire safety and electromagnetic compatibility standards.

Q: How does the 3-stage charging logic benefit the battery?
A: Unlike basic power adapters, Henryuan chargers use a sophisticated 3-stage charging process:
Constant Current (CC): Rapidly charges the battery to about 80% capacity.
Constant Voltage (CV): Slowly tops off the battery to 100% while reducing current to prevent overheating.
Trickle Current: maintains a tiny maintenance charge to ensure the battery is perfectly balanced and safe to use.

Q: Can I customize the output connector for my specific device?
A: Absolutely. Henryuan offers extensive OEM/ODM customization. While the standard model might feature common plugs, we can provide specialized connectors including DC 5.5*2.1mm, XLR (3-pin), XT60, XT90, Anderson connectors, or aviation plugs to match your specific application, whether it's for robotics, AGVs, or electric vehicles.

Henryuan 54.6V Lithium-Ion Battery Charger Range:

Henryuan 54.6V lithium chargers (CB, UL, cUL, FCC, ETL, CE, EMC, UKCA, SAA, PSE, KC, CCC, RoHS)	Model	Input	Output
	HRY5461000		54.6V 0.5A 27.3W
	HRY5461000	100-240Vac, 50/60Hz	54.6V 1.0A 54.6W
	HRY5461200		54.6V 1.2A 65.52W
	HRY5461500		54.6V 1.5A 81.9W
	HRY5462000		54.6V 2.0A 109.2W
	HRY5462500		54.6V 2.5A 136.5W
	HRY5463000		54.6V 3.0A 163.8W
	HRY5463500		54.6V 3.5A 191.1W
	HRY5464000		54.6V 4.0A 218.4W
	HRY5465000		54.6V 5.0A 273W
	HRY5466000		54.6V 6.0A 327.6W
	HRY5466250		54.6V 6.5A 354.9W
	HRY5467000		54.6V 7.0A 382.2W
	HRY5467500		54.6V 7.5A 409.5W
	HRY5468000		54.6V 8.0A 436.8W
	HRY5469000		54.6V 9.0A 491.4W
	HRY54610000		54.6V 10.0A 546W
