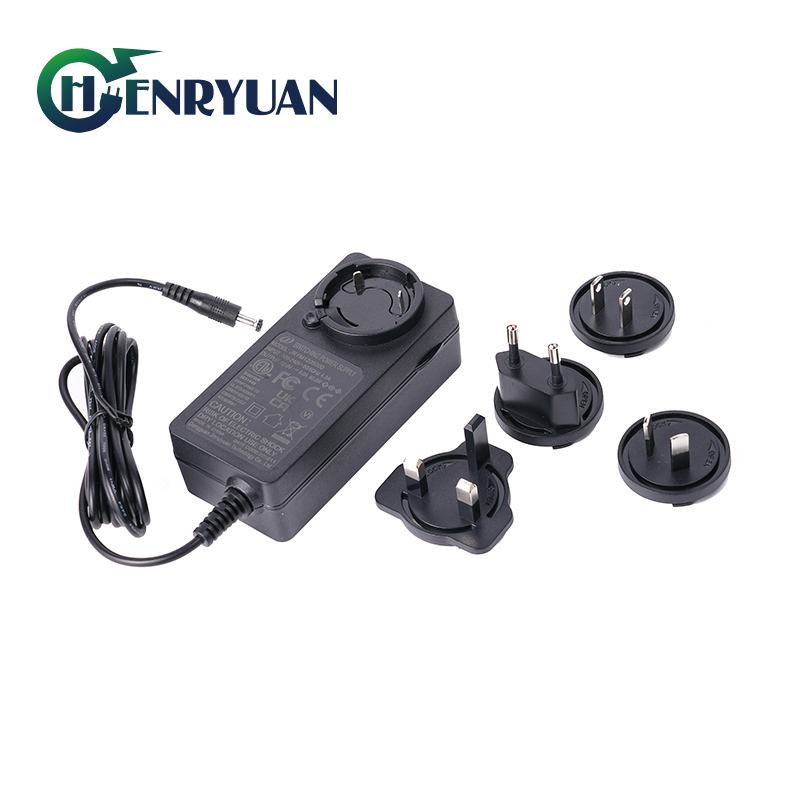

12V 2A Power Adapter - High-Efficiency Switching Power Supply CE PSE UKCA SAA UL cUL Approved

Henryuan 12V 2A AC DC switching power supply with EU, US, AU, UK, CN JP wall ac plugs: Universal input (100-240V), low ripple (<100mVp-p), high efficiency DOE Level VI and multiple protections(OCP, OVP, SCP and hiccup protection). Ideal for CCTV, routers, water purifier and other consumer electronics.

Henryuan 12V 2A Adapter Features and Specifications

• Universal voltage: AC 100-240V, frequency 50/60Hz (compatible with various countries' grids).

• Low power consumption design: No-load power consumption ≤0.1W, meeting energy-saving requirements.

• Direct current output: rated 12V/2A (24W).

• High efficiency: conversion efficiency reaches more than 86.2%.

• Low ripple noise: ≤100mVp-p, ensuring stable device operation.

• Essential protections: short circuit protection (SCP), overcurrent protection (OCP), overvoltage protection (OVP).

• Other protections: Hiccup protection, the function will automatically recover after the fault is removed, low leakage current (≤0.25mA).

Certifications

• UL, ETL, cUL, FCC, PSE, CE, EMC, LVD, UKCA, SAA, KC, CCC, RoHS
• Compliance with IEC standards: 60950, 62368, 61558, 60335
• DOE Level VI efficiency

Typical Applicable Devices

• Consumer electronics: LCD TVs, digital cameras, mobile phone chargers.

• Network/security: routers, CCTV monitoring systems.

• Industrial equipment: small household appliances and safety devices requiring high stability power supply.

Why Choose Henryuan 12V 2A AC DC Adapter For Your Devices?

•
• Experienced manufacturer provide OEM and ODM services, supporting multiple country certifications such as CCC/UL/cUL/CE/PSE/SAA/UKCA/FCC.
• Quality Control: Use branded components (MOSFET, capacitors, etc.), pass EMC/EMI tests, and reliability verification such as aging and drop tests.
• Logistics Options: DHL/UPS global express delivery (3-7 working days to Europe and the US).

Henryuan Profile:

With over 13 years of expertise, Henryuan Group leads in switching power supply production and R&D.
Our 12V 2A adapters are renowned for performance and safety, serving markets across the Americas, Europe, Australia, and other countries and districts.
These adapters feature excellent EMI performance and low ripple, suitable for diverse applications. Henryuan's engineers are adept at meeting both standard and custom requirements.

For more information, talk with Henryuan Group.

Common 12V AC DC Power Unit Models for Projects

Keywords Related:

• 12V 2A adapter
• 12V 2A power supply
• 12V 2A DC power supply
• 12V 2A AC adapter
• 12V 2 Amp adapter
• ac adapter 12V 2A
• switching adapter 12V 2A
• switching power supply 12V 2A

Q1: Can I use a 12V 2A power adapter for a device that specifies 12V 1A or 12V 1.5A?

Yes, This is the most frequently searched question regarding power compatibility. Voltage (12V) must match your device exactly, but the amperage rating represents the adapter’s maximum current capacity. A device that only requires 1A or 1.5A will drawing only what it needs. Utilizing a 12V 2A power adapter provides extra electrical safety headroom, lowers the operating temperature of the adapter, and significantly extends its operational lifespan.

Q2: Why does my current 12V 2A adapter get hot during continuous operation? Is it a fire hazard?

A: Power adapters naturally generate heat during AC-to-DC conversion, but excessive heat indicates poor efficiency or inferior components. Cheap commodity adapters running at high loads often lack thermal optimization, posing a localized fire risk. Henryuan 12V 2A adapters are engineered under strict DoE Level VI energy efficiency standards. Wrapped in a fanless, convection-cooled housing molded from premium UL 94V-0 flame-retardant PC, our adapters dissipate heat cleanly without external ventilation, remaining structurally safe and cool even under 24/7 continuous full-load cycles.

Q3: My device is located 6 to 10 feet away from the outlet. Will a 12V 2A adapter suffer from voltage drop over long cables?

A: Yes, voltage drop is a major engineering bottleneck when current draws hit 2A over extended cable lengths. A standard thin-gauge wire can cause the voltage to drop from 12V down to11.2V or lower at the terminal plug, causing your device (like external hard drives or CCTV PTZ cameras) to reboot or malfunction.

To solve this, Henryuan provides custom cable assembly options. For extended runs, we utilize heavy-duty, pure copper conductors with optimized American Wire Gauge (20AWG or 22AWG) ratings to completely eliminate line resistance and ensure a stable, uncompromised 12V delivery at the plug end.

Q4: Will this 12V 2A power supply cause electromagnetic interference (EMI) or screen flicker in monitors and security cameras?

A: Inferior switching power supplies introduce high-frequency harmonics, resulting in a high output voltage ripple that causes visible screen flicker on LCD displays or diagonal rolling lines on CCTV monitors.

Henryuan12V 2A power adapters feature advanced internal EMI filtering topologies and premium components. We restrict output voltage ripple and noise, delivering clean, pure DC power that guarantees an absolute black noise floor and flawless visual clarity.

Q5: Can we customize the DC connector layout and polarity for our factory production run?

A: Yes, absolutely. While the default standard for a 12V 2A adapter is a Center-Positive 5.5mm x 2.1mm or 5.5mm x 2.5mm DC barrel plug, we are a vertically integrated manufacturer handling both power electronics and custom cable assemblies in-house. We can tailor the output to your exact hardware requirements, including Right-Angle plugs, Center-Negative configurations (for pro-audio pedals), Twist-Lock secure interfaces, Type-C delivery, or waterproof circular terminations.
