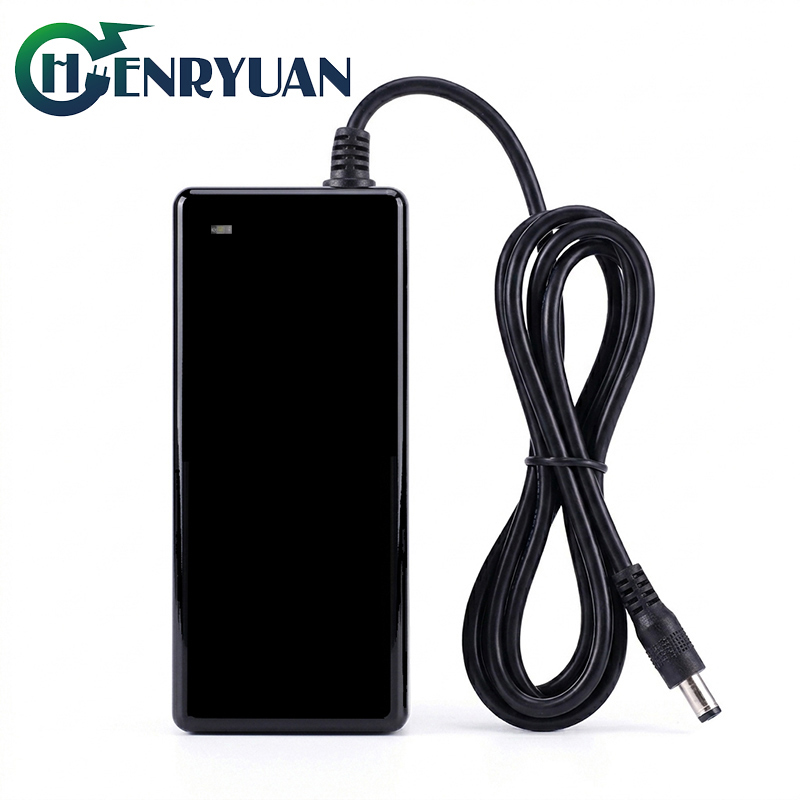

Rapid LiNiMnCoO2 Lithium Charger 16.8V 3A For 14.8V Battery

Henryuan rapid 16.8V 3A charger is loved by customers around the world for its advanced charging solution design, complete safety certifications and perfect production technology.

Key Features of The 16.8V 3A Trickle Charger:

1. Precision Charging Performance
Our lithium battery charger delivers optimized 16.8V/3A output (50.4W) for 4S Li-ion/polymer battery packs. Engineered with ±1% voltage tolerance, it eliminates over/under-voltage risks that degrade battery lifespan.

2. Universal Compatibility & Smart Detection
As a smart charger for 14.8V lithium battery systems, it auto-detects battery status to match appropriate charging characteristics:

• Portable Medical Equipment: Ideal for healthcare hardware, serving as an energy-efficient portable oxygen concentrator 14.8V battery charger featuring strict low-leakage-current protections.
• Drones & UAV Battery Management: Highly compatible as a precise 14.8V drone battery pack smart charger 3A, topping off multi-cell 4S packs safely up to 20Ah capacities via its smart CC/CV algorithm.
• Photography Flash & Studio Lighting: Works flawlessly as a stable 16.8V 3A charger for photography flash lighting, keeping premium broadcast gear and high-speed strobe lights fully active with zero RF interference on set.

3. Military-Grade Safety Protections

Certified by CE/UL/cUL/PSE/SAA/UKCA/GS/CCC/KC, this 16.8V 3A charger integrates 4-layer safeguards:

• OVP (Over-Voltage Protection):

• OCP (Over-Current Protection):

• Short-circuit/Reverse-polarity protection.

4. Efficiency & Environmental Design

88% conversion efficiency reduces energy waste (meets DOE VI/CoC Tier 2)
Fireproof PC casing (UL94 V-0 rated).
0.21mA standby power consumption.

5. User-Centric Features

LED status indicators (red/green for charging/full)
Customized length of DC cable with XT60/DC5.5/Anderson connectors
Operates at 100-240V AC (50/60Hz) for global use.

Henryuan Rapid 16.8V 3A Lithium Battery Charger Specifications:

Model: HRY1683000, rapid 3A charging for 14.8V lithium battery packs

Output		Charging Stage	LED Indicator
Current	Voltage
3A	10V-16.8V	Constant Current	RED(Charging)
3A->0.3A	16.8V	Constant Voltage	RED(Charging)
0.3A->0	16.8V	Trickle Current	GREEN(Fully Charged)

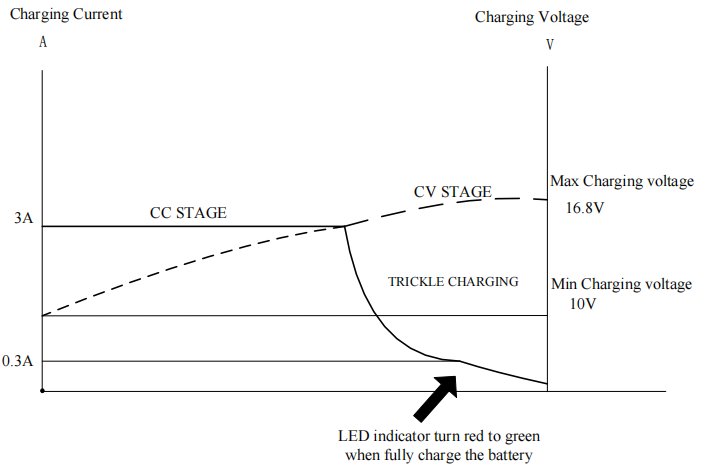

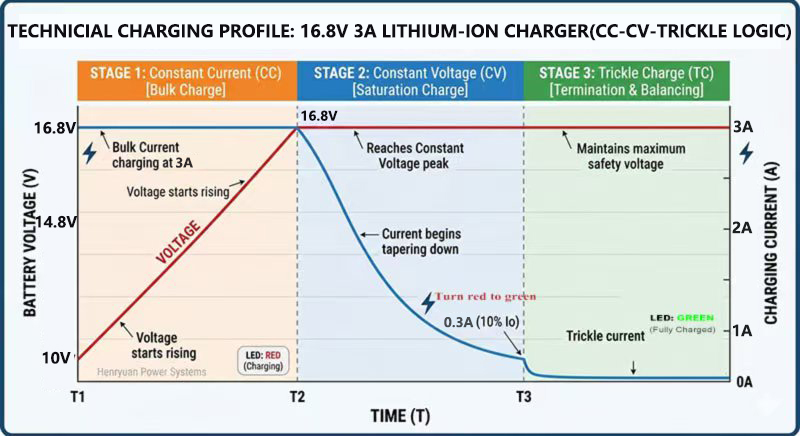

 High Quality Rapid 16V 3A Lithium Battery Charger Working Curve:



Why Choose Henryuan 16.8V 3A Chargers?

• 🔹Stable 16.8V 3A CC/CV charging for 14.8V lithium battery
• 🔹13+ years of expertise in lithium battery charger R&D & manufacturing
• 🔹 100% full-load aging test for quality assurance
• 🔹 Full consistency of production once samples confirmed.
• 🔹 Backed by 3-year warranty and 24/7 technical support
• 🔹 Fast global shipping & dedicated support

Custom Charging Connectors:

FAQ:

Q: How long does this 3A charger take to fully charge the 14.8V lithium battery?

• The charging time is related to the battery capacity and charging current. The regular charging current of lithium batteries is 0.1C-0.2C.

Q: Is this charger compatible with all rechargeable 14.8V Lipo batteries?

• Yes, it can also be customized according to the specific charging requirements of the different 4S lithium battery packs.

Q: Can I customize the 16.8V chargers for my lithium battery type?

• Yes, our experienced teams not only support the customization of charger voltage and current, but also supports customized services of charging output connectors, labels, packaging, charging cables, etc.

Q: How long is the warranty of Henryuan 16.8V battery chargers?

• 3 Years, If the damage is not caused by human factors, we will bear all the express delivery costs and send a new charger replacement

Q: Do you provide freight service for these 16.8V lithium battery chargers?

• For the convenience of our customers, we provide professional express, air, sea, land and other freight services

Henryuan custom 16.8V lithium battery chargers are designed with high frequency switching technology, ensuring fast , efficient and stable charging for various 14.8V lithium battery packs. This high quality 16.8V 3A lithium chargers are trusted by customers in the USA, Canada, Europe, Australia, Asia and more markets for their high efficiency and durability. Explore our full range of 16.8V lithium battery chargers, Need a custom battery charger for your flash lighting,talk to our experts today.

Notes:

This rapid 16.8V 3A lithium battery charger has certifications include UL, cUL, CE, PSE, SAA, UKCA, CCC, FCC, EMC and RoHS. Compatible with major flash lighting lithium battery brands and supports capacities up to 20Ah.

Full Specifications of 16.8V 4S Li-ion Battery Charger Solutions

Henryuan 16.8V Lithium Charger (CB, UL, cUL, FCC, ETL, CE, EMC, UKCA, SAA, PSE, KC, CCC, RoHS)	Model	Input	Output(Voltage/Current)
	HRY1680300	100-240Vac, 50/60Hz	16.8V 0.3A 5.04W
	HRY1680400		16.8V 0.4A 6.72W
	HRY1680500		16.8V 0.5A 8.4W
	HRY1680600		16.8V 0.6A 10.08W
	HRY1680700		16.8V 0.7A 11.76W
	HRY1680800		16.8V 0.8A 13.44W
	HRY1680900		16.8V 0.9A 15.12W
	HRY1681000		16.8V 1.0A 16.8W
	HRY1681200		16.8V 1.2A 20.16W
	HRY1681500		16.8V 1.5A 25.2W
	HRY1681800		16.8V 1.8A 30.24W
	HRY1682000		16.8V 2.0A 33.6W
	HRY1682500		16.8V 2.5A 42W
	HRY1683000		16.8V 3.0A 50.4W
	HRY1683500		16.8V 3.5A 58.8W
	HRY1683750		16.8V 3.75A 63W
	HRY1684000		16.8V 4.0A 67.2W
	HRY1685000		16.8V 5.0A 84W
	HRY1686000		16.8V 6.0A 100.8W
	HRY1686500		16.8V 6.5A 109.2W
	HRY1687000		16.8V 7.0A 117.6W
	HRY1688000		16.8V 8.0A 134.4W
	HRY16810000		16.8V 10A 168W
	HRY16820000		16.8V 20A 336W
	HRY16825000		16.8V 25A 420W
