Products >> LiFePO4 Battery Charger >> 14.6V LiFePO4 Battery Charger
14.6V 1.5A LiFePO4 Battery Charger | 12V LiFePO4 Battery Charger
Product Overview
The 14.6V 1.5A LiFePO4 battery charger is designed to provide safe, efficient, and reliable charging for 12V LiFePO4 battery packs. With advanced CC/CV charging technology, it ensures optimal battery performance and extended lifespan. Compact, lightweight, and durable, this 14.6V 1.5A charger is ideal for home, workshop, or mobile applications.
Key Features
- Stable 14.6V output with 1.5A charging current for 12V LiFePO4 batteries.
- CC/CV charging stages with trickle mode to prevent overcharging.
- Built-in protections: over-voltage, over-current, short-circuit, and reverse polarity.
- Dual-color LED indicator: red for charging, green for fully charged.
- Certified to UL, CE, PSE, SAA, UKCA standards for safety and performance.
- Lightweight and portable design with durable components.
Technical Specifications
Input
- Voltage: 90–264Vac (rated 100–240Vac)
- Frequency: 50/60Hz
- Current: 0.6A max
Output
- Voltage: 14.6V
- Current: 1.5A
- Charging Stages: Constant Current, Constant Voltage, Trickle
- LED Status: Red (charging), Green (fully charged)
|
Charging Stage |
Output Current |
Output Voltage |
LED Indicator |
|
Constant Current |
1.5A |
8V–14.6V |
Red |
|
Constant Voltage |
1.5A → 0.2A |
14.6V |
Red |
|
Trickle Charging |
0.2A → 0 |
14.6V |
Green |

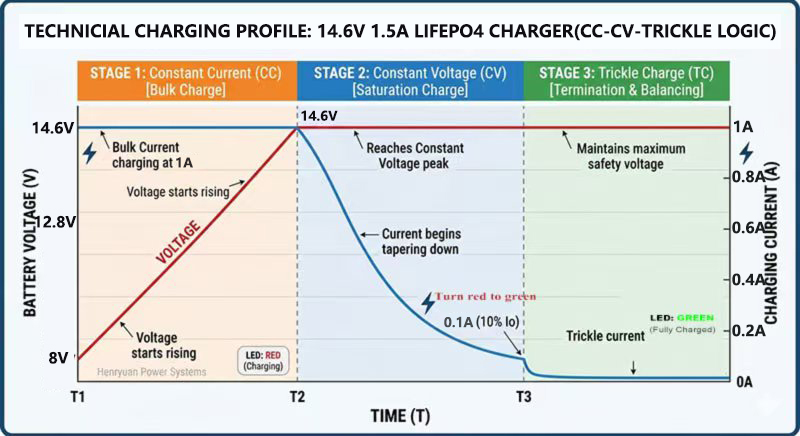

Intelligent 14.6V 1.5A Charging Curve
Applications
This 12V LiFePO4 Battery 14.6V 1.5A Charger is suitable for:
- Solar energy storage systems
- Rechargeable lights
- Fishing gears
- Portable power stations
- Emergency backup equipments
Quality Assurance
- Over 13 years of charger R&D and manufacturing expertise.
- Rigorous supplier selection and strict material inspection.
- 100% full-load aging test for up to 4 hours.
- Comprehensive after-sales support within 48 hours.
Related 12V LiFePO4 Battery Charger
Explore more 12V lifepo4 battery chargers»
Contact Henryuan
If you are looking for a safe, reliable, and efficient 14.6V 1.5A LiFePO4 battery charger, contact Henryuan’s sales engineers today to get the best charging solution for your 12V lithium iron phosphate batteries.
Q & A
Q: What is the best charger for a 12V (12.8V) LiFePO4 battery?
A: Henryuan 14.6V 1.5A charger is a good choice for 4S (4-cell) LiFePO4 battery packs. It delivers a precise charging for 12.8V LFP systems, ensuring your batteries stay healthy.
Q: Is it dangerous to leave this charger fully charged without unplugging it?
A: Yes, it's safe. The charger's output current drops to 0 after a full charge, but it's recommended to disconnect the charger from the battery after it's fully charged.
Q: What charging protection designs are available for Henryuan 14.6V LiFePO4 charger?
A: Henryuan 14.6V charger is UKCA and CE certified, meeting rigorous global safety standards. It comes with short circuit protection, over-voltage protection, over-current protection, and reverse polarity protection.
Q: How do I know when my battery is fully charged?
A: It’s simple and intuitive. The charger uses a dual-color LED indicator:
Red: Fast charging in progress.
Green: Charging complete or in disconnected.
Q: Why choose Henryuan over generic chargers?
A: Unlike "no-name" chargers, Henryuan specializes in battery charging tech. This 14.6V 1.5A charger uses high-efficiency components and a fireproof housing. It provides a stable, low ripple output
