Products >> Lithium Ion Battery Charger >> 63V Lithium Ion Battery Charger

Factory Customized XR Hypercharger 63V 6.5A Lithium Battery Charger

Product No.：HRY6306500
Online Inquiry

63V 6.5A Charger

High Performance XR Hypercharger 63V 6.5A Lithium Battery Charger For Skateboards

Product Description:
63V Lithium Battery Charger | 63V 6.5A NMC Battery Charger

Henryuan 63V 6.5A Lithium Battery Charger offers top level charging performance for a variety of 15S 55.5V lithium-ion battery applications. With ETL, UL, PSE, CE, EMC, LVD, SAA, and FCC certifications, this charger is built to meet the highest safety standards globally, ensuring safe and efficient charging.

Key Applications:

Electric Skateboards, Electric Scooters.
Energy Storage Systems, Robots.
Electric Scooters, Diving Equipments and other 55.5V lithium battery powered equipments.

Safety Certifications:

Worldwide certificates
UL, ETL, cUL, FCC, PSE, CE, EMC, LVD, UKCA, SAA, KC, CCC

Input Specifications:

Voltage Range: 90Vac-264Vac
Rated Voltage: 100Vac-240Vac
Frequency: 47Hz-63Hz
Current: 5A
Inrush Current: 60A

Output Specifications:

Model: 63V 6.5A Lithium Battery Charger
Power: 410W
LED Indicator: Dual color (Red during charging, Green when fully charged)

Output		Charging Stage	LED Indicator
Output
Current	Voltage
6.5A	37.5V-63V	Constant Current	RED
6.5A->0.6A	63V	Constant Voltage	RED
0.6A->0	63V	Trickle Current	GREEN LED turn red to green when charging current below 0.6A

Charging Stages:

Constant Current: 6.5A fast charging, voltage 37.5V - 63V, LED red.
Constant Voltage: 63V max, current 6.5A to 0.6A, LED red.
Trickle Current: 0.6A to 0, voltage 63V max, LED green.

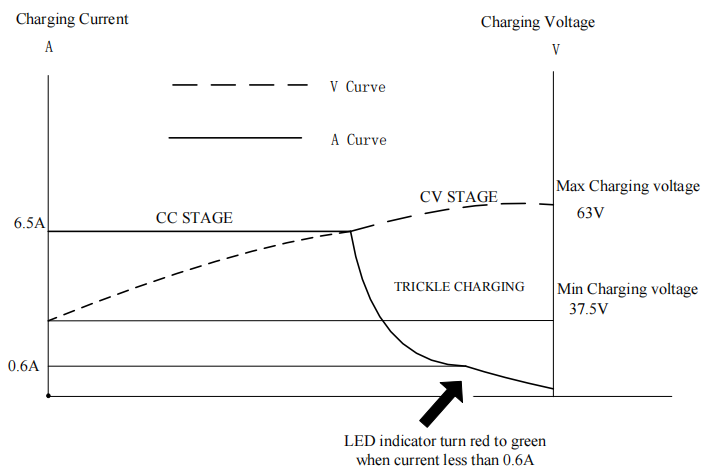

Charging Curve:

The 15S 63V li-ion battery charger maintains a consistent and efficient charging curve, preserving battery health.

XR Hypercharger 63V 6.5A

Compact and Portable Design

Its lightweight and compact design makes it easy to carry and store,but powerful
Dimensions: 246 x 105 x 54 MM
Weight: 1kg

Protection Features:

Overcurrent Protection
Overvoltage Protection
Short Circuit Protection
Reverse Polarity Protection

Quality Assurance:

Experienced Sales Engineers: Over a decade of expertise in understanding and meeting customer needs.
Rigorous Material Selection: Only top-quality raw materials are used.
Strict Inspection Process: Comprehensive incoming material inspections ensure quality.
Expert Engineers: More than 20 years of design experience.
Skilled Production Team: Advanced production and testing equipment.
Aging Testing: 100% aging testing process, up to 4 hours at full load.
Comprehensive After-Sales Support: Feedback and resolution within 48 hours.

About Henryuan Group:

With over 13 years of experience in the production and R&D of 63V lithium battery chargers, Henryuan Group is a leading industry supplier. Our 63V 6.5A lithium battery chargers are globally recognized for their superior performance and safety features. Exported to the Americas, Europe, the UK, Australia, New Zealand, and Asia, they are trusted by consumers worldwide for a variety of applications.
