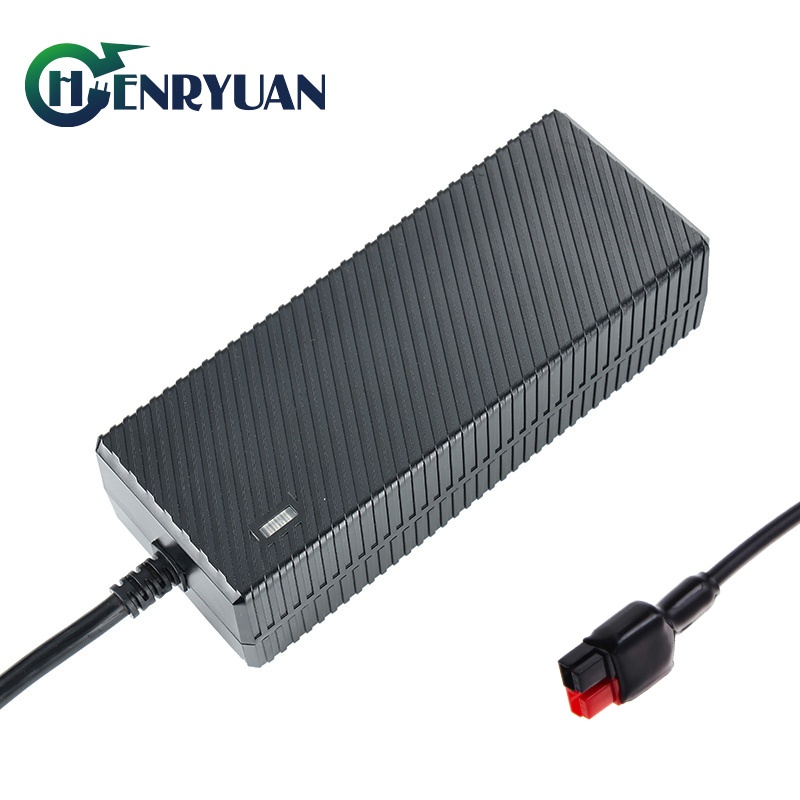

Lithium Battery 28.8V 2A Golf Buggy and Trolley Charger Anderson Plug

Product No.：HRY3362000
Online Inquiry

golf buggy and trolley charger

Factory Customized Golf Buggy And Trolley Charger | Lithium Charger 28.8V 2A | UL, cUL, PSE, CE, SAA, UKCA

Henryuan customized high quality 28.8V 2A electric golf trolley and buggy charger is meticulously designed to charge 8S 28.8V lithium-ion batteries efficiently and safely. Engineered with advanced technology and top-quality components, this charger offers a fast and secure charging experience for a variety of applications.

Safety Certifications:

Our chargers are certified by multiple international safety certificates, including:
CB, UL, cUL, ETL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC, RoHS

Input Features:

Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequency: 47Hz-63Hz
Input Current: 1.3A
Inrush Current: 60A

Output Specifications:

Equipped with a dual-color LED indicator to display charging status.

Constant Current: 2A, at voltage 20V-33.6V, red LED .
Constant Voltage: 33.6V, current 2A to 0.2A, red LED.
Fully Charged: Trickle Charging 0.2A to 0, 33.6V max, green LED.

Output		Charging Stage	LED Indicator
Output
Current	Voltage
2A	20V-33.6V	Constant Current	RED
2A->0.2A	33.6V	Constant Voltage	RED
0.2A->0	33.6V	Trickle Current	GREEN LED turn red to green when charging current below 0.2A

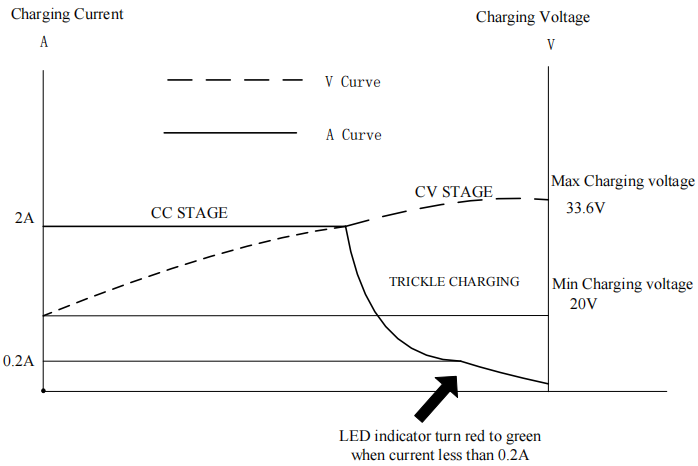

Charging Curve:

Special designed 33.6V 2A lithium battery charger for 8S 28.8V electric golf trolley and buggy
28.8V 2A electric golf trolley charger

Protection Features:

Over current protection.
Over voltage protection.
Short circuit protection.
Reverse polarity protection

Compact and Portable Design:

Its lightweight and compact design makes it easy to carry and store, perfect for use anywhere.
Dimensions: 116 x 52 x 34 MM
Weight: 0.25kg

Quality Assurance:

Experienced sales engineers with over a decade of expertise in understanding customer needs.
Rigorous selection process for raw material suppliers.
Strict incoming material inspection process.
Experienced engineers with over 20 years in material solutions design.
Skilled production staff and advanced production testing equipment.
100% aging testing process, with up to 4 hours of full load aging.
Comprehensive after-sales support system, ensuring feedback and resolution within 48 hours.

Professional Production Equipments

About Henryuan Group:

Henryuan is a prominent leader in the production and R&D of lithium battery chargers, boasting over 13 years of experience. Our high-quality 28.8V electric golf trolley battery charger is renowned for its exceptional performance and safety features, making it a preferred choice for consumers globally. Exported to the Americas, Europe, the UK, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan, and other regions.
Our 14.4V lithium chargers meet a wide range of customer needs with unmatched reliability and efficiency. We offer a variety of 28.8V lithium battery charger models including 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 7A, 8A, 9A, 10A, 15A.
