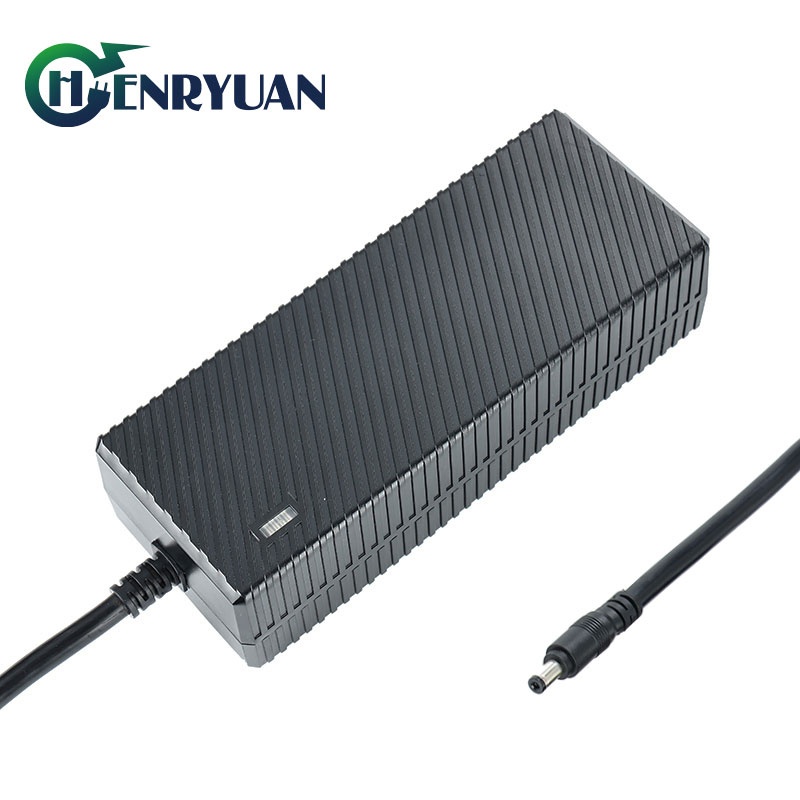

Precision-Engineered 11V 6A LiFePO4 Battery Charger For 3S 9.6V LFP Battery
Henryuan high quality portable 11V 6A LiFePO4 battery charger, built to deliver ultra-reliable performance for 3s 9.6V lithium iron phosphate battery systems. Designed with industrial grade durability and smart safety protocols(smart 3-satge charging)provides top level charging performance for a variety LiFePO4 battery applications. With PSE, CE, EMC, LVD, UL, cUL, ETL, SAA, and FCC certifications, this charger is built to meet the highest safety standards globally at the same time, ensuring the efficient and safe charging.
Key Applications:.
Smart adaptive charging: Auto-adjusts voltage/current based on battery status, ensuring optimal charge.- Electric power tools, Robots.
- Communication devices
- LED lighting, Diving equipments and other 3S 9.6V LiFePO4 battery powered equipments.
More 3S LiFePO4 Charger Models:
- 11V 3A LiFePO4 Battery Charger: HRY1103000
- 11V 4A LiFePO4 Battery Charger: HRY1104000
- 11V 5A LiFePO4 Battery Charger: HRY1105000
- 11V 6A LiFePO4 Battery Charger: HRY1106000
- 11V 7A LiFePO4 Battery Charger: HRY1107000
Safety Certifications:
-
Global safety certificates
-
CB, CE, EMC, LVD, UKCA, UL, ETL, cUL, FCC, PSE, SAA, KC, CCC and RoHS
Input Features:
-
Wide Input Voltage Range: 90Vac-264Vac
-
Rated Voltage: 100Vac-240Vac
-
Frequency: 50/60Hz
-
Current: 3A
-
Inrush Current: 60A
Output Specifications:
- Model: 11V 6A LiFePO4 Battery Charger
- Power: 66W
- LED Indicator: Dual color (Red during charging, Green when fully charged)
- Advanced ripple suppression(<250mVp-p)
- Energy-Efficient Design: Achieves 88%+ efficiency under full load and near-zero standby consumption (<0.21W), aligning with DOE/CEC/CoC
Output |
Charging Stage |
LED Indicator |
|
Current |
Voltage |
||
6A |
6V-11V |
Constant Current |
RED |
6A->0.6A |
11V |
Constant Voltage |
RED |
0.6A->0 |
11V |
Trickle Current |
GREEN |
Charging Stages:
- Constant Current: 6A fast charging, LED red.
- Constant Voltage: 11V max, LED red.
- Trickle Current: 0.6A to 0,fully charge the battery packs, LED turn to green.

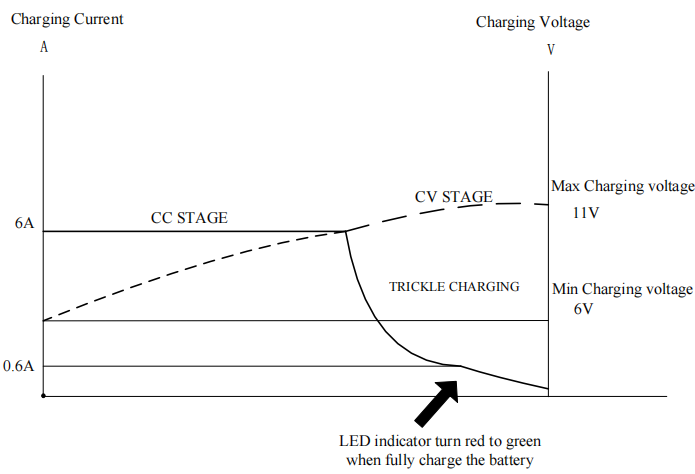

Smart Charging Curve:
Compact and Portable Design
- Rugged, heat-resistant casing, lightweight and compact design makes it easy to carry and store,but large power
- Dimensions: 153 x 60 x 39.5 MM
- Weight: 0.5kg
Protection Mechanism:
Tailored for 3S 9.6V LiFePO4 packs.- Overcurrent Protection
- Overvoltage Protection
- Short Circuit Protection
- Reverse Polarity Protection
Quality Assurance:
- Experienced Sales Engineers: Over a decade of expertise in understanding and meeting customer needs.
- Rigorous Material Selection: Only top-quality raw materials are used.
- Strict Inspection Process: Comprehensive incoming material inspections ensure quality.
- Expert Engineers: More than 20 years of design experience.
- Skilled Production Team: Advanced production and testing equipment.
- Aging Testing: 100% aging testing process, up to 4 hours at full load.
- Comprehensive After-Sales Support: Feedback and resolution within 48 hours.
About Henryuan Group:
With over 13 years of experience in the production and R&D of LiFePO4 battery chargers, Henryuan Group is a leading charger industry supplier. Our 11V 6A LiFePO4 battery chargers are globally recognized for their superior performance and safety features. Exported to the Americas, Europe, the UK, Australia, New Zealand, and Asia, they are trusted by consumers worldwide for a variety of applications.
Henryuan 11V LiFePO4 Battery Charger Range:
Various 11V LiFePO4 battery chargers with currents 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 6.5A, 7A, 8A, 9A, 10A, 11A, 15A, 20A.
