  • CE UL SAA PSE UKCA approved Interchangeable multi plug 4S NIMH battery charger 6V 500mA 1A
CE UL SAA PSE UKCA approved Interchangeable multi plug 4S NIMH battery charger 6V 500mA 1A

CE UL SAA PSE UKCA approved Interchangeable multi plug 4S NIMH battery charger 6V 500mA 1A

6V 1A Nimh battery charger
Product Description

High-Quality 6V NIMH Battery Charger with Global Compatibility
CE, UL, SAA, PSE, UKCA Approved Interchangeable Multi-Plug 4S NIMH Battery Charger
Available in 6V 500mA and 1A Options
Compatible with AU, EU, UK, US, JP, and CN Wall Plugs

Experience superior charging with our high-quality 6V NIMH battery charger, designed for 4S 4.8V NIMH batteries. This advanced charger ensures safe, efficient, and fast charging for a variety of applications, including power tools, educational robots, electric toys, LED desk lamps, flashlights, diving lamps, and GPS modules.

1. Safety Certifications:

Our chargers are fully certified to meet global safety standards, including UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, and CCC.

2. Input Specifications:

  • Voltage: 90Vac-264Vac
  • Rated Voltage: 100Vac-240Vac
  • Frequency: 47Hz-63Hz
  • Current: 0.6A
  • Inrush Current: 35A

3. Output Specifications:

  • Model:CE, UL, SAA, PSE, UKCA Approved
  • Voltage: 6V
  • Current Options: 500mA, 1A
  • Plugs: US, JP, EU, AU, UK, CN
  • LED Indicator: Red (charging), Green (fully charged)

Output

Charging Stage

LED Indicator

Current

Voltage

1A

3.6V-6V

Constant Current

RED

1A->0.3A

6V

Constant Voltage

RED

0.3A->0

6V

Trickle Current

GREEN
LED turn red to green when charging current below 0.3A

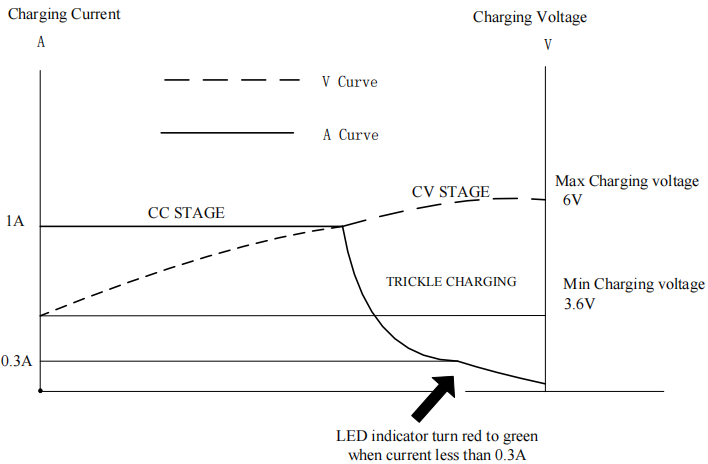

4. Charging Curve:
The 6V NIMH charger provides a smooth and efficient charging curve, maintaining optimal battery health.

6V 1a nimh charger

5. Protection Features:

  • Overcurrent Protection
  • Overvoltage Protection
  • Short Circuit Protection
  • Reverse Polarity Protection

6. Quality Assurance:



  • Experienced Sales Engineers: Over a decade of expertise in understanding customer needs.
  • Rigorous Material Selection: Ensuring top-quality raw materials.
  • Strict Inspection Process: Comprehensive incoming material inspections.
  • Expert Engineers: More than 20 years of design experience.
  • Skilled Production Team: Advanced production and testing equipment.
  • Aging Testing: 100% aging testing process, up to 4 hours at full load.
  • Comprehensive After-Sales Support: Feedback and resolution within 48 hours.

About Henryuan Group
With over 13 years of experience in the production and R&D of NIMH battery chargers, Henryuan Group is an industry leader in this industry. Our 6V NIMH battery chargers are renowned for their superior performance and safety features. Exported globally, including to the Americas, Europe, UK, Australia, New Zealand, and Asia, our chargers are trusted by consumers worldwide.

Contact Us:
Looking for a safe, reliable, and efficient NIMH battery charger? Contact Henryuan's expert sales engineers to find the perfect solution for your needs.
