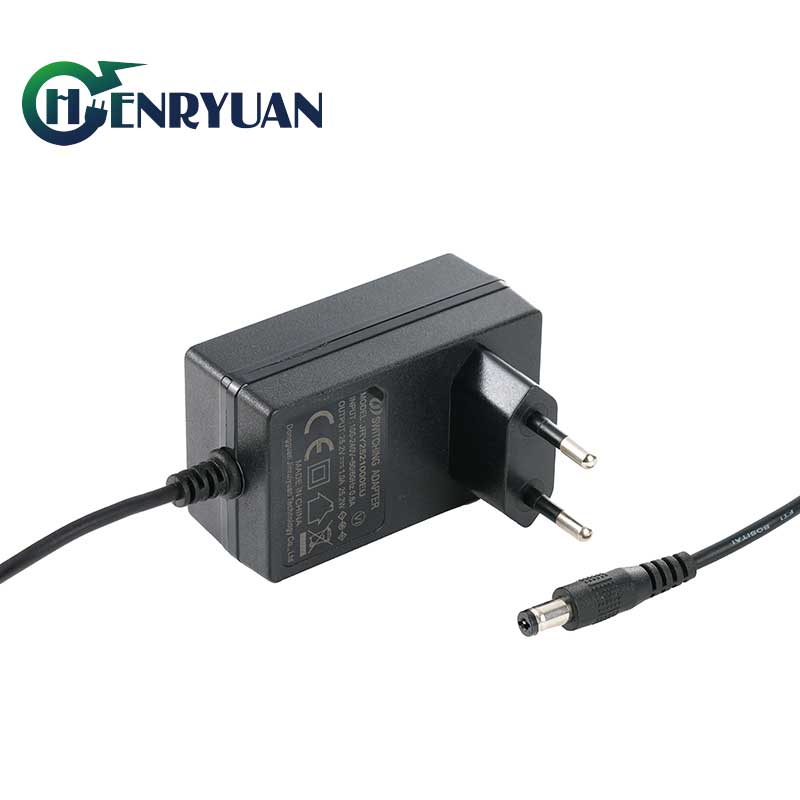

  • LiFePO4 battey 3.6V 2A 3A LFP charger adapter European plug wall mount CE EMC LVD GS approved
LiFePO4 battey 3.6V 2A 3A LFP charger adapter European plug wall mount CE EMC LVD GS approved

LiFePO4 battey 3.6V 2A 3A LFP charger adapter European plug wall mount CE EMC LVD GS approved

3.6V lfp battery charger

Henryuan High-Quality 3.6V 2A & 3A LiFePO4 Battery Chargers

Henryuan offers premium 3.6V 2A and 3A LiFePO4 battery chargers, renowned for their superior performance and extensive safety certifications, including CE, EMC, LVD, GS, UL, and more. Designed with advanced charging schemes and built-in multiple protection mechanisms, these chargers ensure safe and rapid charging for your devices.

Key Features

Safety Certifications:

  • Global Approvals: TUV, CE EMC, LVD, GS, UL, FCC, cUL, SAA, UKCA, PSE

Input Specifications:

  • Input Voltage Range: 90Vac-264Vac
  • Rated Input Voltage: 100Vac-240Vac
  • Input Frequency: 47Hz-63Hz
  • Input Current: 0.6A
  • Inrush Current: 35A

Output Specifications:

  • European Plug: Wall mount design with CE, EMC, LVD, and GS approvals
  • Output Voltage: 3.6V
  • Output Current: 2A (7.2W), 3A (10.8W)
  • LED Indicator: Dual-color LED showing charging status (Red for charging, Green for fully charged)

Output

Charging Stage

LED Indicator

Current

Voltage

3A

2V-3.65V

Constant Current

RED

3A->0.3A

3.65V

Constant Voltage

RED

0.3A->0

3.65V

Trickle Current

GREEN
LED turn red to green when charging current below 0.3A


4.

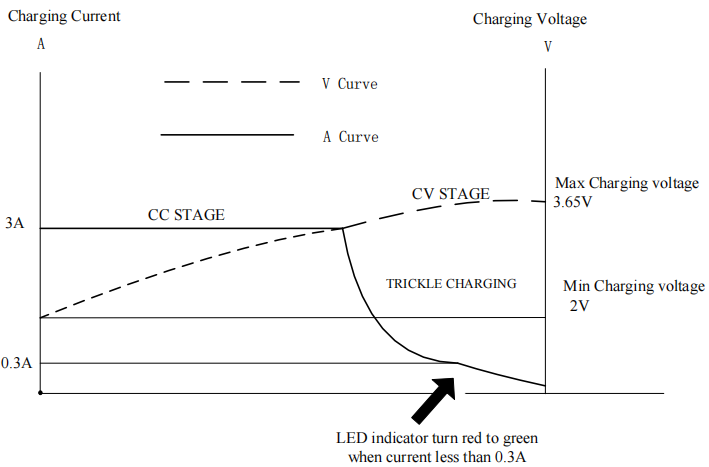

Charging Curve, Professional For 3.6V 3A LiFePO4 Battery Charger
3.6V 2A LFP charger
Protection Features:

  • Overcurrent protection
  • Overvoltage protection
  • Short circuit protection
  • Reverse polarity protection
Quality Assurance:

  • Experienced Sales Engineers: Over a decade of experience
  • Rigorous Supplier Selection: High-quality raw materials
  • Strict Inspection Processes: Comprehensive incoming material inspection
  • Engineering Expertise: Over 20 years in material solutions design
  • Skilled Production Staff: Advanced production and testing equipment
  • Full Load Aging Testing: 100% aging test for up to 4 hours
  • Comprehensive After-Sales Support: Resolution within 48 hours
Available Models for Global Use
  • 3.6V 2A LiFePO4 Chargers:

  • US Plug: Model: HRY0362000US, Output: 3.6V 2A, 7.2W
  • EU Plug: Model: HRY0362000EU, Output: 3.6V 2A, 7.2W
  • AU Plug: Model: HRY0362000AU, Output: 3.6V 2A, 7.2W
  • UK Plug: Model: HRY0362000UK, Output: 3.6V 2A, 7.2W
  • JP Plug: Model: HRY0362000JP, Output: 3.6V 2A, 7.2W
  • 3.6V 3A LiFePO4 Chargers:
  • US Plug: Model: HRY0363000US, Output: 3.6V 3A, 10.8W
  • EU Plug: Model: HRY0363000EU, Output: 3.6V 3A, 10.8W
  • AU Plug: Model: HRY0363000AU, Output: 3.6V 3A, 10.8W
  • UK Plug: Model: HRY0363000UK, Output: 3.6V 3A, 10.8W
  • JP Plug: Model: HRY0363000JP, Output: 3.6V 3A, 10.8W
Applications
Henryuan's high-quality 3.6V LiFePO4 battery chargers are perfect for various devices:
  • LED lamp chargers
  • Portable ultrasonic detector chargers
  • Electric toy chargers
  • Flashlight chargers
  • Diving lamp chargers
  • GPS module chargers
  • Massager chargers
About Henryuan Group

With over 13 years of experience in the production and R&D of LiFePO4 battery chargers, Henryuan Group is a leading industry supplier. Our chargers are celebrated for their excellent performance, safety features, and compliance with international standards. They are widely exported to the Americas, Europe, the United Kingdom, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan, and other regions, achieving a high market share.

Contact Us

For a reliable and efficient 3.6V LiFePO4 battery charger, trust Henryuan's expertise. Explore our range of models from 0.5A to 10A, and get in touch with our experienced sales engineers to find the perfect solution for your needs.
