Products >> Lithium Ion Battery Charger >> 58.8V Lithium Ion Battery Charger

  • 14S 52 Volt lithium ion battery charger 2A 3A 4A 58.8V lithium charger
14S 52 Volt lithium ion battery charger 2A 3A 4A 58.8V lithium charger

14S 52 Volt lithium ion battery charger 2A 3A 4A 58.8V lithium charger

58.8V charger

Product Description

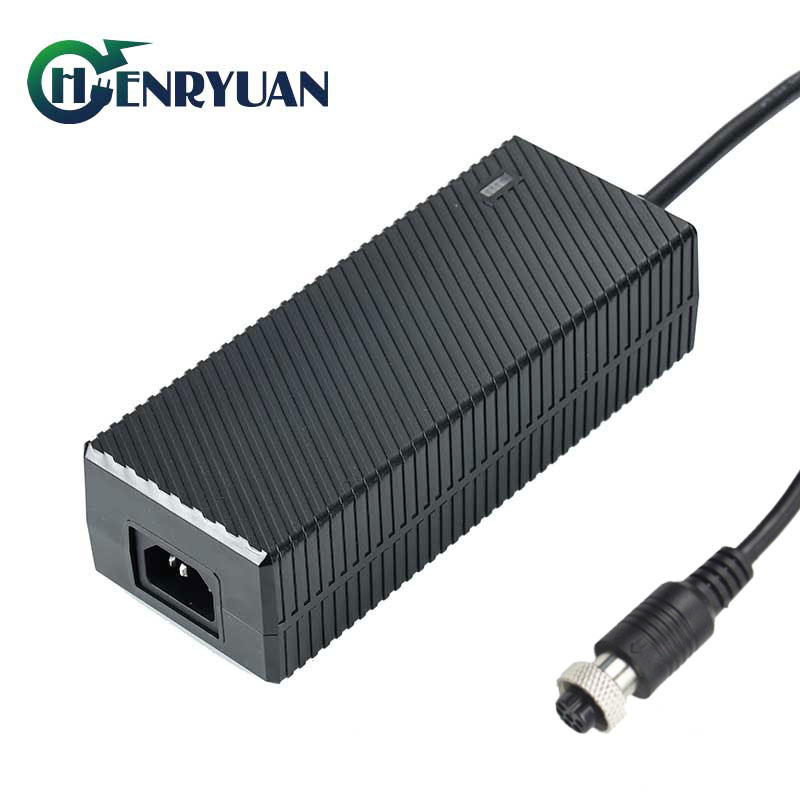

The Henryuan 14S 58.8V lithium-ion battery charger, available in 2A, 3A, 3.5A, 4A, 5A models, is designed for high-performance charging of 14S 52V lithium batteries. This 58.8V charger comes with safety certifications from UL, cUL, FCC, CE, UKCA, SAA, PSE, and others, ensuring top-notch safety and reliability.

Key Features and Applications

1. Safety Certifications:

  • Our chargers are certified by UL, ETL, cUL, FCC, CE, UKCA, SAA, PSE, TUV, and RoHS, ensuring compliance with global safety standards.
2. Input Specifications:
  • Input Voltage: 90Vac-264Vac
  • Rated Input Voltage: 100Vac-240Vac
  • Frequency: 47Hz-63Hz
  • Input Current: 3A
  • Inrush Current: 60A

3. Output Specifications:

  • Models:
    • 2A Charger: HRY5882000
    • 3A Charger: HRY5883000
    • 3.5A Charger: HRY5883500
    • 4A Charger: HRY5884000
  • LED Indicator: Displays charging status with red light during charging and green light when fully charged.
Charging Stages for 52V 4A Model:
  • Constant Current: 4A, 35V-58.8V (Red LED)
  • Constant Voltage: 4A -> 0.4A, 58.8V (Red LED)
  • Trickle Charging: 0.4A -> 0, 58.8V (Green LED)


Charging Stage

LED Indicator





Constant Current




Constant Voltage




Trickle Current

LED turn red to green when charging current below 0.4A

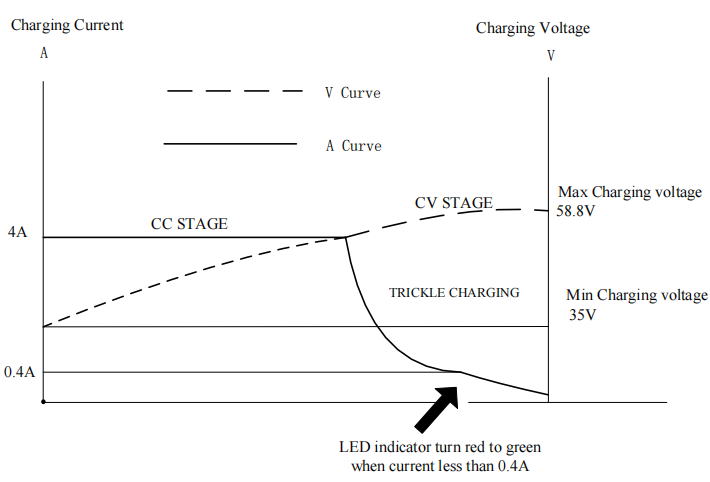

Charging Curve, Special Designed For 58.8V 4A Lithium Ion Battery Charger
52v lithium ion battery charger

5. Applications:

  • Ideal for charging electric scooters, e-bikes, electric golf carts, and more. This versatile charger is perfect for various high-capacity battery applications.


6. Protection Features:

  • Includes overcurrent protection, overvoltage protection, short circuit protection, and reverse polarity protection, ensuring safe and reliable charging.

7. Quality Assurance:

  • Experienced sales engineers with over a decade of expertise
  • Rigorous raw material selection and inspection process
  • Advanced engineering design and production testing
  • 100% full-load aging testing for up to 4 hours
  • Comprehensive after-sales support with a resolution system within 48 hours


About Henryuan Group

Henryuan Group, with over ten years of experience in the production and R&D of 52V lithium-ion battery chargers, is a leading supplier in the industry. Our 52V chargers are renowned for their superior performance and safety features, making them a popular choice worldwide. Exporting to the Americas, Europe, the UK, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan, and other regions, our chargers meet a wide range of application needs.

For a safe, reliable, and efficient 58.8V lithium battery charger, contact Henryuan's sales engineers today. We offer various models, including 58.8V 1A, 1.5A, 2A, 3A, 4A, 5A chargers, and more.
