Products >> Lithium Ion Battery Charger >> 8.4V Lithium Ion Battery Charger

  • High Performance Desktop Lithium Battery Charger 8.4V 1.5A

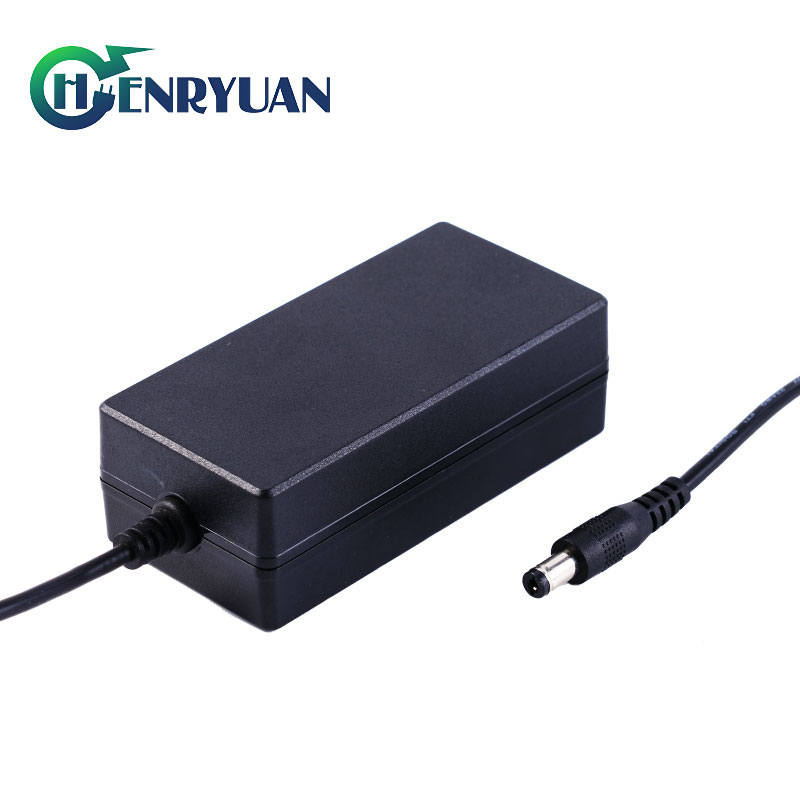

High Performance Desktop Lithium Battery Charger 8.4V 1.5A

High Performance Desktop Lithium Battery Charger 8.4V 1.5A

8.4V 1.5A charger

8.4V 1.5A Lithium ion charger for 2S 7.4V li-ion battery.

Product Description:

Introducing the Henryuan Desktop Lithium Battery Charger 8.4V 1.5A, a top-tier charging solution for 2S 7.4V lithium-ion batteries. This desktop charger is engineered with advanced charging technology, ensuring fast and safe power delivery. Certified by UL, cUL, PSE, SAA, CE, EMC, LVD it features multiple protection mechanisms including overcurrent, overvoltage, and short circuit protection. Ideal for various applications, such as educational robots, electric toys, LED desk lamps, flashlights, diving lamps, GPS modules, and massagers, this charger provides reliable performance and user-friendly operation.

Key Features:

  • Certifications: CE EMC, LVD, GS, UL, FCC, cUL, UKCA, SAA, PSE

Input Specifications:

  • Voltage: 90-264Vac (rated 100-240Vac)
  • Frequency: 47-63Hz
  • Current: 0.6A
  • Inrush Current: 35A

Output Specifications:

  • Voltage: 8.4V
  • Current: 1.5A
  • Constant Current: 1.5A fast chaging at voltage 5V to 8.4V, red LED.
  • Constant Voltage: 8.4V Max, current 1.5A to 0.2A, red LED.
  • Tricking Charging: 0.2A to 0, green LED, fully charging the 7.4V battery pack.
  • LED Indicator: Red during charging, green when fully charged

Output

Charging Stage

LED Indicator

Current

Voltage

1.5A

5V-8.4V

Constant Current

RED

1.5A->0.2A

8.4V

Constant Voltage

RED

0.2A->0

8.4V

Trickle Current

GREEN
LED turn red to green when charging current below 0.2A

Compact and Portable Design

  • Lightweight and compact design makes it easy to use anywhere
  • Dimensions: 70 x 44 x 28 MM
  • Weight: 100g

Protection Features:

  • Over current, over voltage, short circuit, and reverse polarity protection

Charging Curve:

  • Suitable for 7.4V 18650 lithium-ion batteries
8.4V 1.5A charger

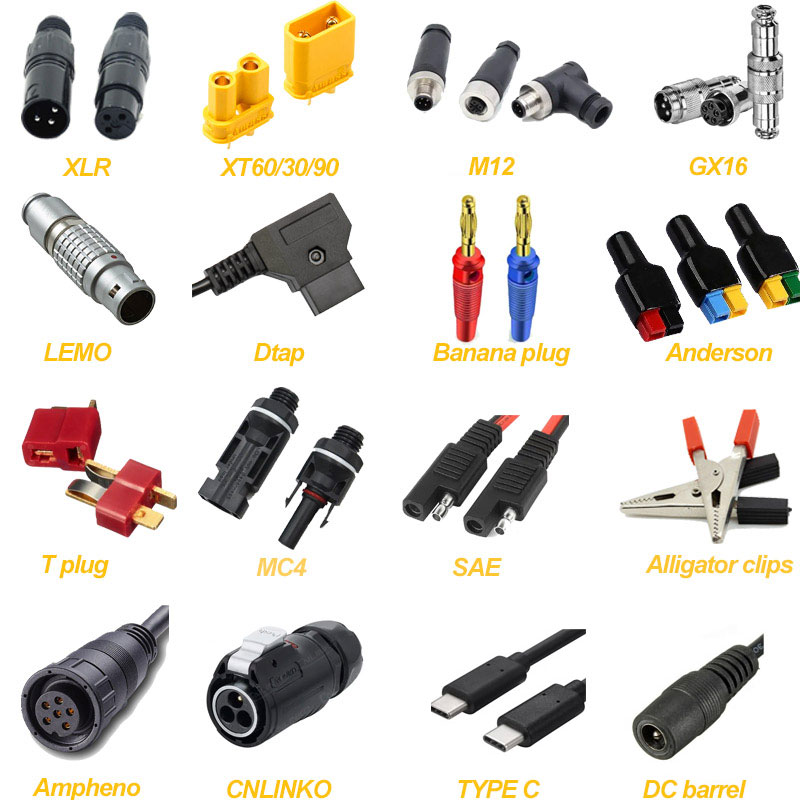

Variety Of Connectors Supported:
Charging Connectors



Quality Assurance:

  • Experienced sales, engineers and rigorous supplier selection
  • Strict material inspection and advanced testing
  • 100% aging test for up to 4 hours at full load
  • Comprehensive after-sales support with 48-hour resolution

Company Profile:

Henryuan Group, with over a decade of R &D experience in lithium battery chargers, is a leading industry supplier known for superior performance and safety. Their 8.4V 1.5A lithium chargers are popular worldwide, including in the Americas, Europe, Austrlia and Asia. The 8.4V 1.5A lithium ion charger offers reliable and efficient charging with excellent EMI performance. Henryuan's engineers meet both standard and custom requirements, making their chargers ideal for various applications.

Henryuan 8.4V 1.5A Charger Range:

Various 8.4V lithium battery chargers with currents 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 6.5A, 7A, 8A, 9A, 10A.

More 8.4V Li-ion Charger Links:

Contact Us:

For a safe, reliable, and efficient 8.4V li-ion battery charger, contact Henryuan's expert sales engineers today
