  • North American Plug 8.4V 1.2A Charger For Lithium Battery 7.4V

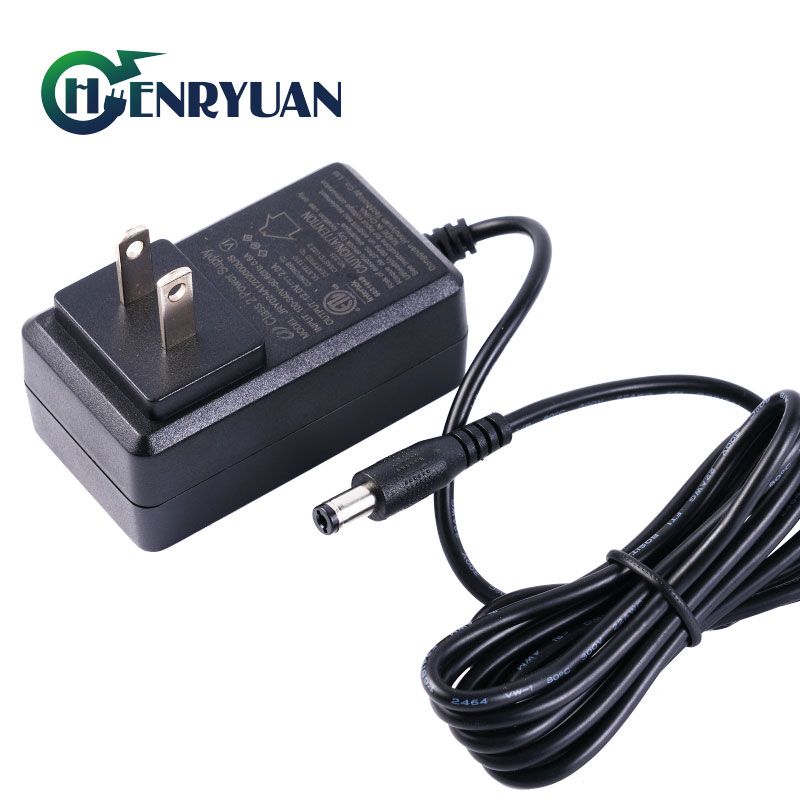

North American Plug 8.4V 1.2A Charger For Lithium Battery 7.4V

North American Plug 8.4V 1.2A Charger For Lithium Battery 7.4V

8.4V 1.2A charger

North American Plug 8.4V 1.2A Charger For Lithium battery 7.4V UL, cUL, FCC Approved

Product Overview:

The North American plug 8.4V 1.2A charger for lithium battery 7.4V is certified by UL, cUL, FCC. It is designed for 2S 7.4V rechargeable lithium-ion batteries.
Featuring advanced charging technology and multiple protection mechanisms, it ensures safe and efficient charging. Ideal for devices such as medical products, educational robots, electric toys, LED desk lamps, flashlights, diving lamps, GPS modules, and massagers.

Wall plug Charger 8.4V 1.2A Global Versions:

EU plug 8.4V 1.2A li ion charger: Model HRY0841200EU.

UK plug 8.4V 1.2A li ion charger: Model HRY0841200UK.

AU plug 8.4V 1.2A li ion charger: Model HRY0841200AU.

JP plug 8.4V 1.2A li ion charger: Model HRY0841200JP.

All models output 8.4V 1.2A, 10.08W.

Key Features:

Certifications:

  • CE EMC, LVD, GS, UL, FCC, cUL, UKCA, SAA, PSE

Input Specifications:

  • Voltage: 90-264Vac (rated 100-240Vac)
  • Frequency: 47-63Hz
  • Current: 0.6A
  • Inrush Current: 35A

Output Specifications:

  • Constant Current :1.2A, voltage: 5V-8.4V
  • Constant Voltage: 8.4V, current 1.2A to 0.2A
  • Trickle Current: 0.2A to 0, voltage 8.4V
  • LED indicator: Red during charging, green when fully charged

Output

Charging Stage

LED Indicator

Current

Voltage

1.2A

5V-8.4V

Constant Current

RED

1.2A->0.2A

8.4V

Constant Voltage

RED

0.2A->0

8.4V

Trickle Current

GREEN
LED turn to green when fully charge battery packs

Compact and Portable Design

  • Lightweight and compact design makes it easy to use anywhere
  • Dimensions: 63 x 37 x 27.5 MM
  • Weight: 80g
Protection Features:
  • Over current, over voltage, short circuit, and reverse polarity protection
8.4V 1.2A Charging Curve:
  • Suitable for 7.4V 18650 lithium-ion batteries
8.4V 1.2A charger

Output Cables And Connectors:

Cables: UL2468 /UL2464 24AWG 22AWG 1M, 1.2M, 1.5M, 2M, 3M.
Connectors: 5521,5525,3.5*1.35,4.0*1.7 and other connectors supported.

Quality Assurance:

  • Experienced sales, engineers and rigorous supplier selection
  • Strict material inspection and advanced testing
  • 100% aging test for up to 4 hours at full load
  • Comprehensive after-sales support with 48-hour resolution

Company Profile:

Henryuan Group, with over a decade of R &D experience in lithium battery chargers, is a leading industry supplier known for superior performance and safety. Their 8.4V 1.2A li ion chargers are popular worldwide, including in the Americas, Europe, Austrlia and Asia. The 8.4V 1.2A li ion charger offers reliable and efficient charging with excellent EMI performance. Henryuan's engineers meet both standard and custom requirements, making their chargers ideal for various applications.

Henryuan 8.4V 1.2A Lithium Charger Range:

Various 8.4V li ion battery chargers with currents 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 6.5A, 7A, 8A, 9A, 10A.
