  • High Quality Korea KC KCC Listed 12V 4A Lead Acid Battery Charger
High Quality Korea KC KCC Listed 12V 4A Lead Acid Battery Charger

High Quality Korea KC KCC Listed 12V 4A Lead Acid Battery Charger

KC Listed 12V lead acid battery charger

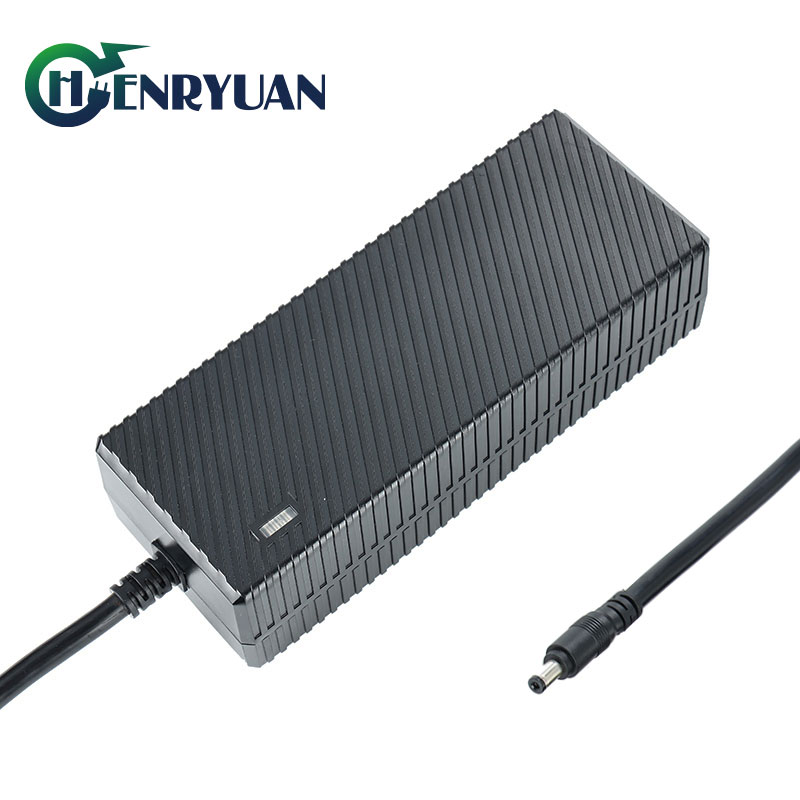

KC KCC Certified 12V Lead-Acid Battery Charger 4A – Fast, Reliable 12V SLA Battery Charger

Henryuan KC KCC certified 12V 4A lead acid battery chargers are engineered for fast, efficient, and safe charging of 12V lead acid battery packs. With an advanced charging scheme and multiple protection features (over-current, over-voltage, short circuit, reverse polarity), this charger ensures superior performance and safety.

This KC listed 12C SLA charger is versatile and widely used in power stations, electric golf trolleys, portable ultrasonic detectors, communication base stations, educational robots, electric toys, LED desk lamps, diving lamps, GPS modules, and more.

Safety Certificates:

  • CB, KC, KCC, PSE, UL, cUL, FCC, TUV, CE EMC, LVD, UKCA, SAA, CCC

Input Features:

  • Input Voltage: 90Vac-264Vac
  • Rated Input Voltage: 100Vac-240Vac
  • Input Frequence:47Hz-63Hz
  • Input Current:1.3A
  • Inrush Current: 60A

Output Specifications:

Model: Lead acid battery charger 12V 4A.
LED dual color indicator light, displaying charging status, red during charging, fully charged, green LED.

Output

Charging Stage

LED Indicator

Current

Voltage

4A

9V-14.6V

Constant Current

RED

4A->1.3A

14.6V

Constant Voltage

RED

1.3A->0

14.6V

Trickle Current

GREEN
LED turn to green when charging current below 1.3A

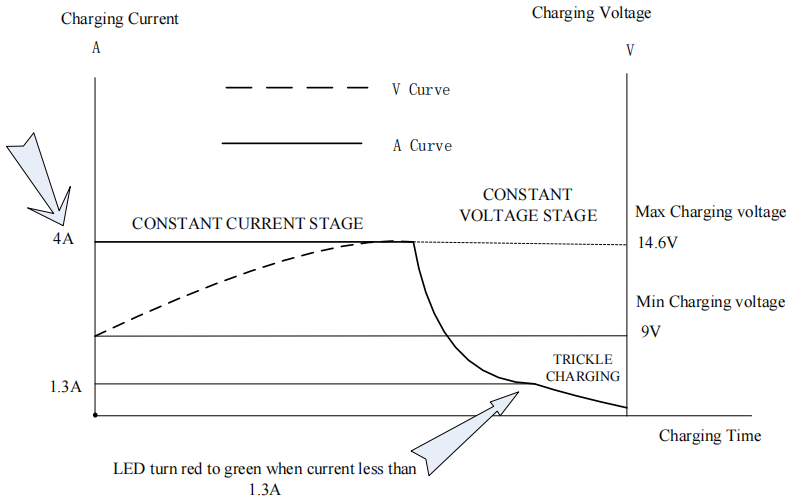

Charging Curve:

Reliable and fast 12V 4A charging for 12V lead acid battery packs.

Korea KC KCC 12V 4A charger

Protection Mechanisms

Over current protection, Over voltage protection, Short circuit protection, reverse polarity protection

Quality Assurance

  • 1. A team of sales engineers with over a decade of experience, able to accurately understand customer needs
  • 2. A rigorous system for selecting raw material suppliers
  • 3. Strict incoming material inspection process
  • 4. Experienced engineers with material solutions design for more than 20 years
  • 5. Skilled production stuff and advanced production testing equipment
  • 6.100% aging testing process, up to 4 hours of full load aging
  • 7. A comprehensive after-sales system with analysis, feedback, and resolution system within 48 hours

Henryuan 12V 4A lead-acid battery chargers are trusted worldwide with worldwide certificates KC, KCC, PSE, UL, CE, SAA, UKCA, TUV, UKCA, CCC. Serving markets in the Korea, Americas, Europe, Asia, and beyond. Available in a range of models (14.6V 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 4A, 5A, 7A, 10A, 15A, 20A, 25A), they provide tailored charging solutions for various applications. Contact Henryuan’s expert sales team to find the perfect charger for your needs.
