Portable CE UL SAA PSE Listed Trickle 12V 10A Lead-acid Battery Charger

Product No.：HRY14610000
Online Inquiry

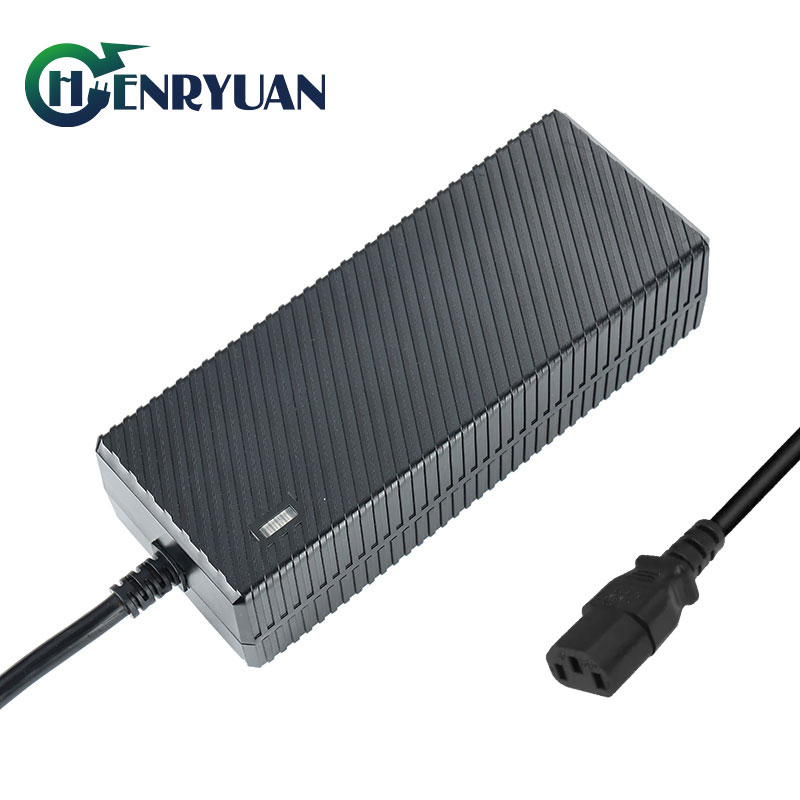

12V 10A lead-acid battery charger

12V 10A Lead-acid Battery Charger | Safe And Reliable Charger For 12V Lead-acid Battery

Product Overview

Henryuan 12V 10A Lead Acid Battery Charger is expertly designed for charging 12V SLA, AGM batteries. Engineered with advanced technology and certified by global safety standards, this charger ensures fast, safe, and reliable charging for a wide range of applications. Its robust design and superior performance make it an ideal choice for powering the 12V Lead-acid battery packs.

Key Features

Efficient and safe: This charger uses advanced charging schemes and high-quality components to provide high efficiency, fast charging and multiple safety protections.
Wide range of uses: Suitable for a variety of equipment from power stations to robotic systems and communication equipment.
Global safety certifications: With multiple safety certifications, including KC, KCC, PSE, CE EMC, LVD, UL, ETL, cUL, FCC,UKCA, SAA and CCC, it ensures compliance with international safety standards.
Environmentally friendly material: RoHS compliant

Technical Specifications

Safety Certifications:

CB, PSE, CE EMC, LVD, UL, ETL, cUL, FCC, UKCA, SAA, CCC, KC, KCC and RoHS

Input Features:

Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequency: 47Hz-63Hz
Input Current: 3A
Inrush Current: 60A

Output Specifications:

Reliable 12V 10A lead-acid battery charger with dual-color LED indicate.
charging status (Red during charging, Green when fully charged)

Constant Current: 10A fast charging current, LED shows red.
Constant Voltage: 14.6V, current decreases to 3A, LED shows red.
Trickle Charging: 3A to 0, fully charge the battery, LED shows green

Output		Charging Stage	LED Indicator
Output
Current	Voltage
10A	9V-14.6V	Constant Current	RED
10A->3A	14.6V	Constant Voltage	RED
3A->0	14.6V	Trickle Current	GREEN LED turn to green when fully charge battery packs

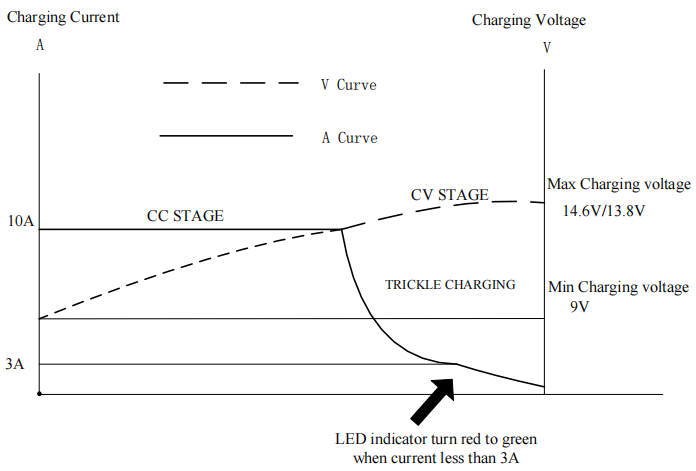

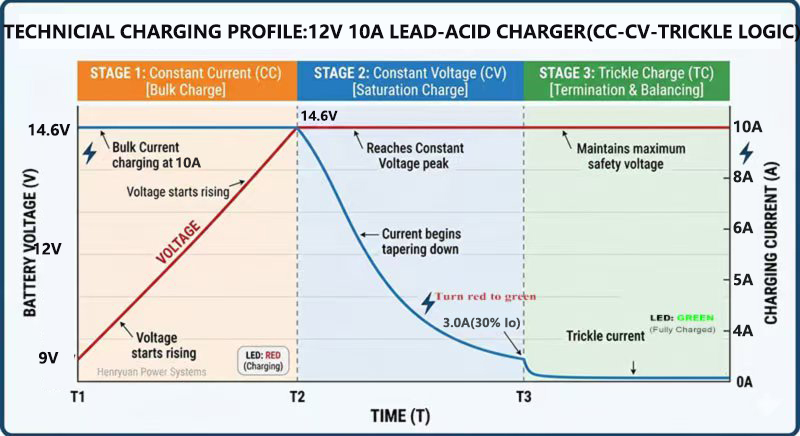

Charging Curve:

Reliable trickle 12V 10A lead acid battery charger that designed to extend battery life and ensure optimal performance.
12V10A lead acid battery charger

Protection Features

Overcurrent Protection
Overvoltage Protection
Short Circuit Protection
Reverse Polarity Protection

Variety Of Connector Supported:

Quality Assurance

1. Expert Team: Our sales engineers bring over a decade of experience in understanding and fulfilling customer needs.
2. Supplier Selection: We maintain a rigorous process for selecting raw material suppliers to ensure high quality.
3. Material Inspection: All incoming materials undergo strict inspection processes.
4. Experienced Engineers: With over 20 years of experience in material solutions design, our engineers ensure high-quality product development.
5. Skilled Production Staff: Our production team is highly skilled and utilizes advanced testing equipment.
6. Aging Testing: Each charger undergoes up to 4 hours of full-load aging testing to ensure reliability.
7. Comprehensive After-Sales Support: We offer a robust after-sales system that includes analysis, feedback, and resolution within 48 hours.

About Henryuan Group

With over 13 years of expertise in the production and R&D of lead-acid battery chargers, Henryuan Group stands as a leading supplier in this industry. Our lead-acid 12V 10A lead acid battery chargers are celebrated for their exceptional quality, safety, and performance, making them a preferred choice worldwide. We proudly export to regions including the Americas, Europe, the UK, Australia, New Zealand, and Asia, maintaining a strong market presence.

Henryuan 12V Lead-Acid Battery Charger Range

In addition to the 12V 10A Lead-acid charger, we offer a variety of models to meet diverse charging needs: 0.3A, 0.5A, 0.75A, 1A, 1.5A, 2A, 2.5A, 3A, 4A, 5A, 6A, 7A, 8A, 9A, 10A, 15A, 20A, 25A.
