Products >> Lead-acid Battery Charger >> 12V Lead-acid Battery Charger

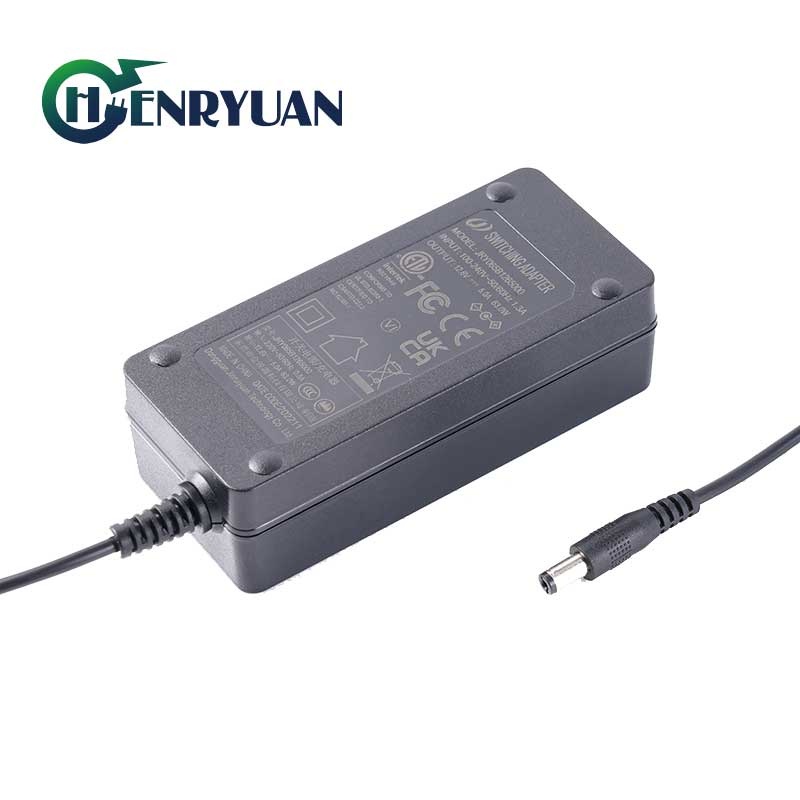

UL PSE CE SAA UKCA approved Lead-acid battery AC 12V 4A charger , the high quality 12V 4A lead-aicd battery chargers used for the 12V Lead-acid battery pack. Advanced charging scheme design, having multiple protection mechanisms with high quality components, which make charging safer and faster.They are used as a electric scooter charger, electric wheelchair charger, power station charger, electric serve machine charger, electric golf trolley charger, portable ultrasonic detector charger, communication base station, robot charger, electric toy charger, massager charger. etc
1. SAFETY CERTIFICATES:
UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC
2. Input:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:1.3A
Inrush Current: 60A
3. Output:

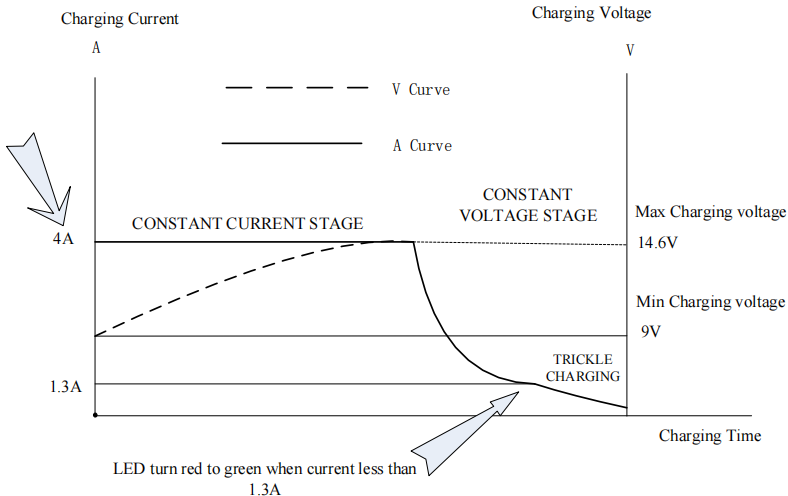

UL PSE CE SAA UKCA approved Lead-acid battery AC 12V 4A charger with LED dual color indicator light, displaying charging status, red during charging, fully charged, green LED.
Charging Status |
Charging Stage |
Output current |
Output voltage |
LED indicator |
|
Constant Current |
4A |
9V- 14.6V |
RED |
Constant Voltage |
4A->1.3A |
14.6V |
RED |
|
Fully charge |
Trickle Charging |
1.3A->0 |
14.6V |
GREEN |
5. PROTECTION FEATURE
Over current protection, Over voltage protection, Short circuit protection, reverse polarity protection
6. QUALITY ASSURANCE
1. A team of sales engineers with over a decade of experience, able to accurately understand customer needs
2. A rigorous system for selecting raw material suppliers
3. Strict incoming material inspection process
4. Experienced engineers with material solutions design for more than 20 years
5. Skilled production stuff and advanced production testing equipment
6.100% aging testing process, up to 4 hours of full load aging
7. A comprehensive after-sales system with analysis, feedback, and resolution system within 48 hours
Henryuan Group is a strong company with more than 13 years of experience in the production and R&D of lead-acid battery chargers and is a leading supplier in the industry. Its high-quality 12V 4A lead-acid battery charger is known for its superior performance and safety features, making it a popular choice among consumers worldwide. They are exported to the Americas, Europe, the United Kingdom, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan and other countries and regions with a high market share. The charging safely and quickly, making them ideal for a variety of applications. Good EMI performance and experienced engineers are able to perfectly meet customer requirements for existing products or products in the development stage.In short, the high-quality 12V 4A lead-acid battery charger is a reliable and efficient solution for your charging needs. There are other models of 12V lead-acid chargers, such as 0.5A 1A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6A 7A 8A 9A 10A 15A .etc . If you are looking for a safe, reliable, and efficient 12V lead-acid battery charger, just start by contacting Henryuan's sales engineers.
