Products >> Lead-acid Battery Charger >> 12V Lead-acid Battery Charger

  • Safety certificates listed UL PSE SAA CE GS UKCA 12V lead-acid battery 4A 5A charger 14.6V 4A 5A SLA charger
Safety certificates listed UL PSE SAA CE GS UKCA 12V lead-acid battery 4A 5A charger 14.6V 4A 5A SLA charger

Safety certificates listed UL PSE SAA CE GS UKCA 12V lead-acid battery 4A 5A charger 14.6V 4A 5A SLA charger

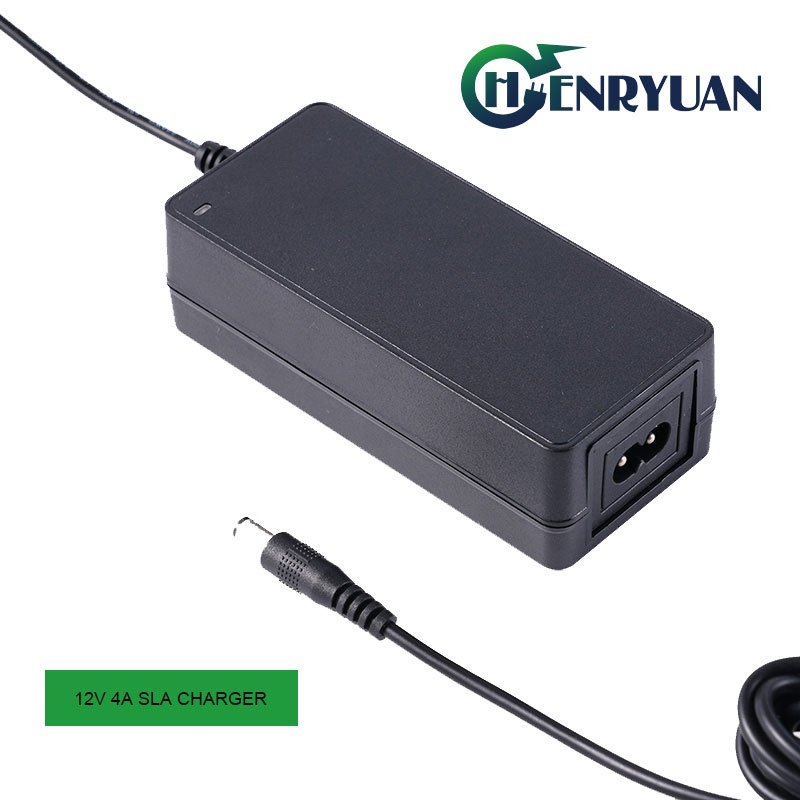

 Henryuan Safety certificates listed UL PSE SAA CE GS UKCA 12V lead-acid battery 4A 5A charger 14.6V 4A 5A , the high quality 12V lead-aicd battery chargers used for the 12V Lead-acid battery pack. Advanced charging scheme design, having multiple protection mechanisms with high quality components, which make charging safer and faster.They are used as a power station charger, electric golf trolley charger, portable ultrasonic detector charger, communication base station, educational robot charger, electric toy charger, LED desk lamp charger, flashlight charger, diving lamp charger, GPS module charger, messager charger. etc


1. SAFETY CERTIFICATES:
UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC

2. Input:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:1.3A
Inrush Current: 60A

3. Output:
Safety certificates listed UL PSE SAA CE GS UKCA 12V lead-acid battery 4A 5A charger 14.6V 4A 5A with LED dual color indicator light, displaying charging status, red during charging, fully charged, green LED. For example the 14.6V 4A LIFePO4 battery charger

Charging Status

Charging Stage

Output current

Output voltage

LED indicator


Charging

Constant Current

4A

9V-14.6V

RED

Constant Voltage

4A->1.3A

14.6V

RED

 Fully charge

Trickle Charging

1.3A->0

14.6V

GREEN

4. CHARGING CURVE:
12V 4A lead-acid battery charger


5. PROTECTION FEATURE
 Over current protection, Over voltage protection, Short circuit protection, reverse polarity protection

6. QUALITY ASSURANCE

1. A team of sales engineers with over a decade of experience, able to accurately understand customer needs
2. A rigorous system for selecting raw material suppliers
3. Strict incoming material inspection process
4. Experienced engineers with material solutions design for more than 20 years
5. Skilled production stuff and advanced production testing equipment
6.100% aging testing process, up to 4 hours of full load aging
7.
A comprehensive after-sales system with analysis, feedback, and resolution system within 48 hours

Henryuan Group is a strong company with more than 13 years of experience in the production and R&D of lead-acid battery chargers and is a leading supplier in the industry. Its high-quality 12V lead-acid battery charger is known for its superior performance and safety features, making it a popular choice among consumers worldwide. They are exported to the Americas, Europe, the United Kingdom, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan and other countries and regions with a high market share. The charging safely and quickly, making them ideal for a variety of applications.  Good EMI performance and experienced engineers are able to perfectly meet customer requirements for existing products or  products in the development stage.In short, the high-quality 12V lead-acid battery charger is a reliable and efficient solution for your charging needs. There are other models of 12V lead-acid chargers, such as 0.5A 1A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6A 7A 8A 9A 10A 15A etc . If you are looking for a safe, reliable, and efficient lead-acid battery charger, just start by contacting Henryuan's sales engineers.

#12V lead-aicd charger #12V 4A lead-acid charger #12V Lead-acid battery charger #lead-acid battery charger factory
