Portable 48V 4A LiFePO4 Battery Electric Outboard Motor Charger

Product No.：HRY5483750
Online Inquiry

48V outboard motor charger

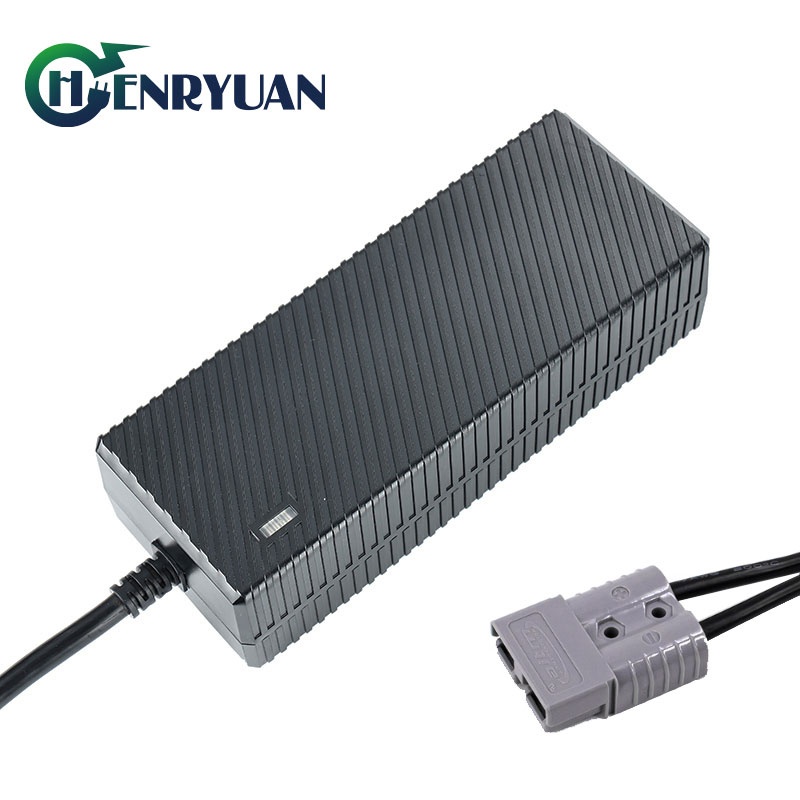

High Quality Portable 48V 4A LiFePO4 Battery Charger For Electric Outboard Motor

Product Description:
48V 4A LiFePO4 Battery Charger | 54.8V 4A LFP Battery Charger

The Henryuan 48V 4A LiFePO4 Battery Charger output 54.8V 4A offers top level charging performance for a variety of 15S 48V LFP battery applications. With UL, cUL, PSE, CE, EMC, LVD, SAA, and FCC certifications, this charger is built to meet the highest safety standards globally, ensuring safe and efficient charging.

Key Applications:

Electric marine, Electric outboard motors.
Communication Base Stations, Robots.
LED Lighting, Diving Equipments and other 48V LiFePO4 battery powered equipments.

Safety Certifications:

Worldwide certificates
UL, ETL, cUL, FCC, PSE, CE, EMC, LVD, UKCA, SAA, KC, CCC and RoHS

Input Specifications:

Voltage Range: 90Vac-264Vac
Rated Voltage: 100Vac-240Vac
Frequency: 50/60Hz
Current: 3A
Inrush Current: 60A

Output Specifications:

Model: 48V LiFePO4 Battery Charger
Power: 219.2W
LED Indicator: Dual color (Red during charging, Green when fully charged)

Output		Charging Stage	LED Indicator
Output
Current	Voltage
4A	30V-54.8V	Constant Current	RED
4A->0.4A	54.8V	Constant Voltage	RED
0.4A->0	54.8V	Trickle Current	GREEN LED turn red to green when fully charge the battery

Charging Stages:

Constant Current: 4A fast charging, voltage 30V - 54.8V, LED red.
Constant Voltage: 54.8V max, current 4A to 0.4A, LED red.
Trickle Current: 0.4A to 0, voltage 54.8V max, LED green.

Charging Curve:

The 15S 48V LiFPO4 battery electric outboard motor charger maintains a consistent and efficient charging curve, preserving battery health.

48V 4A electric outboard motor charger

Compact and Portable Design

Its lightweight and compact design makes it easy to carry and store,but large power
Dimensions: 176 x 80 x 47 MM
Weight: 0.7kg

Protection Features:

Overcurrent Protection
Overvoltage Protection
Short Circuit Protection
Reverse Polarity Protection

Quality Assurance:

Experienced Sales Engineers: Over a decade of expertise in understanding and meeting customer needs.
Rigorous Material Selection: Only top-quality raw materials are used.
Strict Inspection Process: Comprehensive incoming material inspections ensure quality.
Expert Engineers: More than 20 years of design experience.
Skilled Production Team: Advanced production and testing equipment.
Aging Testing: 100% aging testing process, up to 4 hours at full load.
Comprehensive After-Sales Support: Feedback and resolution within 48 hours.

About Henryuan Group:

With over 13 years of experience in the production and R&D of 54.8V 4A lifepo4 battery chargers, Henryuan Group is a leading charger industry supplier. Our 48V electric outboard motor lifepo4 battery chargers are globally recognized for their superior performance and safety features. Exported to the Americas, Europe, the UK, Australia, New Zealand, and Asia, they are trusted by consumers worldwide for a variety of applications.
