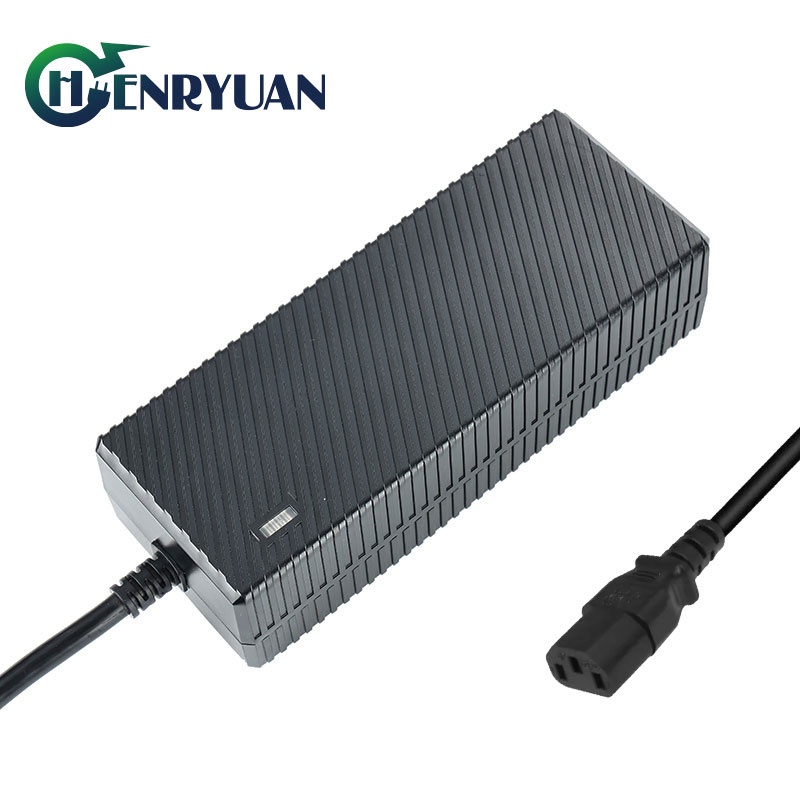

60V 20Ah Lead Acid Battery Charger | 60V 3A 4A SLA Charger | Certificates UL, CE, SAA, PSE, UKCA

Henryuan durable and portable 60V 20Ah Lead acid battery charger, the high quality 60V 3A 4A SLA battery charger, which is specially designed for 60V AGM battery packs. With its advanced design and top quality components, making sure both safety and speed during the charging process.

Global Safety Certificates:

• Safety Certifications: UL, CB, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC.

Customized Charging: Customized voltage, current, and DC output plug for various 60V Lead-acid battery packs.

Input Features:

• Voltage: 90Vac-264Vac (Rated: 100Vac-240Vac)
• Frequency: 50/60Hz
• Current: 3A/5A (Inrush Current: 60A)
• AC Inlet: 2pin IEC320-C8, 3pin IEC320-C6, and IEC320-C14.

Output Inspecifications:

• Model: 60V 4A Lead-acid battery charger
• LED Indicator: Dual-color LED displays charging status (LED indicator turn to green when fully charge battery packs).
• Charging Stage: Constant Current fast charging(4A), then Constant Voltage (73V) until trickle current(1.3A to 0).

Output		Charging Stage	LED Indicator
Current	Voltage
4A	45V-73V	Constant Current	RED
4A->1.3A	73V	Constant Voltage	RED
1.3A->0	73V	Trickle Current	GREEN LED turn red to green when fully charge battery packs

 Reliable Charging Curve Of 60V 3A AGM Battery Charger:



Protection Mechanisms: Over current protection, Over voltage protection, Short circuit protection, and Reverse polarity protection.

Quality Assurance:

• Sales Engineers with over a decade of expertise.
• Rigorous material selection and incoming inspection processes.
• Experienced engineers for over 20 years in material solutions design.
• Skilled production staff and advanced testing equipment.
• 100% aging testing process, ensuring reliability.
• Comprehensive after-sales system for prompt issue resolution within 48 hours.

Advanced Production And Test Devices:

Henryuan Group: With over 13 years of experience, Henryuan Group leads the industry in Lead-acid battery charger production and R&D. Our high quality 60V 3A 4A SLA battery chargers are renowned for superior performance and safety globally. Exported to numerous countries and regions, these 60V AMG battery chargers offer both safety and efficiency, meeting diverse customer requirements. Whether you need an existing product or a customized solution, Henryuan's experienced engineers ensure satisfaction. For safe, reliable, and efficient charging, trust Henryuan's range of 60V Lead-acid battery chargers(1A, 1.5A, 2A, 3A, 4A, 5A, 5.5A).
