Products >> NIMH Battery Charger >> 14V NIMH Battery Charger

  • UL PSE CE SAA GS listed 10S 12V NIMH battery charger 14V 300mA 500mA 1A nimh charger
UL PSE CE SAA GS listed 10S 12V NIMH battery charger 14V 300mA 500mA 1A nimh charger

UL PSE CE SAA GS listed 10S 12V NIMH battery charger 14V 300mA 500mA 1A nimh charger

14V 0.3A nimh charger

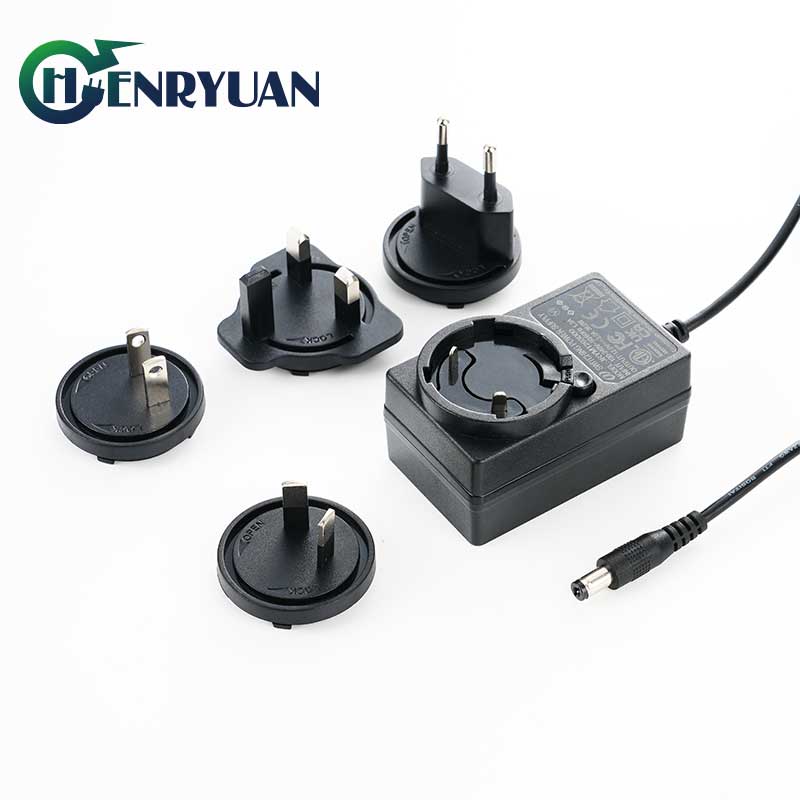

Premium 14V NIMH Battery Charger with Global Compatibility

UL, PSE, CE, SAA, GS Certified 10S 12V NIMH Battery Charger
Available in 14V 300mA, 500mA, 1A Options
Compatible with AU, EU, UK, US, JP, and CN Wall Plugs

Elevate your charging experience with our high-quality 14V NIMH battery charger, designed for 10S 12V NIMH batteries. This advanced charger ensures safe, efficient, and fast charging for various applications, including power tools, educational robots, electric toys, LED desk lamps, flashlights, diving lamps, and GPS modules.

Key Features

1. Safety Certifications:

Our Multi plug 14V Nimh battery chargers come with a comprehensive set of safety certifications, including UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, and CCC, ensuring compliance with global standards.

2. Input Specifications:

  • Voltage: 90Vac-264Vac
  • Rated Voltage: 100Vac-240Vac
  • Frequency: 47Hz-63Hz
  • Current: 0.6A
  • Inrush Current: 35A

3. Output Specifications:

  • Model: UL, PSE, CE, SAA, GS Certified
  • Voltage:14V
  • Current Options: 300mA, 500mA, 1A
  • Plugs: US, JP, EU, AU, UK, CN
  • LED Indicator: Red (charging), Green (fully charged)

Output

Charging Stage

LED Indicator

Current

Voltage

300mA

9V-14V

Constant Current

RED

300mA->100mA

14V

Constant Voltage

RED

100mA->0

14V

Trickle Current

GREEN
LED turn red to green when charging current below 100mA

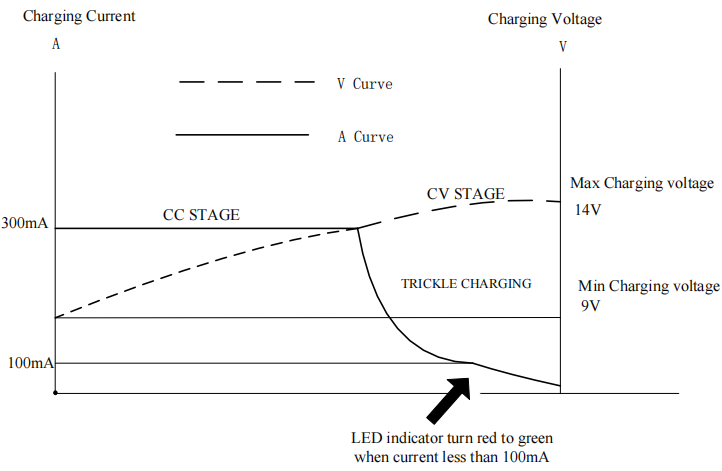

4. Charging Curve:
  • The 14V NIMH charger ensures a smooth and efficient charging curve, maintaining optimal battery health.
  • Constant Current: 300mA, Voltage 9V - 14V. LED red.
  • Constant Voltage: 14V, Current 300mA to 100mA. LED red.
  • Trickle Current:100mA to 0, voltage 14V, LED green.



14V 0.3A nimh charger

5. Protection Features:

  • Overcurrent Protection
  • Overvoltage Protection
  • Short Circuit Protection
  • Reverse Polarity Protection

6. Quality Assurance:



  • Experienced sales engineers with over a decade of expertise.
  • Rigorous raw material selection process.
  • Strict incoming material inspections.
  • Over 20 years of design experience from our engineering team.
  • Skilled production staff and advanced testing equipment.
  • Comprehensive aging testing process, up to 4 hours at full load.
  • Dedicated after-sales support, with feedback and resolution within 48 hours.

About Henryuan Group

With over 13 years of experience in the production and R&D of NIMH battery chargers, Henryuan Group is a leader in the industry. Our high-quality 14V 0.3A NIMH battery chargers are renowned for their superior performance and safety features. Exported globally, including to the Americas, Europe, UK, Australia, New Zealand, and Asia, our chargers are trusted by consumers worldwide.

Contact Us:

Looking for a safe, reliable, and efficient NIMH battery charger? Contact Henryuan's expert sales engineers today to find the perfect solution for your needs.
