Products >> NIMH Battery Charger >> 14V NIMH Battery Charger

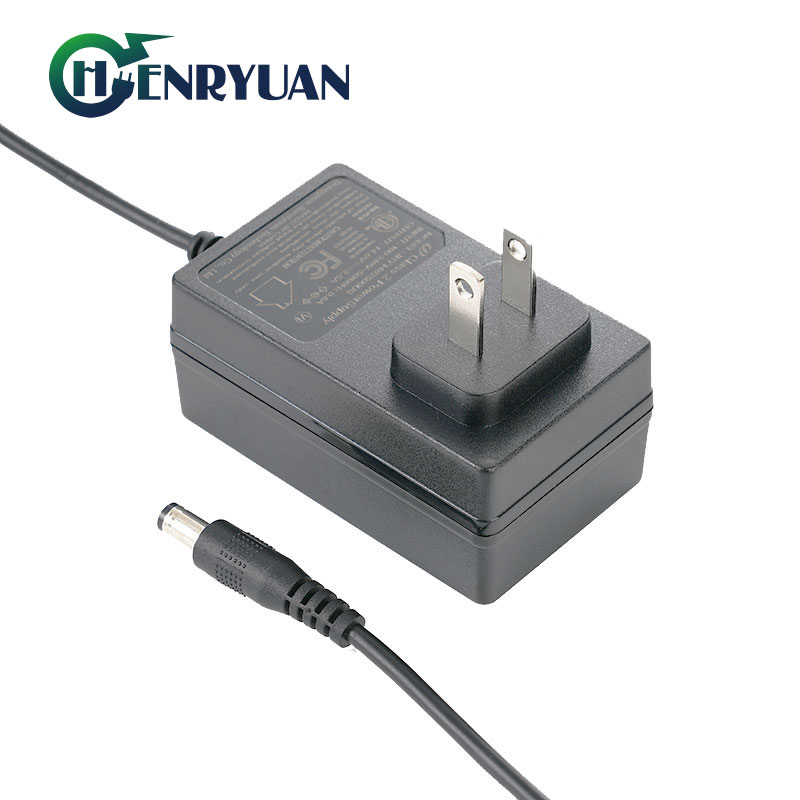

  • 14V 300mA 500mA 1A NIMH battery charger adapter UL cUl FCC American plug
14V 300mA 500mA 1A NIMH battery charger adapter UL cUl FCC American plug

14V 300mA 500mA 1A NIMH battery charger adapter UL cUl FCC American plug

14V battery charger for power tools
UL PSE CE SAA GS listed 10S 12V NIMH battery charger 14V 300mA 500mA 1A NIMH battery charger adapter UL cUl FCC American plug, High quality NiMH charger for 12V NIMH rechargeable batteries. Advanced charging scheme design, having multiple protection mechanisms with h
igh quality components, which make charging safer and faster.It is used as a 12V nimh battery charger, power tool charger, educational robot charger, electric toy charger LED desk lamp charger, flashlight charger, diving lamp charger, GPS module charger, etc
14V 0.3A nimh chargers for other countries:
US plug 14V nimh charger 0.3A, model: HRY1400300US, Output 14V 0.3A, 4.2W
UK plug 14V nimh charger 0.3A, model: HRY1400300UK, Output 14V 0.3A, 4.2W
EU plug 14V nimh charger 0.3A, model: HRY1400300EU, Output 14V 0.3A, 4.2W
AU plug 14V nimh charger 0.3A, model: HRY1400300AU, Output 14V 0.3A, 4.2W
JP plug 14V nimh charger 0.3A, model: HRY1400300JP, Output 14V 0.3A, 4.2W

1. SAFETY CERTIFICATES:
UL, ETL, cUL, FCC, UKCA, CE EMC, LVD, SAA, PSE

2. Input:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:0.6A
Inrush Current: 35A

3. Output:
14V 300mA 500mA 1A NIMH battery charger adapter UL cUl FCC American plug with LED dual color indicator light, displaying charging status, red during charging, fully charged, green LED. Take the 14V500mA nimh charger for example.

Charging Status

Charging Stage

Output current

Output voltage

LED indicator


Charging

Constant Current

0.5A

9V-14V

RED

Constant Voltage

0.5A->0.15A

14V

RED

 Fully charge

Trickle Charging

0.15A->0

14V

GREEN

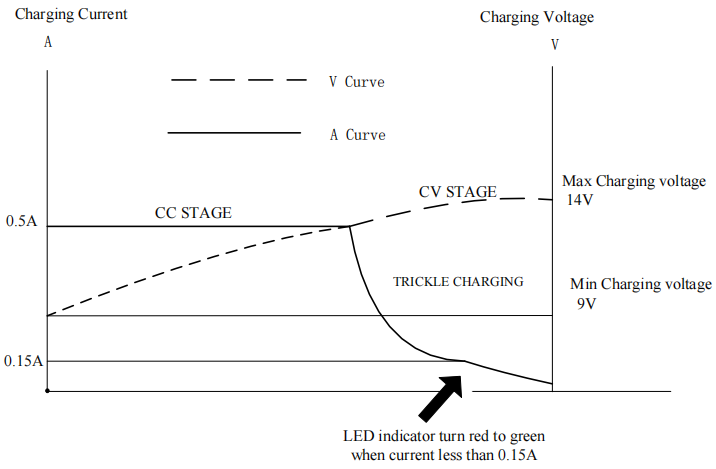

4. CHARGING CURVE:

12V nimh rechargeable charger
5. PROTECTION FEATURE
 Over current protection, Over voltage protection, Short circuit protection, reverse polarity protection

6. QUALITY ASSURANCE

1. A team of sales engineers with over a decade of experience, able to accurately understand customer needs
2. A rigorous system for selecting raw material suppliers
3. Strict incoming material inspection process
4. Experienced engineers with material solutions design for more than 20 years
5. Skilled production stuff and advanced production testing equipment
6.100% aging testing process, up to 4 hours of full load aging
7.
A comprehensive after-sales system with analysis, feedback, and resolution system within 48 hours


Henryuan Group is a strong company with more than 13 years of experience in the production and R&D of NIMH battery chargers and is a leading supplier in the industry. Its high-quality 14V nimh battery charger is known for its superior performance and safety features, making it a popular choice among consumers worldwide. They are exported to the Americas, Europe, the United Kingdom, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan and other countries and regions with a high market share. The charging safely and quickly, making them ideal for a variety of applications. Good EMI performance and experienced engineers are able to perfectly meet customer requirements for existing products or  products in the development stage.In short, the high-quality 14V rechargeable NIMH battery charger is a reliable and efficient solution for your charging needs. There are other models of 14V battery charger for NiMH, such as 14V 0.3A 0.5A 1A 1.5A 2A etc . If you are looking for a safe, reliable, and efficient NIMH battery charger, just start by contacting Henryuan's sales engineers.
