HENRYUAN HENRYUAN

Products >> Lithium Ion Battery Charger >> 67.2V Lithium Ion Battery Charger

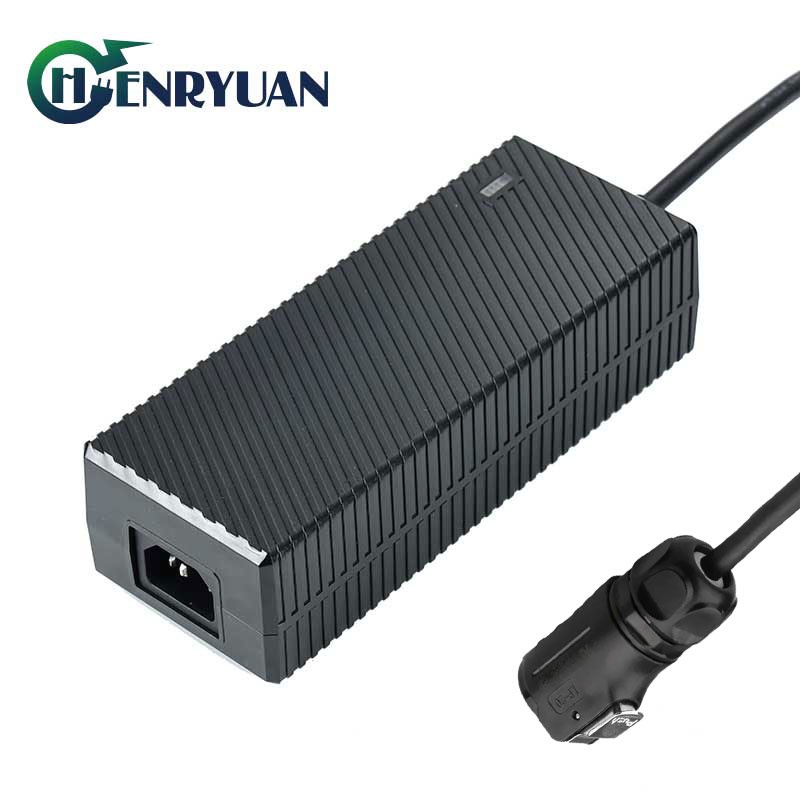

  • CNLINKO waterproof connector 60V 16S lithium ion battery 67.2V 3A 3.5A 4A battey AC charger
CNLINKO waterproof connector 60V 16S lithium ion battery 67.2V 3A 3.5A 4A battey AC charger

CNLINKO waterproof connector 60V 16S lithium ion battery 67.2V 3A 3.5A 4A battey AC charger

67.2V lithium ion charger
Henryuan CNLINKO waterproof connector 60V 16S lithium ion battery 67.2V 3A 3.5A 4A battey AC charger, UL, cUL, FCC, PSE, CE EMC LVD, GS, SAA, UKCA safety certificates approved, the high quality 67.2V
 lithium ion battery chargers used for the 16s 60V lithium ion battery. Advanced charging scheme design, having multiple protection mechanisms with high quality components, which make charging safer and faster.They are used as a 60V lithium battery charger, robot charger,electric outboard motor charger, electric bike charger, electric scooter charger, electric skateboard charger,X-ray machine charger, diving devices charger etc.


1. SAFETY CERTIFICATES:
UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC

2. Input:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:3A
Inrush Current: 35A

3. Output:
High quality CNLINKO waterproof connector 60V 16S lithium ion battery 67.2V 3A 3.5A 4A battey AC charger with LED dual color indicator light, displaying charging status, red during charging, fully charged, green LED.
For example the 67.2V 3A lithium battery chargers.

Charging Status

Charging Stage

Output current

Output voltage

LED indicator


Charging

Constant Current

3A

40V-67.2V

RED

Constant Voltage

3A->0.3A

67.2V

RED

 Fully charge

Trickle Charging

0.3A->0

67.2V

GREEN

4. CHARGING CURVE:
60V lithium ion charger


5. PROTECTION FEATURE
 Over current protection, Over voltage protection, Short circuit protection, reverse polarity protection

6. QUALITY ASSURANCE

1. A team of sales engineers with over a decade of experience, able to accurately understand customer needs
2. A rigorous system for selecting raw material suppliers
3. Strict incoming material inspection process
4. Experienced engineers with material solutions design for more than 20 years
5. Skilled production stuff and advanced production testing equipment
6.100% aging testing process, up to 4 hours of full load aging
7.
A comprehensive after-sales system with analysis, feedback, and resolution system within 48 hours

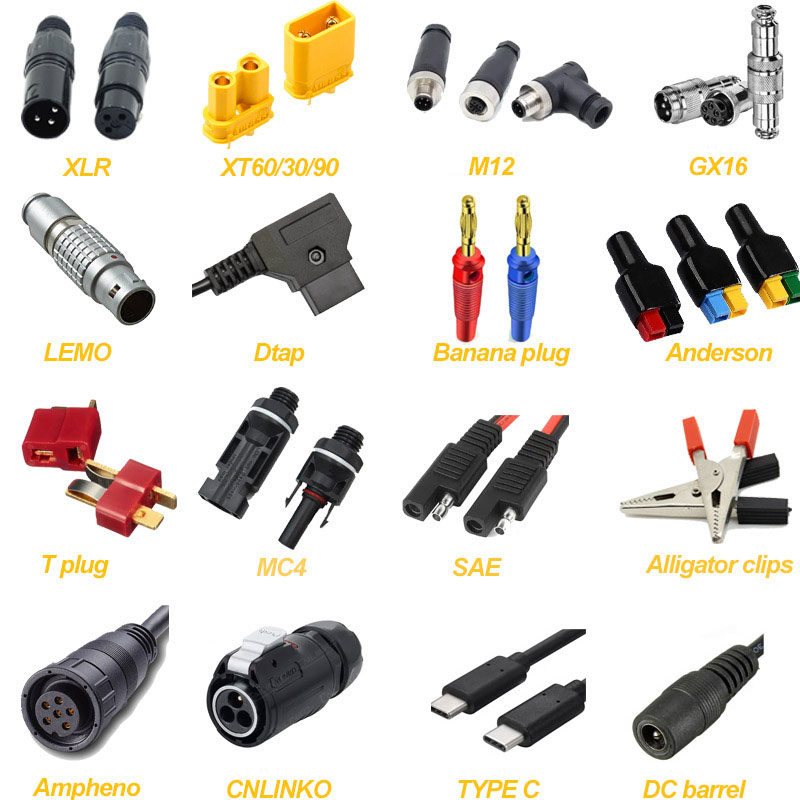

7. OUTPUT CONNECTORS
Different connectors are optional.
Output connectors

Henryuan Group is a strong company with more than 13 years of experience in the production and R&D of lithium battery chargers and is a leading supplier in the industry. Its high-quality 60V lithium ion battery charger is known for its superior performance and safety features, making it a popular choice among consumers worldwide. They are exported to the Americas, Europe, the United Kingdom, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan and other countries and regions with a high market share. The charging safely and quickly, making them ideal for a variety of applications. Good EMI performance and experienced engineers are able to perfectly meet customer requirements for existing products or  products in the development stage.In short, the high-quality 67.2V lithium ion battery charger is a reliable and efficient solution for your charging needs. There are other models of 67.2V chargers, such as 1A 1.5A 2A 2.5A 3A 3.5A 4A .etc . If you are looking for a safe, reliable, and efficient 63V lithium battery charger, just start by contacting Henryuan's sales engineers.

#60V lithium charger #67.2V li-ion charger #electric skateboard charger #electric scooter charger #67.2V lithium battery charger factory
