Products >> Lithium Ion Battery Charger >> 67.2V Lithium Ion Battery Charger

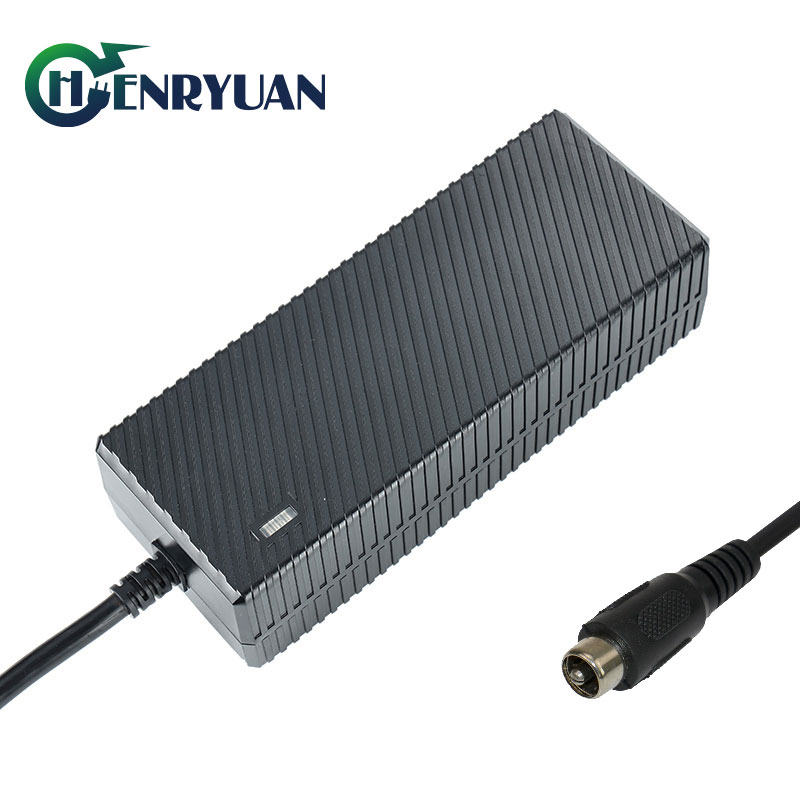

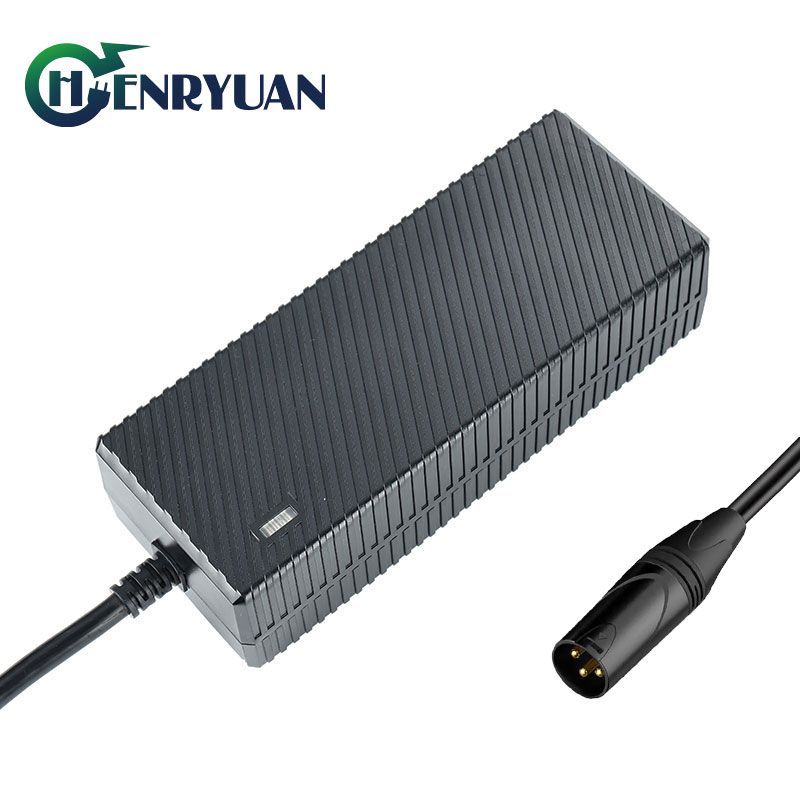

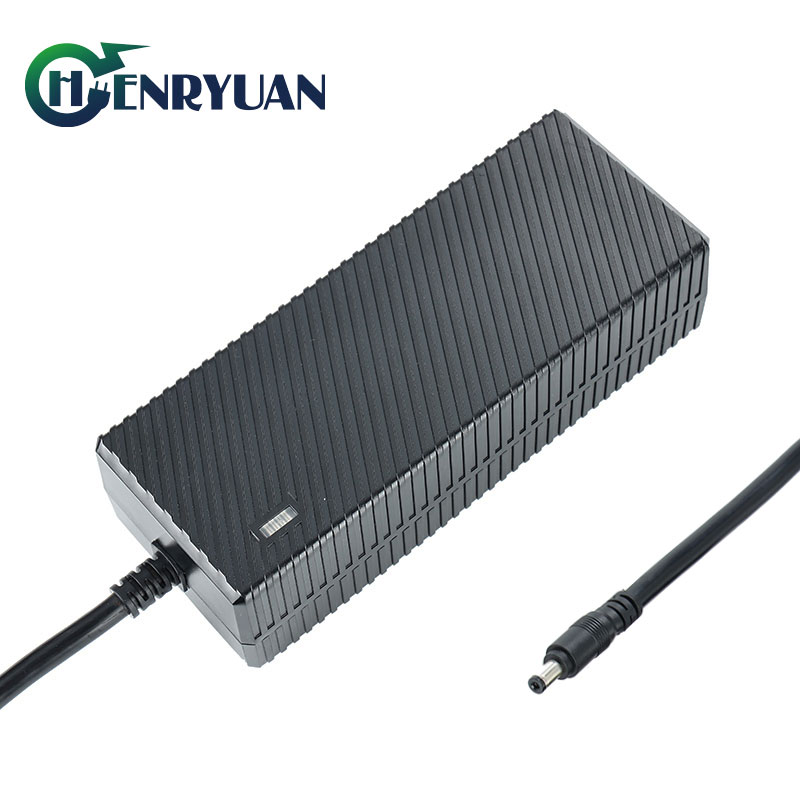

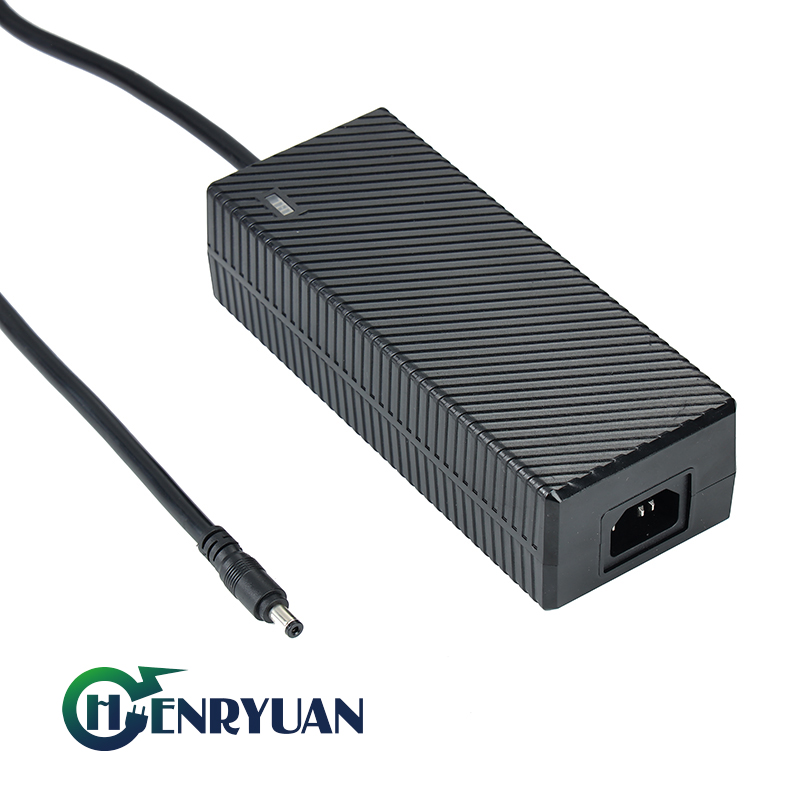

Introducing the Henryuan the best 16S 20Ah 60V lithium ion battery charger 67.2V 2A chargerr, the premier 67.2V 2A lithium ion battery charger tailored for 16s 60V lithium ion batteries. With its advanced design and top-tier components, this charger ensures both safety and speed during the charging process.
Product Highlights:
Safety Certifications: UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC.
Customized Charging: Customized voltage, current, and DC output plug for various 16S 60V lithium battery packs.
Input Specifications:
Safety Certifications: UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC.
Customized Charging: Customized voltage, current, and DC output plug for various 16S 60V lithium battery packs.
Input Specifications:
Voltage: 90Vac-264Vac (Rated: 100Vac-240Vac)
Frequency: 47Hz-63Hz
Current: 3A (Inrush Current: 60A)
AC Inlet: 2pin IEC320-C8, 3pin IEC320-C6, and IEC320-C14.
Output Features:
Protection Mechanisms: Over current protection, Over voltage protection, Short circuit protection, and Reverse polarity protection.
Output Features:
LED Indicator: Dual-color LED displays charging status (Red for charging, Green for fully charged).
Charging Stage: Constant Current (2A) until 67.2V, then Constant Voltage (67.2V) until trickle current.

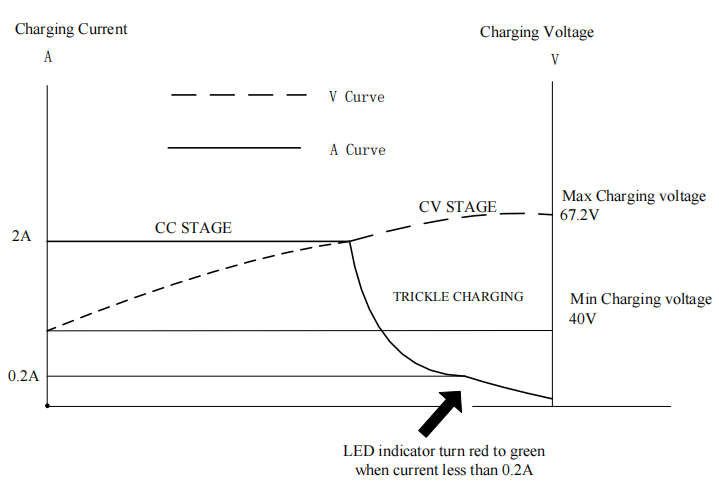

Charging Curve:
|
Output |
Charging Stage |
LED Indicator |
|
|
Current |
Voltage |
||
|
2A |
40V-60V |
Constant Current |
RED |
|
2A->0.2A |
60V |
Constant Voltage |
RED |
|
0.2A->0 |
60V |
Trickle Current |
GREEN |
Charging Curve:
Protection Mechanisms: Over current protection, Over voltage protection, Short circuit protection, and Reverse polarity protection.
Quality Assurance:
Sales Engineers with over a decade of expertise.
Rigorous material selection and incoming inspection processes.
Experienced engineers for over 20 years in material solutions design.
Skilled production staff and advanced testing equipment.
100% aging testing process, ensuring reliability.
Comprehensive after-sales system for prompt issue resolution within 48 hours.
Henryuan Group: With over 13 years of experience, Henryuan Group leads the industry in lithium battery charger production and R&D. Their high quality 67.2V 2A lithium ion battery chargers are renowned for superior performance and safety globally. Exported to numerous countries and regions, these 60V lithium chargers offer both safety and efficiency, meeting diverse customer requirements. Whether you need an existing product or a customized solution, Henryuan's experienced engineers ensure satisfaction. For safe, reliable, and efficient charging, trust Henryuan's range of 60V lithium chargers.
#60v lithium battery charger #60v 20ah lithium battery charger #60v lithium charger #60v lithium ion battery charge #67.2V 2A lithium battery charger
