Products >> Lithium Ion Battery Charger >> 29.4V Lithium Ion Battery Charger

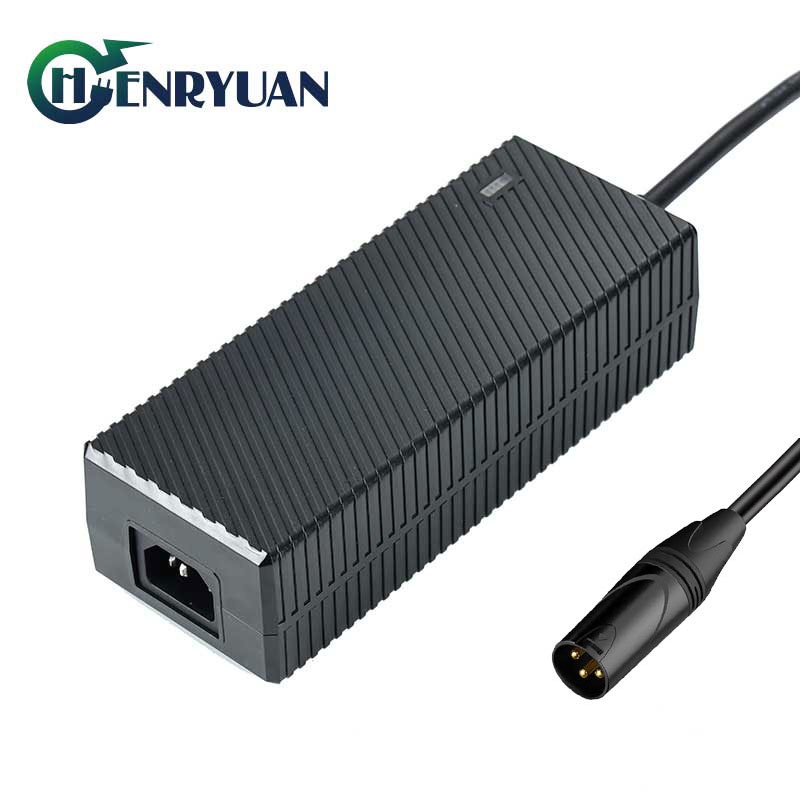

Henryuan 120 240 volt lithium battery charger 24V charging voltage 29.4V is approved by UL cUL FCC PSE CE SAA UKCA CCC, the high quality 24 volt lithium battery chargers are used for the 7s 24 volt lithium ion battery. Advanced charging scheme design, having multiple protection mechanisms with high quality components, which make charging safer and faster.They are used as the 24V lithium battery charger, robot charger,electric scrubber charger, electric scooter charger, electric skateboard charger, hoverboard charger,LED lighting charger, diving device charger. etc
24V 2A lithium battery charger, model:HRY2942000, output 29.4Vdc, 2 Amp, power 58.8W
24V 3A lithium battery charger, model:HRY2943000, output 29.4Vdc, 3 Amp, power 88.2W
24V 4A lithium battery charger, model:HRY2944000, output 29.4Vdc, 4 Amp, power 117.6W
24V 5A lithium battery charger, model:HRY2945000, output 29.4Vdc, 5 Amp, power 147W
24V 6A lithium battery charger, model:HRY2946000, output 29.4Vdc, 6 Amp, power 176.4W
24V 7A lithium battery charger, model:HRY2947000, output 29.4Vdc, 7 Amp, power 205.8W
24V 8A lithium battery charger, model:HRY2948000, output 29.4Vdc, 8 Amp, power 235.2W
24V 9A lithium battery charger, model:HRY2949000, output 29.4Vdc, 9 Amp, power 264.6W
1. SAFETY CERTIFICATES:
UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC
2. Input:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:3A
Inrush Current: 60A
AC inlet: 3pin IEC320-C6, 2pin IEC320-C8, 3pin IEC320-C14
3. Output:
120 240 volt lithium battery charger 24V output 29.4V charger with LED dual color indicator light, displaying charging status, red during charging, fully charged, green LED.

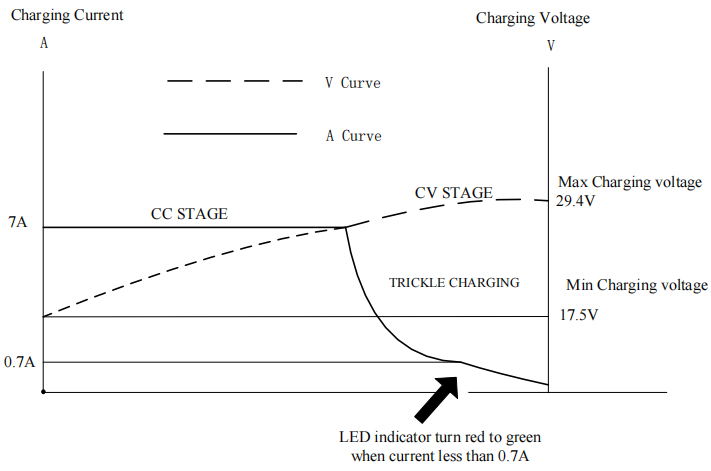

29.4V 7A charger output below:
Output |
Charging Stage |
LED Indicator |
|
Current |
Voltage |
||
7A |
17.5V- 29.4V |
Constant Current |
RED |
7A->0.7A |
29.4V |
Constant Voltage |
RED |
0.7A->0 |
29.4V |
Trickle Current |
GREEN |
5. PROTECTION FEATURE
Over current protection, Over voltage protection, Short circuit protection, reverse polarity protection
6. QUALITY ASSURANCE
1. A team of sales engineers with over a decade of experience, able to accurately understand customer needs
2. A rigorous system for selecting raw material suppliers
3. Strict incoming material inspection process
4. Experienced engineers with material solutions design for more than 20 years
5. Skilled production stuff and advanced production testing equipment
6.100% aging testing process, up to 4 hours of full load aging
7. A comprehensive after-sales system with analysis, feedback, and resolution system within 48 hours
Henryuan Group is a strong company with more than 13 years of experience in the production and R&D of 29.4V lithium battery chargers and is a leading supplier in the industry. Its high-quality 29.4 v lithium battery charger is known for its superior performance and safety features, making it a popular choice among consumers worldwide. They are exported to the Americas, Europe, the United Kingdom, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan and other countries and regions with a high market share. The charging safely and quickly, making them ideal for a variety of applications. Good EMI performance and experienced engineers are able to perfectly meet customer requirements for existing products or products in the development stage.In short, the high-quality 24v lithium battery charger is a reliable and efficient solution for your charging needs. There are other models of lithium ion 24 volt lithium battery chargers, such as 29.4V 0.5A 1A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6A 7A 8A 9A 10A 15A etc . If you are looking for a safe, reliable, and efficient 24V lithium charger, just start by contacting Henryuan's sales engineers.
