Products >> Lithium Ion Battery Charger >> 29.4V Lithium Ion Battery Charger

  • 24V 5A Lithium Ion Battery Charger 29.4V 5A China manufacturer

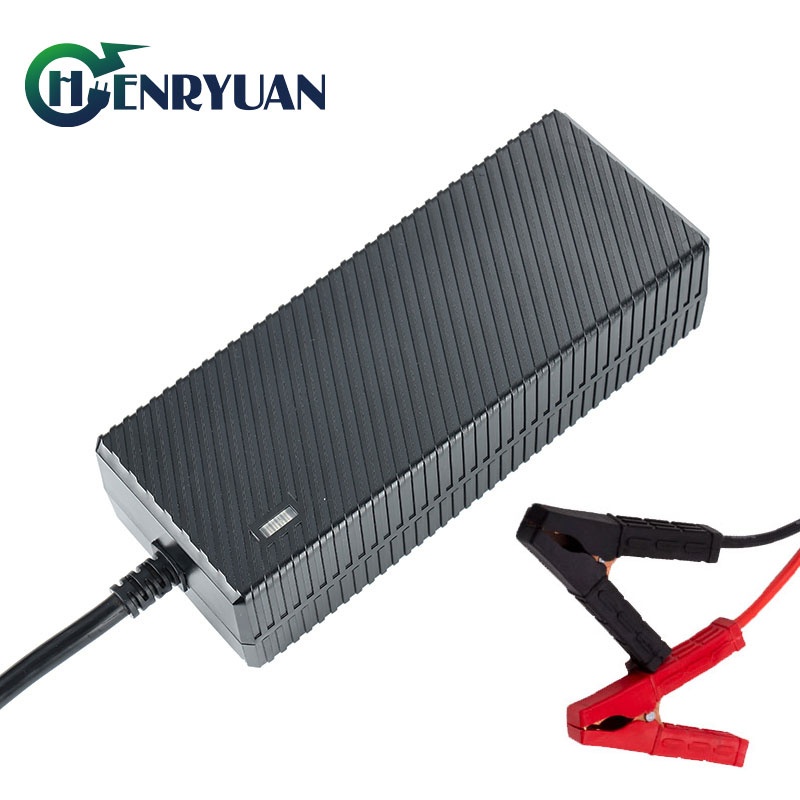

24V 5A Lithium Ion Battery Charger 29.4V 5A China manufacturer

24V 5A Lithium Ion Battery Charger 29.4V 5A China manufacturer

24V 5A Lithium Battery Charger
Product Description:

Henryuan 24V 5A Lithium Ion Battery Charger 29.4V 5A China manufacturer

Upgrade your 24V lithium battery charging experience with Henryuan 24V 5A lithium battery charger, experience the unparalleled reliability of Henryuan's 29.4V 5A lithium battery charger. Certified by UL, cUL, FCC, PSE, CE, SAA, and UKCA, this charger is specifically designed for 24V 7s lithium-ion batteries. It features advanced safety measures and an LED dual-color indicator for effortless monitoring. Suitable for a wide range of applications, from communication stations to LED lamps, Henryuan ensures efficient and secure charging.

1.Safety Certificates:

  • UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC

2. Input Specifications:

  • Input Voltage: 90-264Vac
  • Rated Input Voltage: 100-240Vac
  • Input Frequency: 47Hz-63Hz
  • Input Current: 3A
  • Inrush Current: 60A
  • AC Inlet Options: 3-pin IEC320-C6, 2-pin IEC320-C8, and 3-pin IEC320-C14

3. Output Specifications:

  • Output Voltage: 29.4V
  • Output Current: 5A
  • LED Dual-Color Indicator:
  • Charging Stage: 17.5V to 29.4V(Battery Voltage), constant current 5A (Red LED)
  • Constant Voltage Stage 29.4V : 5A to 0.5A (Charging current)(Red LED)
  • Trickle Current Stage: Below 0.5A, green LED

Output

Charging Stage

LED Indicator

Current

Voltage

5A

17.5V-29.4V

Constant Current

RED

5A->0.5A

29.4V

Constant Voltage

RED

0.5A->0

29.4V

Trickle Current

GREEN
LED turn red to green when charging current below 0.5A

4. Portable And Durable Design:

  • Dimensions: 176*80*47mm.
  • Weight: About 0.75Kg, Premium components ensure quality and portability

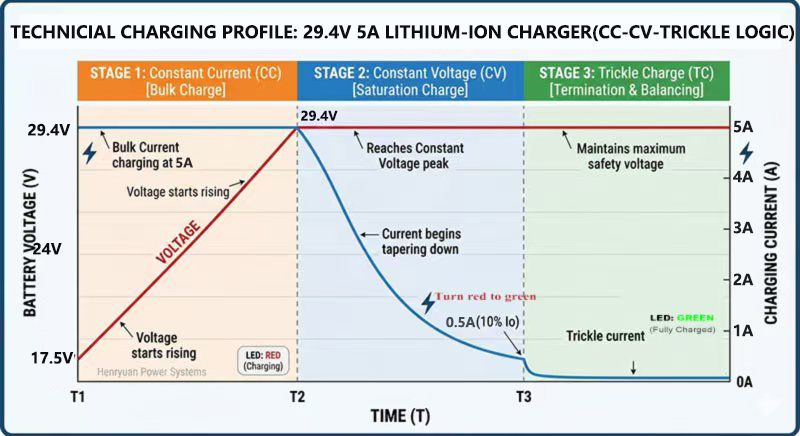

5. Charging Curve:

Optimized for efficient 29.4V 5A charging.
24V 5A Lithium Ion Battery Charger

6. Protection Features:

  • Overcurrent protection
  • Overvoltage protection
  • Short circuit protection
  • Reverse polarity protection

7.Quality Assurance:

Backed by over a decade of expertise, rigorous material selection, and a comprehensive after-sales system, Henryuan guarantees top-notch quality.

Henryuan Group:

With over 13 years of industry expertise, Henryuan is your premier destination for reliable 24V 5A lithium battery chargers. Our chargers set the standard for performance and safety, trusted by customers worldwide. Contact our sales engineers today to power up your devices efficiently and securely.
For more 29.4V 5A Lithium battery chargers, please visit Henryuan 29.4V Lithium Battery Chargers
