Products >> Lithium Ion Battery Charger >> 29.4V Lithium Ion Battery Charger

UL cUL CE PSE UKCA AC 29.4V 5A Charger For 7S 24V Li-Ion Battery

Product No.：HRY2945000
Online Inquiry

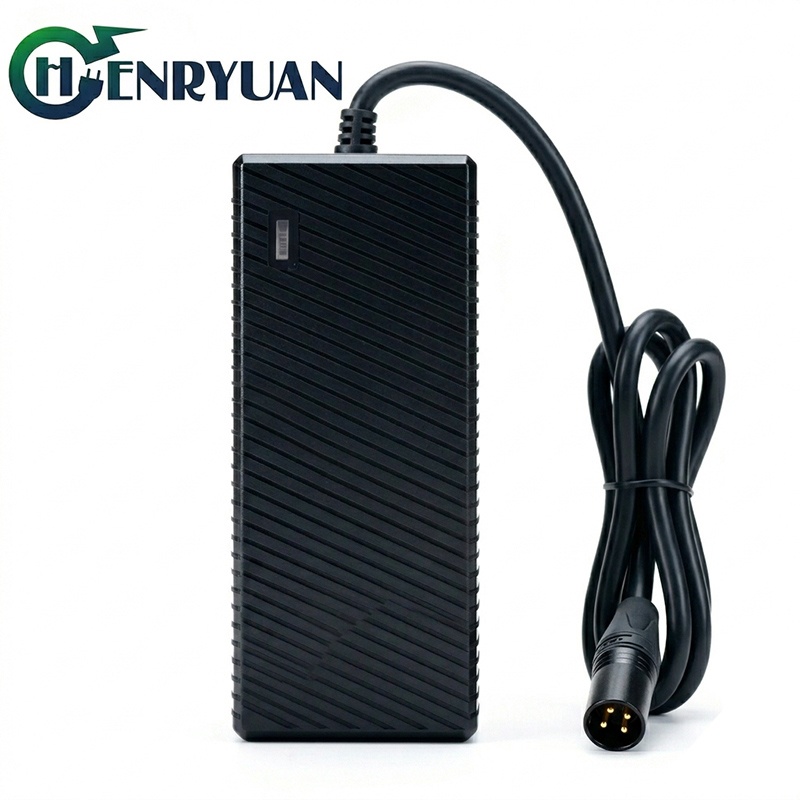

Henryuan 29.4V 5A Charger – High-Performance AC Charger For 24V Li-Ion Battery

Upgrade your charging infrastructure with Henryuan 29.4V 5A li-ion battery charger, engineered for exceptional efficiency and reliability. This 29.4V 5A lithium battery charger is specifically designed for 24V 7s li-ion batteries, ensuring fast, secure, and intelligent charging. As a leading China charger manufacturer, Henryuan is known for producing high-quality, certified chargers suitable for a wide array of applications, including floor scrubbers, studio lights, robots, wheelchairs and more.

Key Features and Specifications:

1. Industry-Leading Safety Certifications:

Our charger meets international safety standards, ensuring it is safe and reliable for both professional and consumer use. Henryuan 24V 5A lithium ion battery charger is certified by:
KC, KCC (Korea), UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, CCC

2. Input Specifications:

Input Voltage: 90-264Vac
Rated Input Voltage: 100-240Vac
Input Frequency: 50/60Hz
Input Current: 3A
Inrush Current: 60A
AC Inlet Options: 3-pin IEC320-C6, 2-pin IEC320-C8, and 3-pin IEC320-C14

3. Output Specifications:

Output Voltage: 29.4V
Output Current: 5A

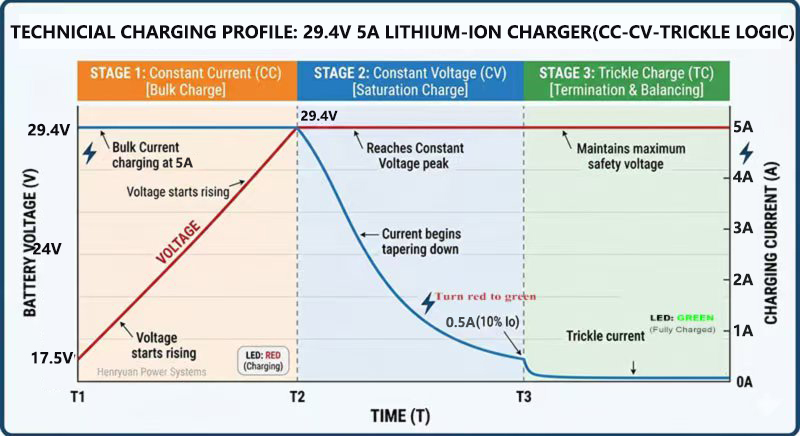

LED Dual-Color Indicator:
Charging Stage (Red LED): Constant current 5A (Battery voltage 17.5V-29.4V)
Constant Voltage Stage (Red LED) : 5A to 0.5A (Charging current)
Trickle Charge Stage (Green LED): Below 0.5A current, efficient and safe battery top-up

Output		Charging Stage	LED Indicator
Output
Current	Voltage
5A	17.5V-29.4V	Constant Current	RED
5A->0.5A	29.4V	Constant Voltage	RED
0.5A->0	29.4V	Trickle Current	GREEN LED turn red to green when fully charge battery packs

4. Portable And Durable Design:

Dimensions: 176*80*47mm.
Weight: About 0.75kg
Build Quality: Crafted with premium components for both portability and durability, ensuring long-lasting performance.

5. Optimized Charging Curve:

Engineered for high-efficiency charging, the 29.4V 5A lithium battery charger delivers consistent power to your 24V li-ion battery packs, optimizing charging cycles and extending battery life.

6. Comprehensive Protection Features:

Henryuan 24V lithium battery charger offers multiple protection mechanisms to ensure safety during every charge cycle:

Overcurrent protection
Overvoltage protection
Short circuit protection
Reverse polarity protection

7.Quality Assurance:

With over 13 years of industry expertise, Henryuan guarantees the highest standards of manufacturing, rigorous material selection, and comprehensive after-sales support. Every charger is designed to provide long-term reliability and top-notch performance, supported by a dedicated engineering team.

Why Choose Henryuan for Your Lithium Battery Charging Needs?

As a trusted charger manufacturer in China, Henryuan has been setting the benchmark for performance and safety in the lithium-ion charging industry. Our 29.4V 5A lithium battery chargers are globally recognized for their reliability, making them the ideal choice for commercial and industrial applications.

For more information or to order the Henryuan 24V 5A lithium ion battery charger, contact our expert sales team today and power your devices efficiently and securely.
