Products >> Lithium Ion Battery Charger >> 4.2V Lithium Ion Battery Charger

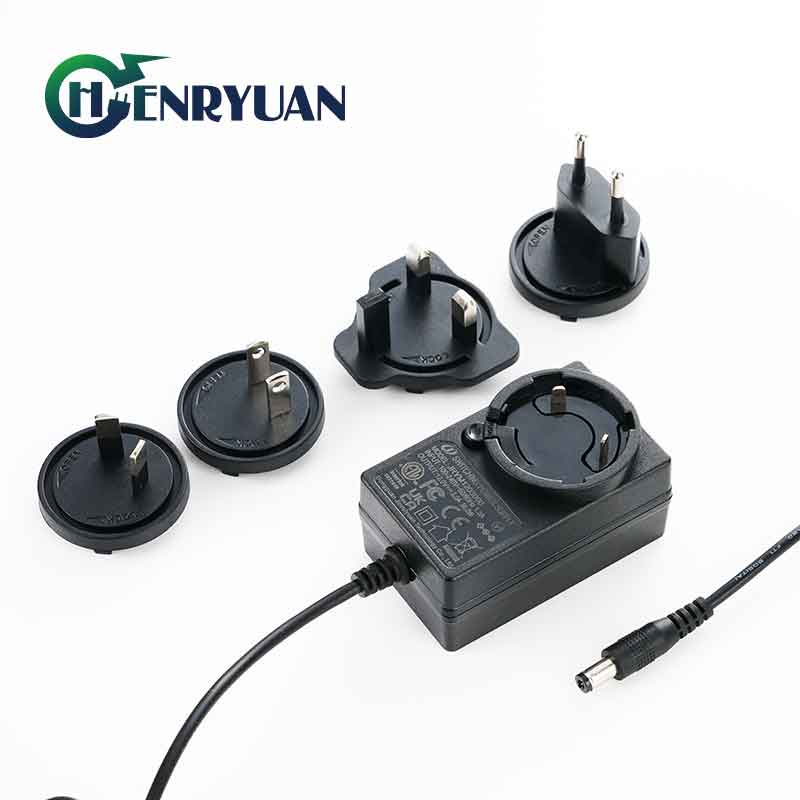

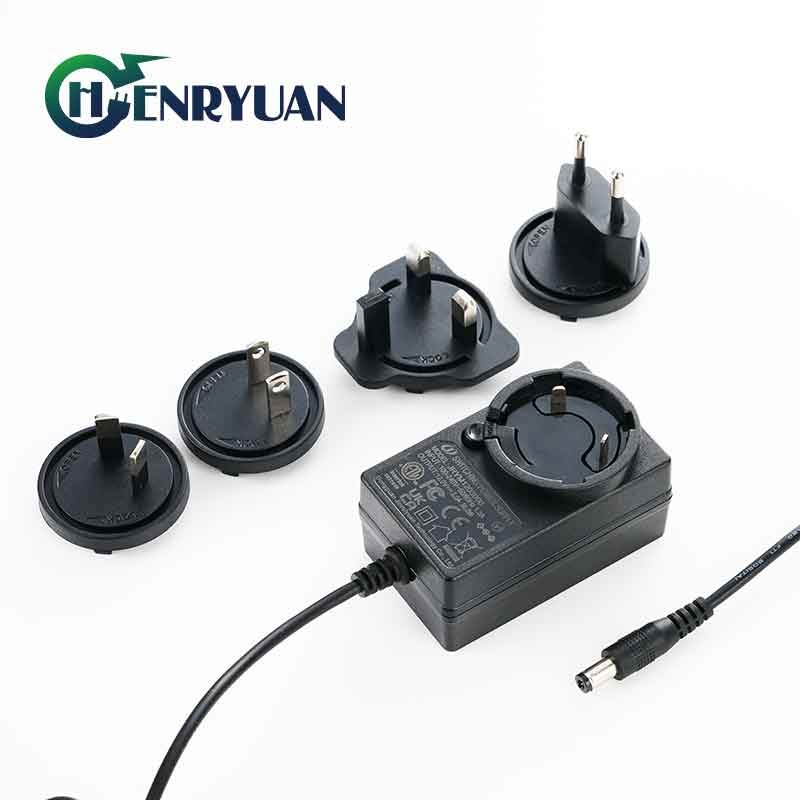

Universal plug 3.7V lithium battery charger 4.2V 3A switching power supply

Product No.：HRY0423000
Online Inquiry

3.7v lithium battery charger

Product Description:

Henryuan's universal plug 3.7V Lithium Battery Charger is a first class solution for charging 18650 3.7V lithium-ion batteries. This charger got the multiple safety certifications including UL, cUL, ETL, FCC, CE, GS, UKCA, SAA, PSE, and CCC, making it suitable for use with AU, EU, UK, US, JP, and CN wall plugs. It features an advanced charging scheme design with multiple protection mechanisms and high-quality components, ensuring faster and safer charging.
Key Specifications and Features:

Safety Certificates

Comprehensive safety certifications: UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC

Input Specifications

Input Voltage Range: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequency: 47Hz-63Hz
Input Current: 0.6A
Inrush Current: 35A

Output Specifications

Output Voltage and Current: 4.2V 3A
Charging Stages:
- Constant Current Mode: 2.5V-4.2V(battery voltage), Current: 3A (Red LED)
- Constant Voltage Mode: 4.2V, Current: 3A -> 0.3A (Red LED)
- Trickle Charging Mode: 4.2V, Current: 0.3A -> 0 (Green LED)

LED Indicator: Dual-color indicator displays charging status—red during charging and green when fully charged

Output		Charging Stage	LED Indicator
Output
Current	Voltage
3A	2.5V-4.2V	Constant Current	RED
3A->0.3A	4.2V	Constant Voltage	RED
0.3A->0	4.2V	Trickle Current	GREEN LED turn red to green when charging current below 0.3A

Applications

This versatile charger is ideal for a wide range of applications, including:

Educational robot chargers
Electric toy chargers
LED desk lamp chargers
Flashlight chargers
Diving lamp chargers
GPS module chargers

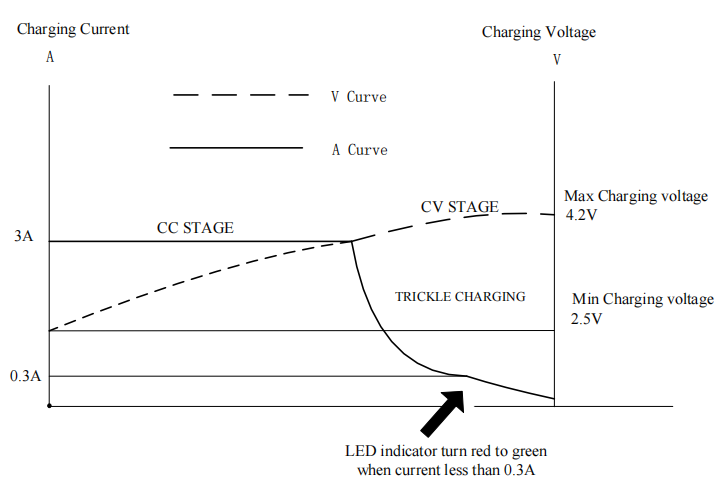

Charging Cureve Special Designed For Charging 3.7V Lithium Ion Battery

3.7v lithium battery charger

Protection Features

Over current protection
Over voltage protection
Short circuit protection
Reverse polarity protection

Quality Assurance

Experienced Sales Engineers: Over a decade of experience understanding customer needs
Rigorous Material Selection: High standards for raw material suppliers
Stringent Inspection Process: Strict incoming material inspection
Advanced Design and Testing: Over 20 years of engineering experience and advanced production testing equipment
Comprehensive Aging Testing: 100% aging testing process, up to 4 hours of full load aging
Efficient After-Sales Support: Analysis, feedback, and resolution system within 48 hours

About Henryuan Group Henryuan Group, with over 13 years of experience in the production and R&D of lithium battery chargers, is a leading industry supplier. Our high-quality 4.2V 3A Li-ion battery chargers are recognized for their superior performance and safety features, making them a popular choice among consumers globally. Our products are exported to the Americas, Europe, the United Kingdom, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan, and other regions, enjoying a high market share. Our 4.2V 3A Lithium ichargers are known for their fast and safe charging, making them perfect for various applications. With good EMI performance and experienced engineers, we can meet customer requirements for both existing and developmental products. In summary, our 3.7V lithium battery chargers are reliable and efficient solutions for all your charging needs. We offer various models, including 4.2V 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, and 7A. For a safe, reliable, and efficient lithium battery charger, contact Henryuan's sales engineers today for the reliable 4.2V lithium ion battery chargers.
