Products >> Lithium Ion Battery Charger >> 4.2V Lithium Ion Battery Charger

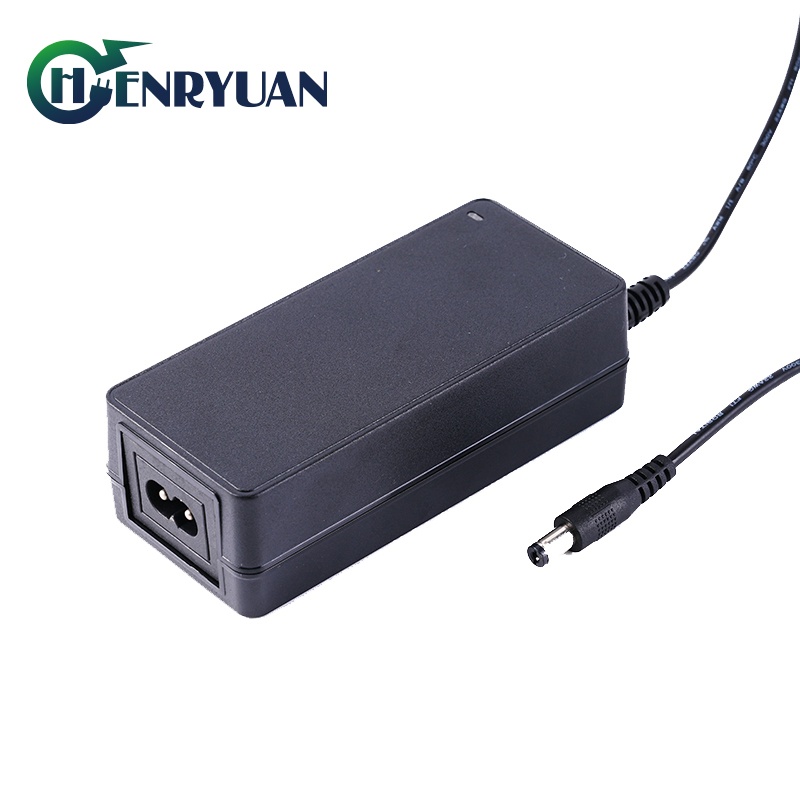

Fast 3.6V Lithium Battery 4.2V 7A Charger UL PSE SAA CE Listed

Product No.：HRY0427000
Online Inquiry

4.2V 7A Lithium Charger

High Quality 3.6V Lithium Battery Charger 4.2V 7A Lithium Charger | 4.2V 7A Lithium Battery Charger

Product Description:
Henryuan 4.2V 7A Lithium Battery Charger offers top level charging performance for a variety of 3.6V lithium-ion battery applications. With UL, PSE, CE, EMC, LVD, SAA, and FCC certifications, this charger is built to meet the highest safety standards globally, ensuring safe and efficient charging.

Key Applications:

LED Lighting, Diving Equipments and other 3.6V lithium battery powered equipments.

Safety Certifications:

Worldwide certificates
UL, ETL, cUL, FCC, PSE, CE, EMC, LVD, UKCA, SAA, KC, CCC

Input Specifications:

Voltage Range: 90Vac-264Vac
Rated Voltage: 100Vac-240Vac
Frequency: 47Hz-63Hz
Current: 1.3A
Inrush Current: 60A

Output Specifications:

Model: 4.2V 7A Lithium Battery Charger

Power: 29.4W

LED Indicator: Dual color (Red during charging, Green when fully charged)

Output		Charging Stage	LED Indicator
Output
Current	Voltage
7A	2.5V-4.2V	Constant Current	RED
7A->0.7A	4.2V	Constant Voltage	RED
0.7A->0	4.2V	Trickle Current	GREEN LED turn red to green when charging current below 0.7A

Charging Stages:

Constant Current: 7A fast charging, voltage 2.5V - 4.2V, LED red.

Constant Voltage: 4.2V max, current 7A to 0.7A, LED red.

Trickle Current: 0.7A to 0, voltage 4.2V max, LED green.

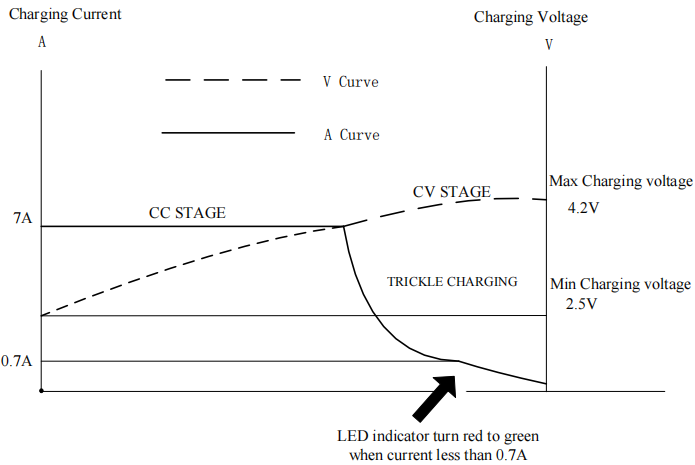

Charging Curve:
The 3.6V lithium battery 4.2V 7A charger maintains a consistent and efficient charging curve, preserving battery health.

Compact and Portable Design

Its lightweight and compact design makes it easy to carry and store,but large power
Dimensions: 146x 52 x 34 MM
Weight: 0.25kg

Protection Features:

Overcurrent Protection
Overvoltage Protection
Short Circuit Protection
Reverse Polarity Protection

Quality Assurance:

Experienced Sales Engineers: Over a decade of expertise in understanding and meeting customer needs.
Rigorous Material Selection: Only top-quality raw materials are used.
Strict Inspection Process: Comprehensive incoming material inspections ensure quality.
Expert Engineers: More than 20 years of design experience.
Skilled Production Team: Advanced production and testing equipment.
Aging Testing: 100% aging testing process, up to 4 hours at full load.
Comprehensive After-Sales Support: Feedback and resolution within 48 hours.

About Henryuan Group:

With over 13 years of experience in the production and R&D of 3.6V lithium battery chargers, Henryuan Group is a leading industry supplier. Our 4.2V 7A lithium battery chargers are globally recognized for their superior performance and safety features. Exported to the Americas, Europe, the UK, Australia, New Zealand, and Asia, they are trusted by consumers worldwide for a variety of applications.
