Products >> Lithium Ion Battery Charger >> 4.2V Lithium Ion Battery Charger

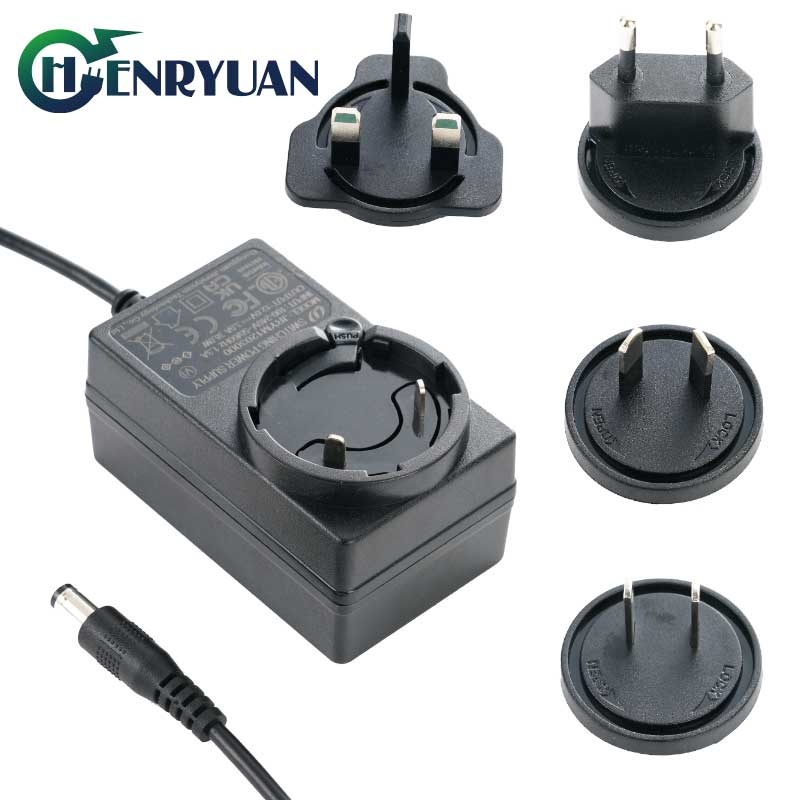

  • Safety certificates listed interchangeable plug UK EU US AU JP 3.6V lithium ion battery 4.2V 1A charger
Safety certificates listed interchangeable plug UK EU US AU JP 3.6V lithium ion battery 4.2V 1A charger

Safety certificates listed interchangeable plug UK EU US AU JP 3.6V lithium ion battery 4.2V 1A charger

 Henryuan Interchangeable wall plug 4.2V 1A lithium ion battery chargers are approved by the safety certificates UL, cUL, ETL, FCC, CE, GS, UKCA, SAA, PSE, CCC with AU, EU, UK, US, JP, CN wall plugs.High quality 4.2V 1A li-ion battery chargers used for the 1cell li-ion battery. Advanced charging scheme design, having multiple protection mechanisms with high quality components, which make charging safer and faster.They are used as a 3.7V lithium battery charger, educational robot charger, electric toy charger LED desk lamp charger, flashlight charger, diving lamp charger, GPS module charger, etc

1. SAFETY CERTIFICATES:
UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC

2. Input:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:0.6A
Inrush Current: 35A

3. Output:
Interchangeable wall plug 4.2V 1A lithium ion battery chargers with US, JP, EU, AU, UK wall plugs, the LED lights. LED dual color indicator light, displaying charging status, red during charging, fully charged, green LED.

Charging Status

Charging Stage

Output current

Output voltage

LED indicator


Charging

Constant Current

1A

2.5V-4.2V

RED

Constant Voltage

1A->0.2A

4.2V

RED

 Fully charge

Trickle Charging

0.2A->0

4.2V

GREEN

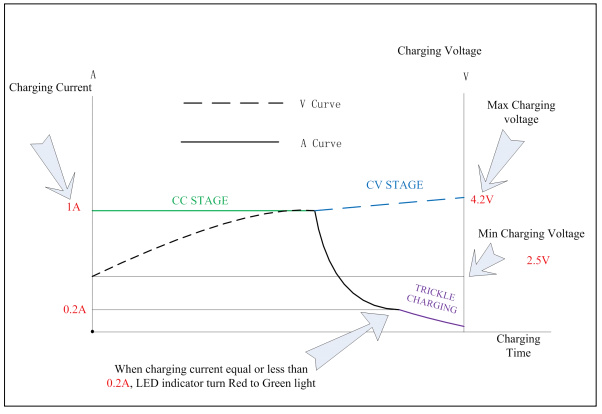

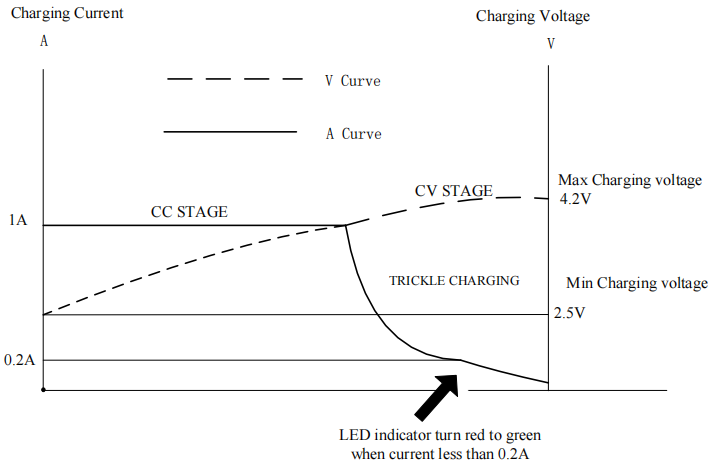

4. CHARGING CURVE:

interchangeable plug 4.2V 1A charger
5. PROTECTION FEATURE
 Over current protection, Over voltage protection, Short circuit protection, reverse polarity protection

6. QUALITY ASSURANCE

1. A team of sales engineers with over a decade of experience, able to accurately understand customer needs
2. A rigorous system for selecting raw material suppliers
3. Strict incoming material inspection process
4. Experienced engineers with material solutions design for more than 20 years
5. Skilled production stuff and advanced production testing equipment
6.100% aging testing process, up to 4 hours of full load aging
7.
A comprehensive after-sales system with analysis, feedback, and resolution system within 48 hours

Henryuan Group is a strong company with more than ten years of experience in the production and R&D of lithium battery chargers and is a leading supplier in the industry. Its high-quality 4.2V 1A Li-ion battery charger is known for its superior performance and safety features, making it a popular choice among consumers worldwide. They are exported to the Americas, Europe, the United Kingdom, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan and other countries and regions with a high market share. The charging safely and quickly, making them ideal for a variety of applications.  Good EMI performance and experienced engineers are able to perfectly meet customer requirements for existing products or  products in the development stage.In short, the high-quality 4.2V Li-ion battery charger is a reliable and efficient solution for your charging needs. There are other models of 4.2V chargers, such as 0.5A 1A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6A 7A, etc . If you are looking for a safe, reliable, and efficient lithium battery charger, just start by contacting Henryuan's sales engineers.
