Product Overview:

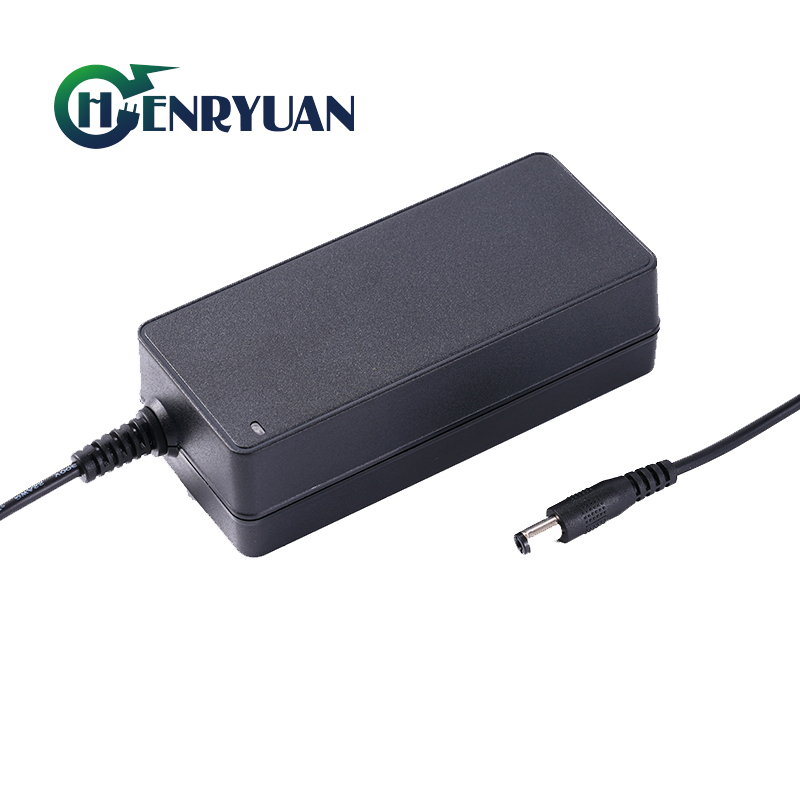

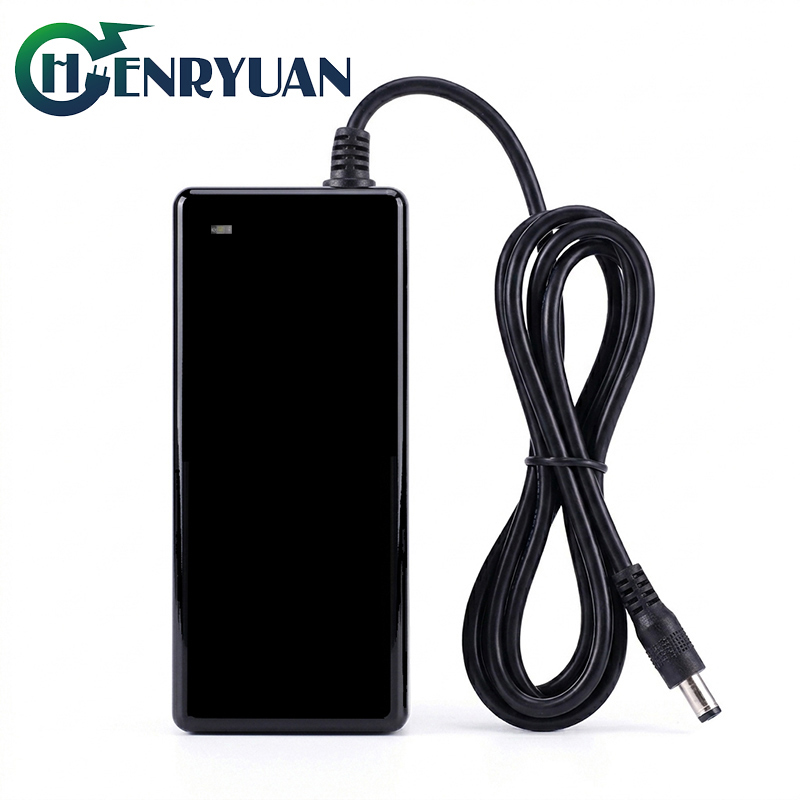

Introducing Henryuan 60W 12V 5A Switching Power Supply Adapter, a robust and high-quality power solution designed to deliver consistent and safe power for various applications. With advanced power supply design and multiple protection mechanisms, this adapter is built to provide reliable performance and efficiency. Certified by major safety and quality standards including UL, cUL, FCC, CE, UKCA, PSE, and SAA, it ensures peace of mind and compliance across global markets.

Key Applications:

• LED Lighting Systems Power Supply: Provides stable power for LED strips, panels, and other lighting installations.
• Security and Surveillance Cameras Power Supply: Ensures continuous power supply for CCTV and other security cameras.
• Portable Refrigerators Power Supply: Powers portable refrigeration units for outdoor or mobile use.
• Medical and Health Equipment: Suitable for powering massage devices and health monitoring equipment.
• Water Purifiers Power Supply: Maintains efficient operation of home and commercial water purification systems.
• Audio Systems Power Supply: Supplies power for home audio amplifiers and speakers.
• Water Pumps and Filters Power Supply: Powers pumps and filtration systems ensuring clean and healthy water in aquariums.

Safety Certifications:

The Henryuan 60W 12V 5A Power Supply Adapter meets rigorous international safety and quality standards, ensuring its reliability and safety for various applications:

• UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA,KC, CCC
• Compliance with standards: IEC 60950, IEC62368, IEC61558, IEC60335
• Energy Efficiency: Complies with Energy Star and DOE Level VI standards for reduced power consumption.

Input Specifications:

• Input Voltage Range: 90Vac-264Vac
• Rated Input Voltage: 100Vac-240Vac
• Input Frequency: 47Hz-63Hz
• Input Current: 1.3A
• Inrush Current: 60A
• AC Inlet Options: 3-pin IEC320-C6, 2-pin IEC320-C8, and 3-pin IEC320-C14

Output Specifications:

• Rated Output: 60W, 12V, 5A Max
• Output Voltage Range: 11.4V - 12.6V (12V ± 5%)
• Output Current Range: 0.0A - 5.0A
• LED Indicator: Provides clear status indication for easy monitoring.

Benefits of Using Henryuan DOE Level VI 12V 5A Switching Power Supply:

• Compact and Lightweight: Ideal for applications where space is limited and portability is important.
• High Efficiency: Reduces energy waste and operational costs, adhering to modern energy standards like DOE Level VI.
• Stable and Reliable Power: Ensures consistent voltage and current delivery, crucial for the safe operation of sensitive electronics.
• Multiple Protection Features: Includes safeguards against over-current, over-voltage, and short circuits, enhancing the safety and longevity of connected devices.

Quality Assurance:

Henryuan Group guarantees top-notch quality and reliability through stringent quality control and manufacturing processes:

• 1. Experienced Sales Teams: Over 13+ years of experience in understanding and meeting customer needs.
• 2. Strict Supplier Selection: Ensuring high-quality raw materials for all products.
• 3. Rigorous Incoming Material Inspection: Thorough checks to ensure quality components.
• 4. Expert Engineering Teams: Over 20 years of experience in designing and developing power solutions.
• 5. Skilled Production Staffs: Equipped with state-of-the-art production and testing equipment.
• 6. Comprehensive Aging Testing: Up to 4 hours of full-load aging tests to ensure durability.
• 7. Dedicated After-Sales Support: Fast resolution with analysis and feedback within 48 hours.

About Henryuan Group:

With more than 13 years in the industry, Henryuan Group is a leader in the production and R&D of high-quality switching power supplies. Our 60W 12V 5A adapter is trusted globally for its exceptional performance and safety. Exported to the Americas, Europe, Asia, and beyond, Henryuan products are known for their low EMI performance and minimal ripple, making them ideal for a variety of applications. Whether you need a reliable power supply for existing products or are in the development stage, our experienced engineers are ready to assist.

More Switching Power Supply Links:

• Explore More Switching Power Supplies.

Contact Us for Tailored Power Solutions:

Explore our range of 12V switching adapters, including models such as 12V 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 7A, 8A, 9A, 10A, 15A, 20A, 25A and more. For safe, reliable, and efficient power solutions, reach out to Henryuan's sales engineers today.
Q & A

Q: What does "DOE Level VI Compliance" mean for this 12V 5A adapter?

A: DOE Level VI is a strict energy efficiency standard mandated by the US Department of Energy. It guarantees that this 60W power supply minimizes "vampire draw" (consuming <0.1W when plugged in but idle) and maintains high efficiency under load. It lowers electricity costs and ensures your end-product is 100% legal for import into the United States.

Q: Can I use a 12V 5A power supply on a device that only requires 12V 2A or 3A?

A: Yes, absolutely. Amperage is drawn by the device, not forced by the power supply. A 12V 5A (60W) adapter can safely power any 12V device that requires 5 Amps or less (such as 1A, 2A, or 3.5A). The device will only pull the current it needs, leaving the adapter running cooler and lasting longer.

Q: What is the difference between a Class I and Class II 12V power adapter?

• Class I (3-Pin, e.g., IEC C14/C6): Uses a safety earth ground pin to protect against electric shock.

• Class II (2-Pin, e.g., IEC C8): Features double or reinforced insulation inside the housing and does not require a ground wire to operate safely.

Q: Will the electrical noise or ripple from this 60W switching power supply interfere with my LED lights or security cameras?

A: No. Low-tier adapters cause flickering LEDs or wavy lines on CCTV video due to high frequency ripple. Henryuan utilizes a pure hardware analog closed-loop topology. This creates an exceptionally smooth DC output with ultra-low ripple and noise, ensuring signal purity and low electronic interference.

Q: Is this 12V 5A power adapter safe for continuous 24/7 commercial use?

A: Yes. This industrial adapter features a fanless, silent natural cooling design with a multi-tier safety protections (Short-Circuit, Over-Voltage, and Over-Current protection). Additionally, Henryuan enforces a strict "Frozen BOM" (Bill of Materials) policy for B2B clients, guaranteeing that production lots use identical, premium components with zero unauthorized substitutions or quality drift.

Q: Does this adapter carry valid safety certifications for worldwide export?

A: Yes. This single SKU supports a universal wide input (90V–264V AC) and carries active, traceable safety listings from top global labs, including UL/cUL (North America), TÜV/GS and CE (Europe), UKCA (United Kingdom), SAA (Australia and New Zealand), CCC(China) and PSE (Japan) for frictionless global distribution.
