Products >> Switching Power Supply >>

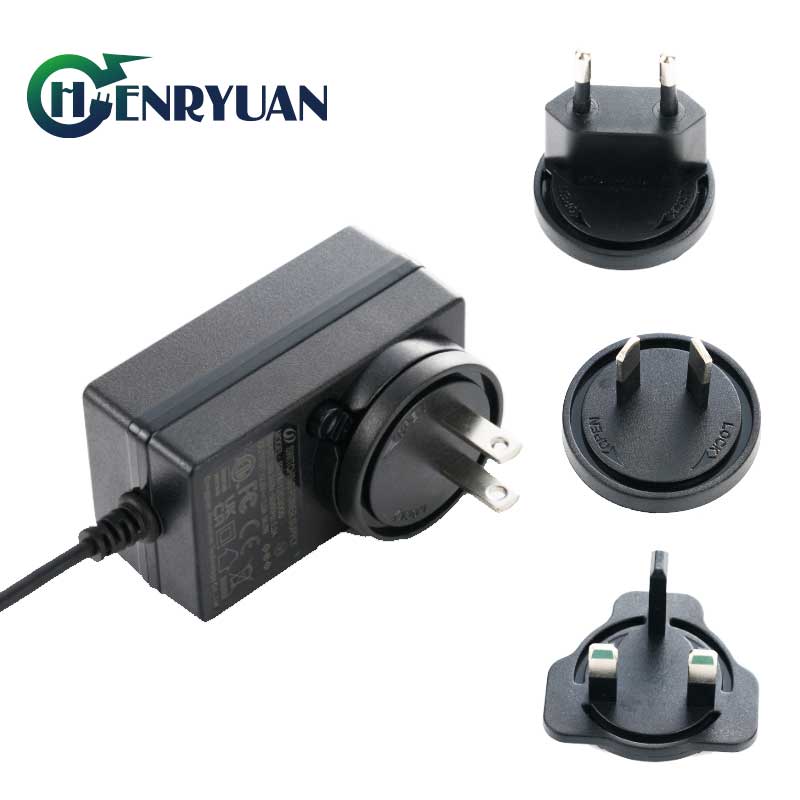

AC Adapter 12V 1.5A DC Power Supply
Product Description:
The universal AC adapter 12V 1.5A DC power supply is a high-quality 18W 12V switching power supply certified by UL, cUL, FCC, CE, GS, SAA, PSE. It has the DOE level VI efficiency. that designed with advanced power schemes, it offers multiple protection mechanisms and reliable performance. It's ideal for powering LED lights, cameras, and various electronic devices.
Global Versions for Countries:
- US Wall Plug Adapter: Model HRY1201500US.
- UK Wall Plug Adapter: Model HRY1201500UK.
- EU Wall Plug Adapter: Model HRY1201500EU.
- JP Wall Plug Adapter: Model HRY1201500JP.
- AU Wall Plug Adapter: Model HRY1201500AU.
- Interchangeable Plug Power Adapter: HRY1201500.
All models output 12V 1.5A, 18W.
Key Features:
Certifications:
- UL, ETL, cUL, FCC, PSE, CE, EMC, LVD, UKCA, SAA, KC, CCC, RoHS
- Compliance with IEC standards: 60950, 62368, 61558, 60335
- DOE Level VI efficiency
Input Specifications:
- Voltage: 90-264Vac (rated 100-240Vac)
- Frequency: 47-63Hz
- Current: 0.6A
- Inrush Current: 35A
Output Specifications:
Switching Adapter 100 240V 50 60hz 18W 12V 1.5A Power Supply, Output voltage 12V(±5%), Max load 1.5Amp.
|
RATED OUTPUT |
SPEC. LIMIT |
REMARK |
|
|
Value(Min) |
Value(Max) |
|
|
|
Output Voltage |
11.4V |
12.6V |
12V±5% |
|
Output Current |
0.0A |
1.5A |
|
Protection Features:
- Overcurrent, overvoltage, short circuit, and hiccup protection
Quality Assurance:
- Experienced sales engineers and rigorous supplier selection
- Strict material inspection and advanced production testing
- 100% aging test for up to 4 hours at full load
- Efficient after-sales support with a 48-hour resolution system
Company Profile:
With over 13 years of expertise, Henryuan Group leads in switching power supply production and R&D.
Their 12V 1.5A adapters are renowned for performance and safety, serving markets across the Americas, Europe, Australia, and other countries and districts.
These adapters feature excellent EMI performance and low ripple, suitable for diverse applications. Henryuan's engineers are adept at meeting both standard and custom requirements.
For more information, talk with Henryuan Group.
Common 12V AC DC Power Unit Models for Projects
|
Henryuan 12V AC DC Switching Power Supply(CB, UL, cUL, FCC, ETL, CE, EMC, UKCA, SAA, PSE, KC, CCC, RoHS) |
Model |
Input |
Output(Voltage/Current) |
Output(Power) |
|
HRY1200300 |
100-240V ac, 50/60Hz |
12V 0.3A |
3.6W |
|
|
HRY1200400 |
12V 0.4A |
4.8W |
||
|
HRY1200500 |
12V 0.5A |
6.0W |
||
|
HRY1200600 |
12V 0.6A |
7.2W |
||
|
HRY1200700 |
12V 0.7A |
8.4W |
||
|
HRY1200800 |
12V 0.8A |
9.6W |
||
|
HRY1200900 |
12V 0.9A |
10.8W |
||
|
HRY1201000 |
12V 1.0A |
12.0W |
||
|
HRY1201200 |
12V 1.2A |
14.4W |
||
|
HRY1201500 |
12V 1.5A |
18W |
||
|
HRY1201800 |
12V 1.8A |
21.6W |
||
|
HRY1202000 |
12V 2.0A |
24.0W |
||
|
HRY1202500 |
12V 2.5A |
30W |
||
|
HRY1203000 |
12V 3.0A |
36.0W |
||
|
HRY1204000 |
12V 4.0A |
48.0W |
||
|
HRY1205000 |
12V 5.0A |
60.0W |
||
|
HRY1206000 |
12V 6.0A |
72.0W |
||
|
HRY1206500 |
12V 6.5A |
78.0W |
||
|
HRY1207000 |
12V 7.0A |
84.0W |
||
|
HRY1208000 |
12V 8.0A |
96.0W |
||
|
HRY12010000 |
12V 10.0A |
120.0W |
||
|
HRY12012000 |
|
12V 12.0A |
144.0W |
|
|
HRY12015000 |
|
12V 15.0A |
180.0W |
|
|
HRY12020000 |
|
12V 20.0A |
240.0W |
|
|
HRY12025000 |
|
12V 25.0A |
300.0W |
Keywords Related:
- 12V 1.5A adapter
- 12V 1.5A power supply
- 12V 1.5 Amp adapter
- ac adapter 12V 1.5A
- switching adapter 12V 1.5A
- switching power supply 12V 1.5A
Q&A
Q1: Can I use a 12V 2A power adapter for a device that requires 12V 1.5A?
A: Yes, absolutely. Voltage (12V) must match your device exactly, but current (amperage) is drawn on-demand. A 1.5A device will only pull 1.5A from a 2A supply. This extra electrical headroom keeps the adapter running cooler and significantly extends its lifespan. Warning: Never do the reverse. Using a 1.2A or 1A adapter on a 1.5A device will cause dangerous overheating and potential hardware drops.
Q2: Will a 12V 1.5A adapter suffer from voltage drop over long DC cables?
A: Yes, line resistance over extended cables causes voltage drops (I*R loss), which can make sensitive devices like external hard drives or IP cameras glitch. To counter this, Henryuan provides custom cable assemblies using heavy-gauge, pure copper wiring (22AWG or 20AWG) rather than cheap copper-clad steel. This ensures a stable, uncompromised 12V delivery directly to your hardware terminal plug.
Q3: Why does my current adapter cause a high-pitched buzz in audio gear or wireless routers?
A: That noise is caused by high output voltage ripple and poor electromagnetic shielding leaking into your device’s signal paths. Henryuan addresses this hardware bottleneck by integrating advanced EMI filtering and using premium internal components. We restrict voltage ripple to under 50mV, ensuring an absolute black noise floor and zero wireless signal degradation.
Q4: Is this 1.5A switching adapter safe for non-stop (24/7) deployment in enclosed spaces?
A: Yes, entirely safe. Operating at an optimized conversion efficiency (>85%), our adapters generate minimal thermal waste heat. The casing is molded from premium UL 94V-0 flame-retardant PC. Backed by an active auto-recovery hardware protection matrix (OVP, OCP, SCP), it is purpose-built for continuous, fanless operation in tight media boxes or server racks.
