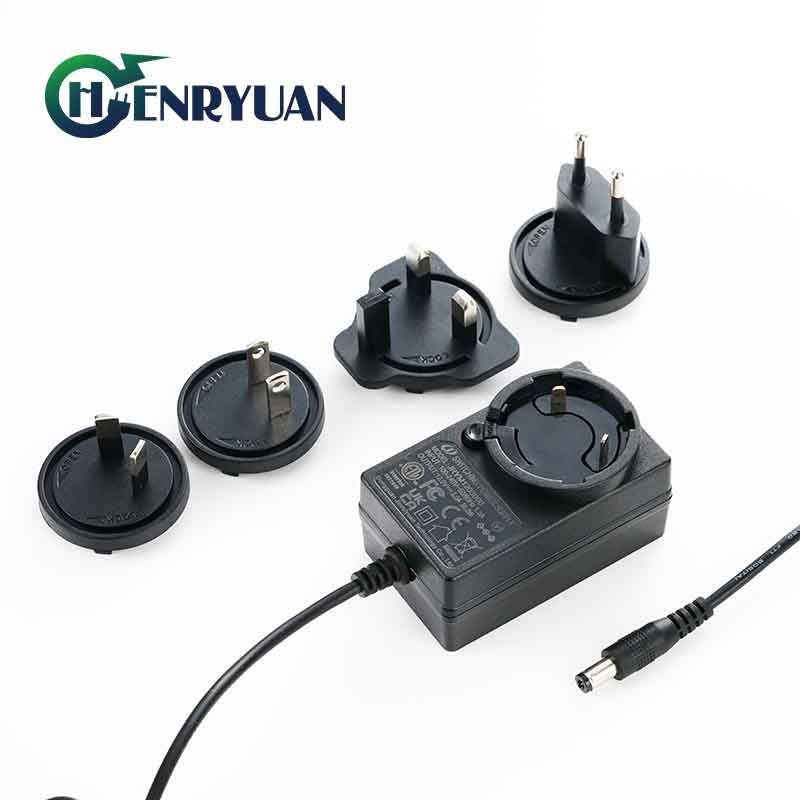

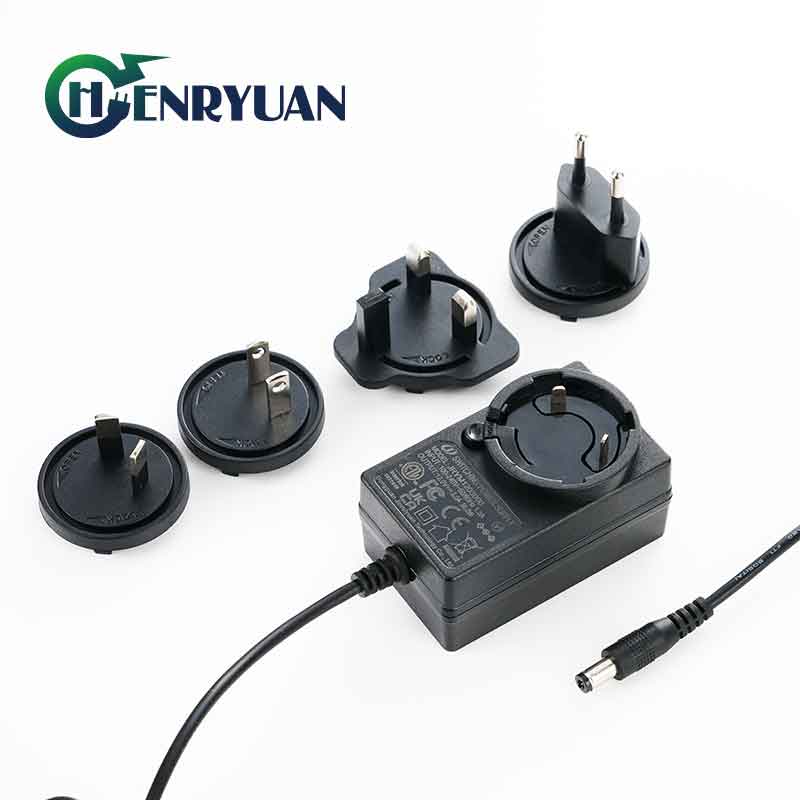

6V DC 600mA to 1A Power Adapter
Product Overview: Discover the versatility and reliability of our 6V DC power adapters, perfect for a wide range of electronic devices. Designed to provide stable and efficient power, DOE level VI and small ripple noise. These adapters come in various capacities, including 300mA, 500mA, 600mA, 800mA, 1A, 2A and 3A models, ensuring you find the perfect match for your needs.
Interchangeable Plug 6V 300A Power Adapter: HRY0600300.
Interchangeable Plug 6V 500A Power Adapter: HRY0600500.
Interchangeable Plug 6V 600A Power Adapter: HRY0600600.
Interchangeable Plug 6V 800A Power Adapter: HRY0600800.
Interchangeable Plug 6V 1A Power Adapter: HRY0601000.
Interchangeable Plug 6V 2A Power Adapter: HRY0602000.
Interchangeable Plug 6V 3A Power Adapter: HRY0603000.
All models output: 6V dc.
Key Features:
- Certifications: UL, ETL, cUL, FCC, PSE, CE, EMC, LVD, UKCA, SAA, KC, CCC, RoHS
- Compliance with IEC standards: 60950, 62368, 61558, 60335
- Efficiency: DOE Level VI
Input Specifications:
- Voltage: 90-264Vac (rated 100-240Vac)
- Frequency: 47-63Hz
- Current: 0.6A
- Inrush Current: 35A
Output Specifications:
Power Supply: DC 6V 600mA / 1A Power Adapter
Output Voltage: 6V (±5%) Max Load: 600mA / 1A
DC plug:2.35*0.7, 3.5*1.35, 5.5*2.1, 5.5*2.5, molex and other connectors.
RATED OUTPUT |
SPEC. LIMIT |
REMARK |
|
Value(Min) |
Value(Max) |
|
|
Output Voltage |
5.7V |
6.3V |
6V±5% |
Output Current |
0.0A |
600mA/1A |
|
Protection Features:
- Overcurrent, overvoltage, short circuit, and hiccup protection
Quality Assurance:
- Experienced sales engineers and rigorous supplier selection
- Strict material inspection and advanced production testing
- 100% aging test for up to 4 hours at full load
- Efficient after-sales support with a 48-hour resolution system
Company Profile:
With over 13 years of expertise, Henryuan Group leads in switching power supply production and R&D.
Our 6V adapters are renowned for performance and safety, serving markets across the Americas, Europe, Australia, and other countries and districts.
These adapters feature excellent EMI performance and low ripple, suitable for diverse applications. Henryuan's engineers are adept at meeting both standard and custom requirements.
For more information, talk with Henryuan Group.
