Guitar pedal power supply AC DC Adapter 9V 1A 2A DOE Level VI

Product No.：HRY0902000
Online Inquiry

Guitar power supply 9V

Guitar Power Supply | 9V 1A 2A AC Adapter

Product Overview:

Introducing Henryuan Guitar pedal power supply 9V AC adapter, the high-quality universal 9V adapter designed for stability and safety. Certified by UL, cUL, FCC, CE EMC, LVD, SAA, UKCA, PSE and other international safety standards, this adapter ensures reliable performance for your devices.

Key Features:

Output: 9V DC, 1A, 2A, providing a steady output
Advanced Design: Incorporates multiple protection mechanisms, including over-current, over-voltage, short-circuit, and hiccup protection.
Applications: Perfect for guitar pedal, LED lighting, cameras, massage devices, and more.
High efficiency with low ripple

International Compatibility:

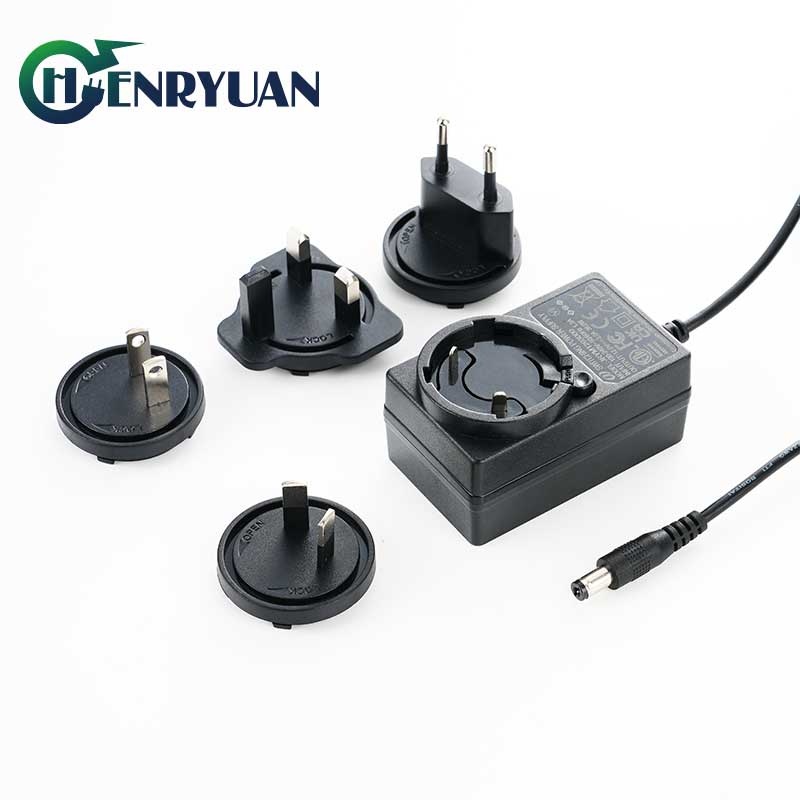

Available in multiple interchangeable plug types to suit your needs globally:

US, EU, UK, AU, CN, KR, JP wall AC plugs

Safety Certifications:

Our adapters are certified by leading international safety standards, ensuring peace of mind with every use:
CE EMC, LVD, GS, UL, cUL, FCC, UKCA, SAA, PSE

Input Specifications:

Input Voltage: 90-264V AC (Rated: 100-240V AC)
Input Frequency: 47Hz-63Hz
Input Current: 0.6A
Inrush Current: 35A

Output Specifications:

Model: HRY0901000
Voltage: 9V DC (Range: 8.55V - 9.45V, ±5%)
Current: 1A
Power: 9W
Model: HRY0902000
Voltage: 9V DC (Range: 8.55V - 9.45V, ±5%)
Current: 2A
Power: 18W
DOE Level VI, Low ripple noise

RATED OUTPUT	SPEC. LIMIT		REMARK
RATED OUTPUT	Value(Min)	Value(Max)
Output Voltage	8.55V	9.45V	9V±5%
Output Current	0.0A	1.0A / 2.0A

Protection Features:

Over-current Protection
Over-voltage Protection
Short-circuit Protection
Hiccup Protection

Quality Assurance:

Experienced Team: Over a decade of expertise in understanding and meeting customer needs.
Rigorous Supplier Selection: Ensuring high-quality raw materials.
Strict Inspection Process: Thorough inspection of incoming materials.
Advanced Engineering: Over 20 years of design and material solutions experience.
Skilled Production: Supported by advanced testing equipment.
Comprehensive Testing: 100% full-load aging testing for up to 4 hours.
Reliable After-sales Support: Quick resolution within 48 hours.

About Henryuan Group:

With over 13 years in the production and R&D of 9V switching power supplies, Henryuan Group is a leading industry supplier. Our 9V 1A 2A AC adapter is renowned for its superior performance, safety features, and good EMI performance. Trusted globally, our products are widely used in various applications and exported to markets in the Americas, Europe, Asia, and beyond..
