  • Low Ripple and High Efficiency 9V 1.2A AC DC Switching Adapter

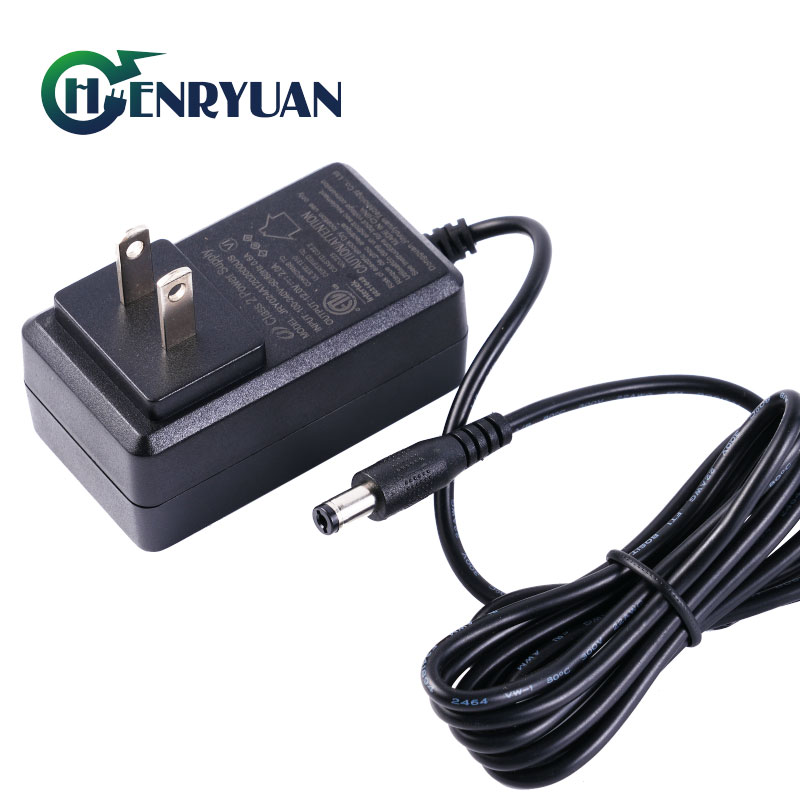

Low Ripple and High Efficiency 9V 1.2A AC DC Switching Adapter

Low Ripple and High Efficiency 9V 1.2A AC DC Switching Adapter

 9V 1.2A AC adapter

AC DC Switching Adapter | 9V 1.2A DC Power Supply

Product Overview:

Introducing Henryuan 9V 1.2A AC DC switching adapter , the high-quality 9V 1.2A DC power supply designed for stability and safety. Certified by UL, cUL, PSE, FCC and other international safety standards, this ac adapter ensures reliable performance for your devices.

Key Features:

  • Output: 9V DC, 1.2A, providing a steady output
  • Advanced Design: Incorporates multiple protection mechanisms, including over-current, over-voltage, short-circuit, and hiccup protection.
  • Applications: Perfect for guitar pedal, LED lighting, cameras, massage devices, and more.
  • High efficiency with low ripple

International Compatibility:

Available in multiple plug types to suit your needs globally:

  • EU 9V 1.2A AC DC adapter: HRY0901200EU.
  • UK 9V 1.2A AC DC adapter: HRY0901200UK.
  • AU 9V 1.2A AC DC adapter: HRY0901200AU.
  • JP 9V 1.2A AC DC adapter: HRY0901200JP.
  • US 9V 1.2A AC DC adapter: HRY0901200US.

Safety Certifications:

  • Our adapters are certified by leading international safety standards, ensuring peace of mind with every use:
  • CE EMC, LVD, GS, UL, cUL, FCC, UKCA, SAA, PSE

Input Specifications:

  • Input Voltage: 90-264V AC (Rated: 100-240V AC)
  • Input Frequency: 47Hz-63Hz
  • Input Current: 0.6A
  • Inrush Current: 35A

Output Specifications:

  • Model: HRY0901200
  • Voltage: 9V DC (Range: 8.55V - 9.45V, ±5%)
  • Current: 1.2A
  • Power: 10.8W
  • DOE Level VI, Low ripple noise

RATED OUTPUT

SPEC. LIMIT

REMARK

Value(Min)

Value(Max)



Output Voltage

8.55V

9.45V

95%

Output Current

0.0A

1.2A

Protection Features:

  • Over-current Protection
  • Over-voltage Protection
  • Short-circuit Protection
  • Hiccup Protection

Quality Assurance:

  • Experienced Team: Over a decade of expertise in understanding and meeting customer needs.
  • Rigorous Supplier Selection: Ensuring high-quality raw materials.
  • Strict Inspection Process: Thorough inspection of incoming materials.
  • Advanced Engineering: Over 20 years of design and material solutions experience.
  • Skilled Production:  Supported by advanced testing equipment.
  • Comprehensive Testing: 100% full-load aging testing for up to 4 hours.
  • Reliable After-sales Support: Quick resolution within 48 hours.

About Henryuan Group:

With over 13 years in the production and R&D of 9V switching power supplies, Henryuan Group is a leading industry supplier. Our 9V 1.2A AC adapter is renowned for its superior performance, safety features, and good EMI performance. Trusted globally, our products are widely used in various applications and exported to markets in the Americas, Europe, United Kingdom, Asia, and more.

Henryuan 9V Switching AC Adapter Range:

Various 9V AC adapters with currents 0.3A, 0.5A, 0.6A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 6.5A, 7A, 8A, 9A, 10A, 15A, 20A.
