Smart 12V 3A LiFePO4 Battery Charger 14.6V 3A

Product No.：HRY1463000
Online Inquiry

12V 3A LiFePO4 Battery Charger

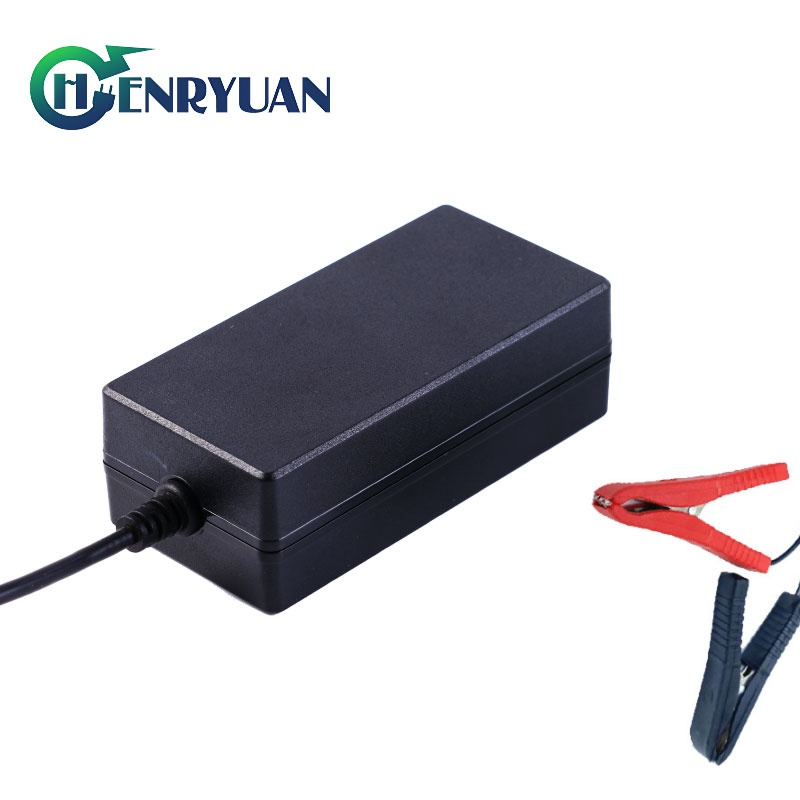

Henryuan Smart 12V 3A LiFePO4 Battery Charger 14.6V 3A

Product Description:

Experience the reliability and efficiency of the Henryuan 12V 3A Lithium iron phosphate(LiFePO4) battery charger, UL, cUL, FCC, CE, SAA, UKCA and PSE approved. Designed for 12.8V 4S LiFePO4 batteries, this high-quality charger features an advanced charging scheme with multiple protection mechanisms, ensuring faster and safer charging.

Safety Certificates:

This 12V 3A LiFePo4 battery charger is certified by UL, cUL, FCC, CE, UKCA, SAA, PSE, TUV, and RoHS, guaranteeing its safety and reliability.

Input Specifications:

Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequency: 47Hz-63Hz
Input Current: 1.3A
Inrush Current: 60A
AC Inlet: IEC320-C6, IEC320-C8, IEC320-C14

Compatibility:

4S LiFePo4 battery charger (12V): Compatible with 12.8 Volt Lithium iron phosphate battery packs.

Output Specifications:

The charger is designed with an LED dual-color indicator to display the charging status:
Red LED: Charging
Green LED: Fully Charged

Output		Charging Stage	LED Indicator
Output
Current	Voltage
3A	8V-14.6V	Constant Current	RED
3A->0.3A	14.6V	Constant Voltage	RED
0.3A->0	14.6V	Trickle Current	GREEN LED turn red to green when charging current below 0.2A

The LED indicator turns green when the charging current drops below 0.2A

Portable And Durable Design:

Dimensions: 97*30*44mm.
Weight: About 0.25Kg, Premium components ensure quality and portability

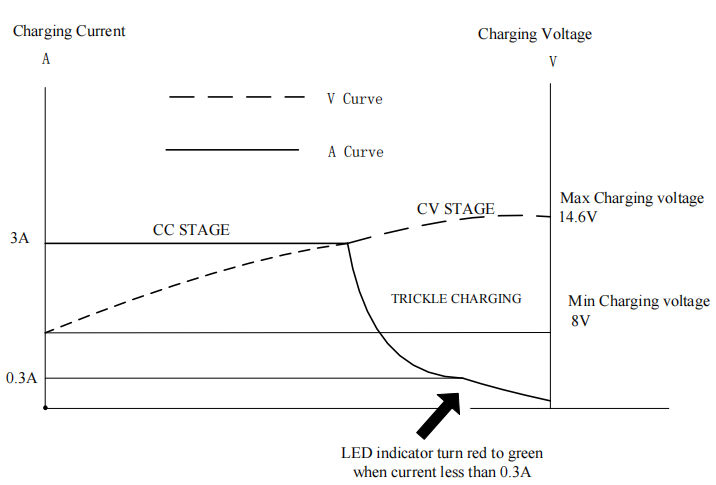

Charging Curve:

Specially designed for 12V 3A LiFePO4 batteries, providing efficient and safe charging.

Protection Features:

Over-current protection
Over-voltage protection
Short-circuit protection
Reverse polarity protection

Quality Assurance:

Experienced sales engineers with over a decade of expertise in understanding customer needs.
Rigorous selection process for raw material suppliers.
Strict inspection process for incoming materials.
Engineers with over 20 years of experience in material solutions design.
Skilled production staff and advanced testing equipment.
100% aging testing process with up to 4 hours of full-load testing.
Comprehensive after-sales system with a 48-hour resolution time.

About Henryuan Group:

With over 13 years of experience in the production and R&D of battery chargers, Henryuan Group is a leading industry supplier. Renowned for superior performance and safety features, our high-quality 12V 3A LiFePO4 battery chargers are popular worldwide. Our products are exported to the Americas, Europe, the UK, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan, and other regions.

Our chargers offer reliable and efficient solutions for all your charging needs, available in various models including 12V 1A, 1.5A, 2A, 2.5A, 3A, 4A, 5A, 6A, 7A, 10A, 15A, 20A, 25A. With excellent EMI performance and a team of experienced engineers, we meet customer requirements for both existing and developmental products.

For a safe, reliable, and efficient 12V LiFePo4 battery charger, contact Henryuan's sales engineers today.
