4S 12V LiFePO4 Battery 14.6V 15A AC Charger PSE UL cUL CE SAA UKCA Listed

Product No.：HRY14615000
Online Inquiry

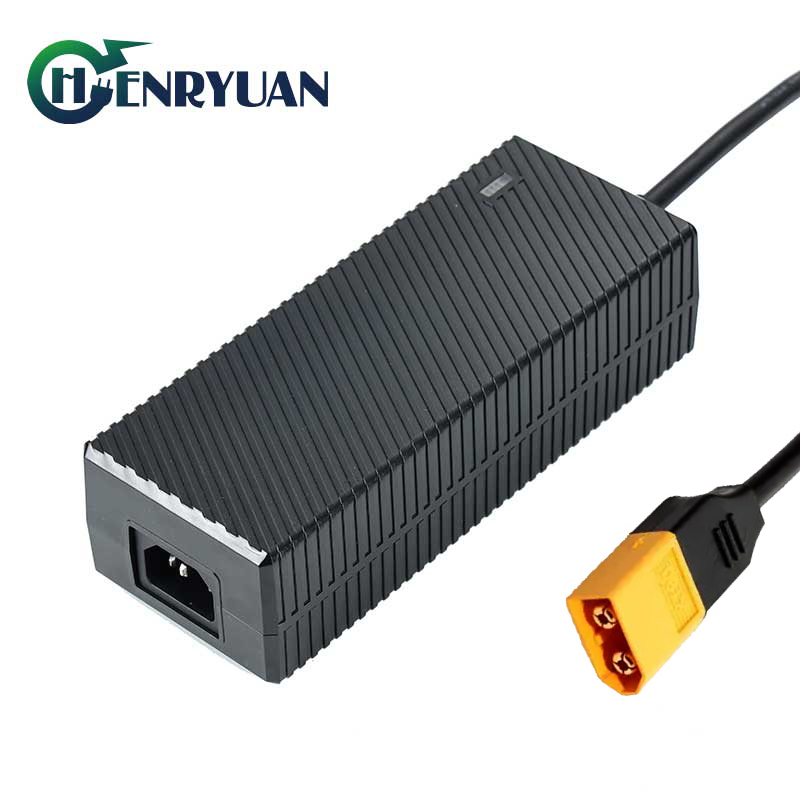

LiFePO4 battery 14.6V 15A Charger

High Quality 4S 14.6V 15A LiFePO4 Charger For 12V LFP Battery

Product Description:
12V 15A LiFePO4 Battery Charger | 14.6V 15A LFP Battery Charger

The Henryuan 14.6V 15A LiFePO4 Battery Charger offers top level charging performance for a variety of 4S 12V LFP battery applications. With UL, cUL, PSE, CE, EMC, LVD, SAA, and FCC certifications, this charger is built to meet the highest safety standards globally, ensuring safe and efficient charging.

Key Applications:

Electric marine, Electric outboard motors.
Communication Base Stations, Robots.
LED Lighting, Diving Equipments and other 12V LiFePO4 battery powered equipments.

Safety Certifications:

Worldwide certificates
UL, ETL, cUL, FCC, PSE, CE, EMC, LVD, UKCA, SAA, KC, CCC and RoHS

Input Specifications:

Voltage Range: 90Vac-264Vac
Rated Voltage: 100Vac-240Vac
Frequency: 50/60Hz
Current: 5A
Inrush Current: 60A

Output Specifications:

Model: 14.6V 15A LiFePO4 Battery Charger
Power: 219W
LED Indicator: Dual color (Red during charging, Green when fully charged)

Output		Charging Stage	LED Indicator
Output
Current	Voltage
15A	8V-14.6V	Constant Current	RED
15A->1.5A	14.6V	Constant Voltage	RED
1.5A->0	14.6V	Trickle Current	GREEN LED turn red to green when fully charge the battery

Charging Stages:

Constant Current: 15A fast charging, voltage 8V - 14.6V, LED red.
Constant Voltage: 14.6V max, current 15A to 1.5A, LED red.
Trickle Current: 1.5A to 0, voltage 14.6V max, LED green.

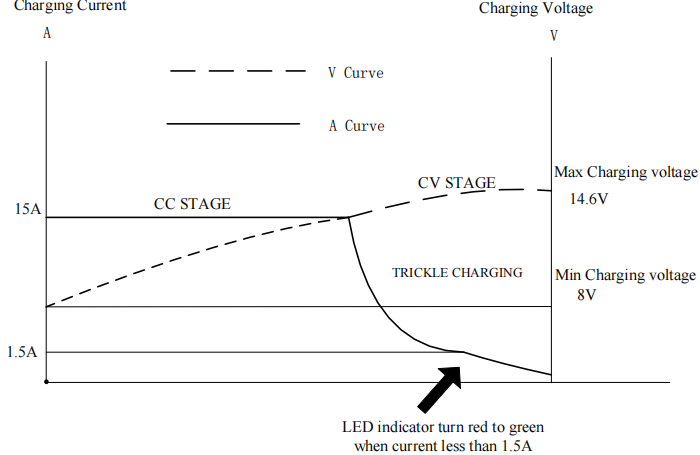

Charging Curve:

The 4S 12V 15A LiFPO4 battery charger maintains a consistent and efficient charging curve, preserving battery health.

14.6V 15A lithium charger

Compact and Portable Design

Its lightweight and compact design makes it easy to carry and store,but large power
Dimensions: 176 x 80 x 47 MM
Weight: 0.7kg

Protection Features:

Overcurrent Protection
Overvoltage Protection
Short Circuit Protection
Reverse Polarity Protection

Quality Assurance:

Experienced Sales Engineers: Over a decade of expertise in understanding and meeting customer needs.
Rigorous Material Selection: Only top-quality raw materials are used.
Strict Inspection Process: Comprehensive incoming material inspections ensure quality.
Expert Engineers: More than 20 years of design experience.
Skilled Production Team: Advanced production and testing equipment.
Aging Testing: 100% aging testing process, up to 4 hours at full load.
Comprehensive After-Sales Support: Feedback and resolution within 48 hours.
