Products >> LiFePO4 Battery Charger >> 14.6V LiFePO4 Battery Charger

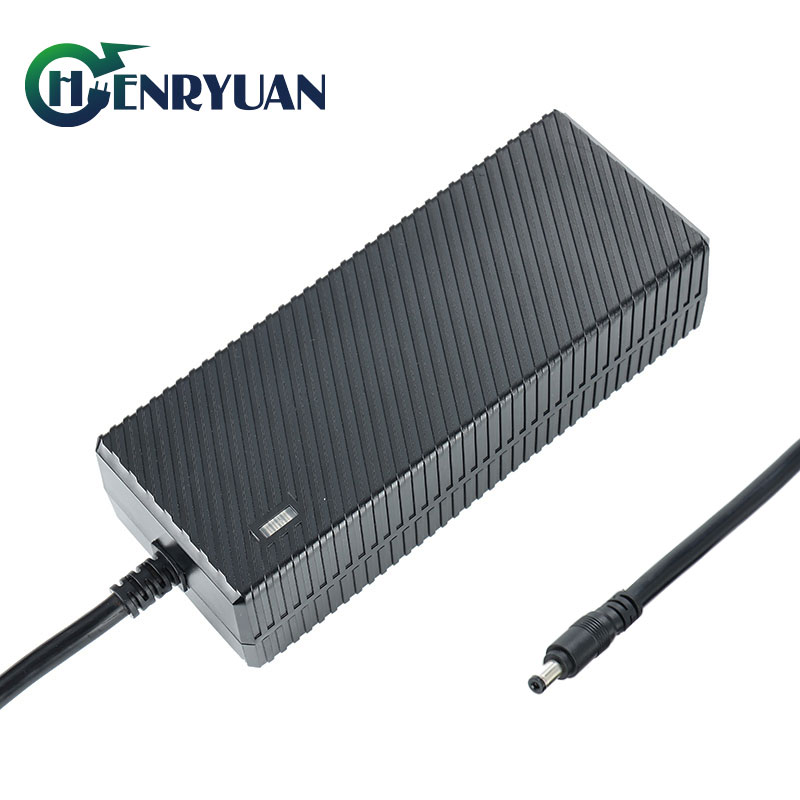

UL, cUL, CE, PSE, SAA, UKCA 12V 10A LiFePO4 Battery Charger | 14.6V 10A LFP Charger
Product Overview:
Experience safe, fast, and reliable charging with the 12V 10A LiFePO4 battery charger for your 4S LiFePO4 battery packs.Perfectly designed for 12V LiFePO4 batteries, this charger is designed with intelligent 3 stage charging technology with great safety features(over voltage protection, over current protection, short circuit protection and reverse polarity protection) to ensure optimal battery performance and longevity. These 14.6V 10A chargers are used in electric vehicles, golf carts, park patrol cars, off-grid solar systems, mobile power supplies, UPS equipment, RV power supplies, marine power supplies, emergency lighting and rescue equipment, AGV, power tools, medical equipment, security equipment and other 12V lithium iron phosphate battery powered equipments.
Key Features:
- Optimal Charging Performance: Designed for 4S 12V LiFePO4 batteries, it provides a stable 14.6V output and fast charging current 10A.
- Advanced Safety Features: Includes over-voltage protection, over-current protection, short-circuit protection, and reverse polarity protection to protect your battery and device.
- Smart Charging Technology: Automatically adjusts the charging stage to prevent overcharging and maximize battery life.
- LED Status Indicator: Dual color LED indicator provide clear charging status updates for easy monitoring of the charging status.
- Durable and Portable Design: Made of high quality components, this lightweight and compact charger is perfect for home, workshop, or on-the-go.
- Versatile Connection Options: A variety of connectors are available, including alligator clips, Anderson, GX16, M8, DC jacks and other connectors to match with different battery ports.
- Certificated Quality: CE, UL, cUL, EMC, UKCA, PSE, SAA, KC, FCC, CCC and RoHS certificated to meet international safety and performance standards.
Technical Specifications
Input Specifications
- Input Voltage： 90Vac-264Vac
- Rated Input Voltage： 100Vac-240Vac
- Input Frequence：50/60Hz
- Input Current：3A
- Inrush Current： 60A
- AC inlet: 2pin IEC320-C8,3pin IEC320-C6 and IEC320-C14
Output Features
- Model: HRY14610000, 14.6V 10A.
- Charging stages: CC/CV, trickle current (Constant Current, Constant Voltage and Trickle current)
- Constant Current: 10A fast charging, LED shows red.
- Constant Voltage: 14.6V voltage, current decreases to 1A, LED shows red.
- Trickle Current: 1A to 0, fully charge battery, LED shows green.
|
Output |
Charging Stage |
LED Indicator |
|
|
Current |
Voltage |
||
|
10A |
8V-14.6V |
Constant Current |
Red(Charging) |
|
10A->1A |
14.6V |
Constant Voltage |
Red(Charging) |
|
1A->0 |
14.6V |
Trickle Current |
Green(Fully Charged) |
Charging Curve
Safe and efficient 14.6V 10A charging for 12V LiFePO4 battery packs.
Advanced Protection Features
- Over current protection, Over voltage protection, Short circuit protection, reverse polarity protection

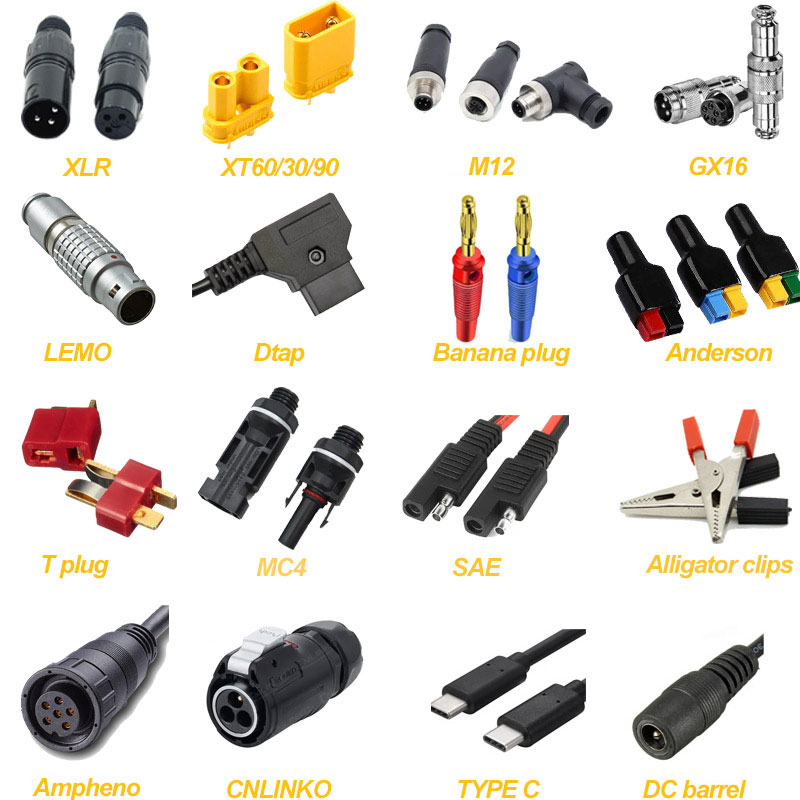

Output Connectors
Quality Assurance
- 1. A sales engineer team with more than ten years of experience who can accurately understand customer needs
- 2. A rigorous raw material supplier selection system
- 3. A strict incoming material inspection process
- 4. Engineers with more than 20 years of experience in material solution design
- 5. Skilled production staff and advanced production testing equipment
- 6. 100% aging test process, full load aging time up to 4 hours
- 7. A complete after-sales system, providing analysis, feedback and solution system within 48 hours
Henryuan, Ideal LiFePO4 Battery Charger Manufacturer:
Henryuan Group is a advanced leader in the lifepo4 battery charger industry, boasting over 13 years of expertise in production and R&D. Renowned for superior performance and robust safety features, this high quality 12V 10A lifepo4 battery charger from Henryuan is a top choice for globally markets.
Exporting to regions such as the Americas, Europe, the UK, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, and Taiwan, Henryuan maintains a significant market share. The charger ensures safe and rapid charging, making it ideal for various applications.
With excellent EMI performance and a team of experienced engineers, Henryuan can meet precise customer requirements for both existing products and those in development. This 12V 10A lifepo4 battey charger is a reliable, efficient solution for your charging needs.
Henryuan offers a range of models, including 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 7A, 8A, 9A, 10A, 15A, 20A and 25A.
More high quality lifepo4 battery chargers
For a safe, reliable, and efficient 12V 10A lifepo4 battery charger, contact Henryuan’s sales engineers today.
