Products >> LiFePO4 Battery Charger >> 14.6V LiFePO4 Battery Charger

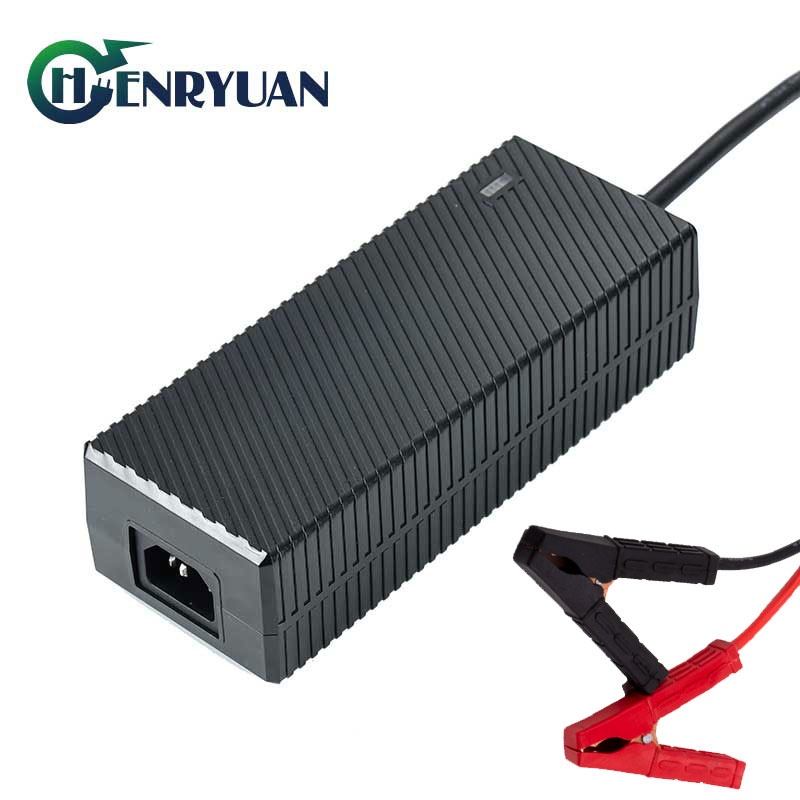

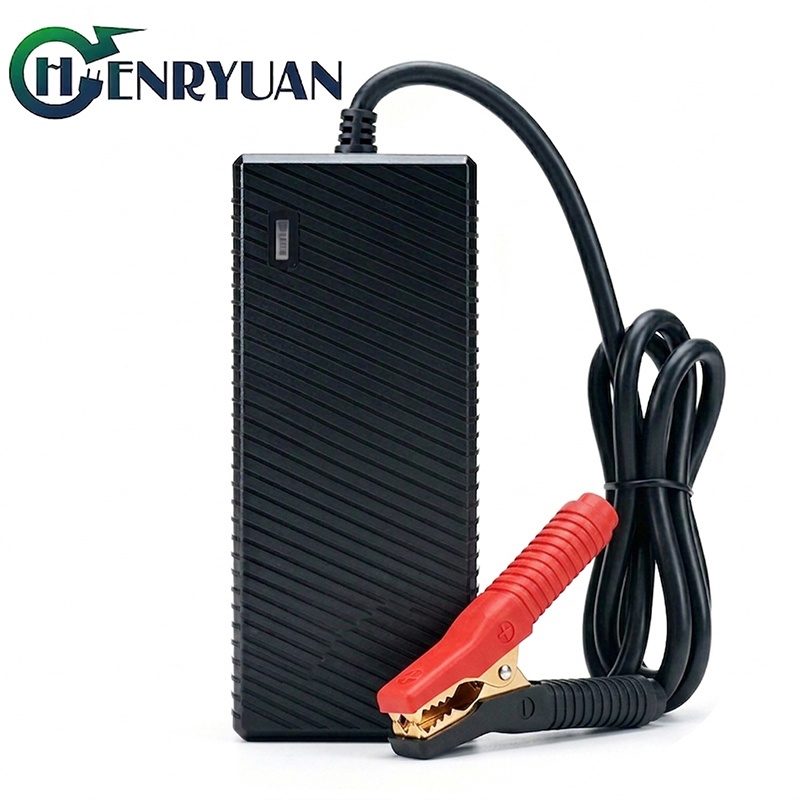

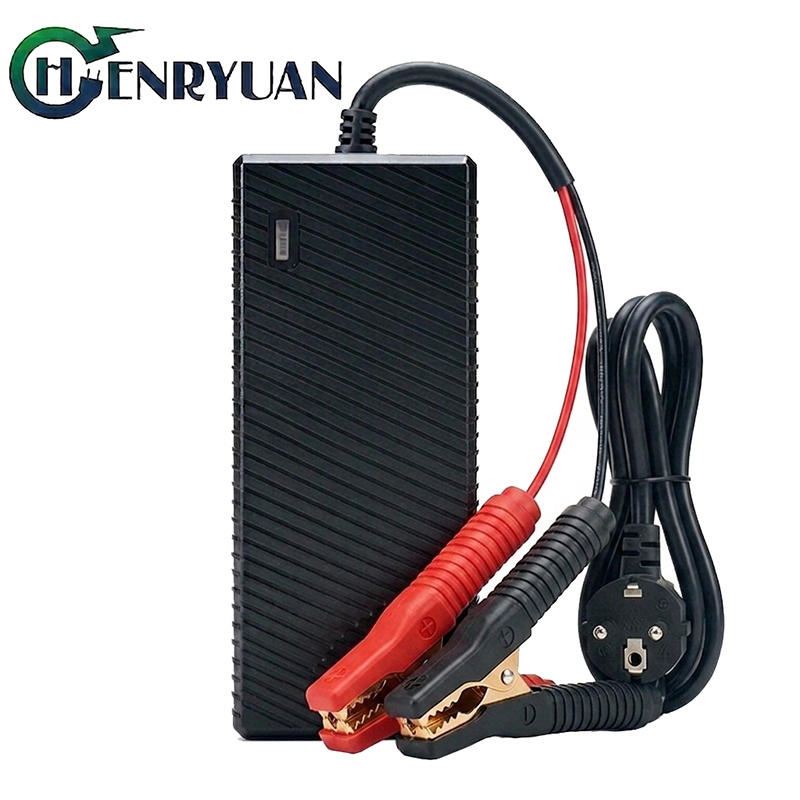

4S 12V LiFePO4 Battery Charger | 14.6V 25A LiFePO4 Charger |UL ETL PSE CE SAA
Product Description:
Henryuan high-quality portable 14.6V 25A lithium iron phosphate(LiFePO4) battery charger provides safe, stable, and reliable charging performance for 4S 12.8V LiFePO4 battery packs. With CB, ETL, UL, FCC, CE, EMC, LVD, PSE, SAA safety certifications, this 12V lithium iron phosphate battery charger can meet the world's highest safety standards and has advantages such as high efficiency, safety, and high EMI performance. At the same time, Henryuan's experienced engineering team helps customers solve various customized charging needs.
Key Applications:
- Floor scrubbers, electric boats, electric outboard motors
- Electric lawn mowers, robots.
- Diving equipments and other various 12.8V LiFePO4 battery powered equipments.
Safety Certifications:
- Certified worldwide, it can be exported to many countries and regions, and its quality has been recognized by the market.
- CB、 Global certification, can be exported to many countries and regions, and the quality has been verified.
- ETL、FCC、CE、EMC、UL、ETL、cUL、PSE、LVD、UKCA、SAA、KC、CCC
Input Specif:
-
Wide voltage range: 90Vac-264Vac
-
Rated Voltage: 100Vac-240Vac
-
Frequency: 47Hz-63Hz
-
Current: 5A
-
Inrush Current: 60A
Output Specifications:
- Model: 12V 25A LiFePO4 Battery Charger
- Power: 400W
- Dual color LED indicator: red when charging, green when fully charged
Output |
Charging Stage |
LED Indicator |
|
Current |
Voltage |
||
25A |
8V-14.6V |
Constant Current |
RED |
25A->2.5A |
14.6V |
Constant Voltage |
RED |
2.5A->0 |
14.6V |
Trickle Current |
GREEN |

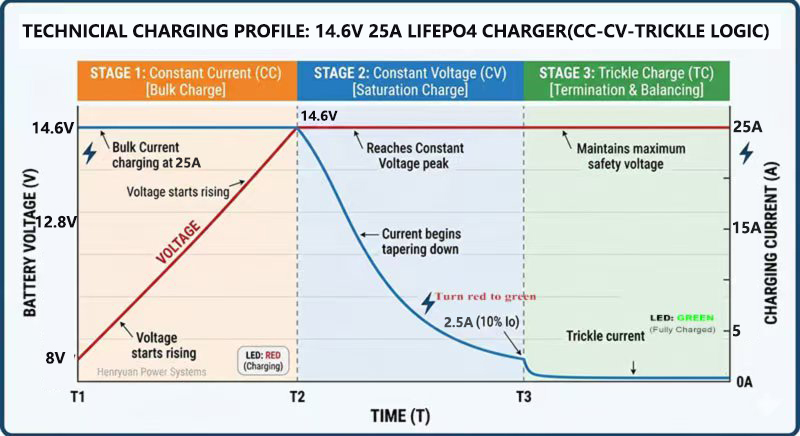

Charging Stages:
- Constant current: fast charging 25A , red light.
- Constant voltage: 14.6V max, current 25A decreases to 2.5A, red light.
- Trickle current: 2.5A to 0, voltage 14.6V max, green light

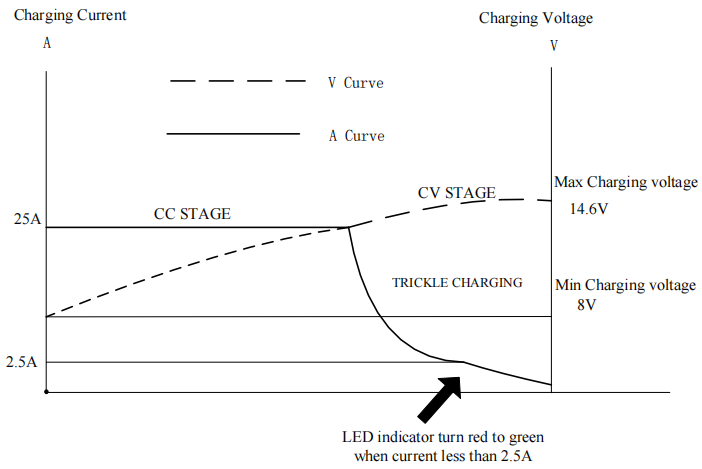

Charging Curve:
Compact and portable design
- The lightweight and compact design makes it easy to carry and store, while ensuring a fast enough charging rate
- Dimensions: 245 x 104 x 60 mm
- Weight: 1 kg
Protection Features:
Advanced charging protection design makes charging more reliable and safe
- Overcurrent Protection
- Overvoltage Protection
- Short Circuit Protection
- Reverse Polarity Protection
Quality Assurance:
- Experienced sales engineers: more than ten years of professional experience, understanding and meeting customer needs.
- Strict material selection: only the best quality raw materials are used.
- Strict inspection process: comprehensive incoming material inspection ensures quality.
- Expert engineers: more than 20 years of design experience.
- Skilled production team: advanced production and testing equipment.
- Aging test: 100% aging test process, up to 4 hours at full load.
- Timely response after-sales service system: feedback problems within 48 hours.

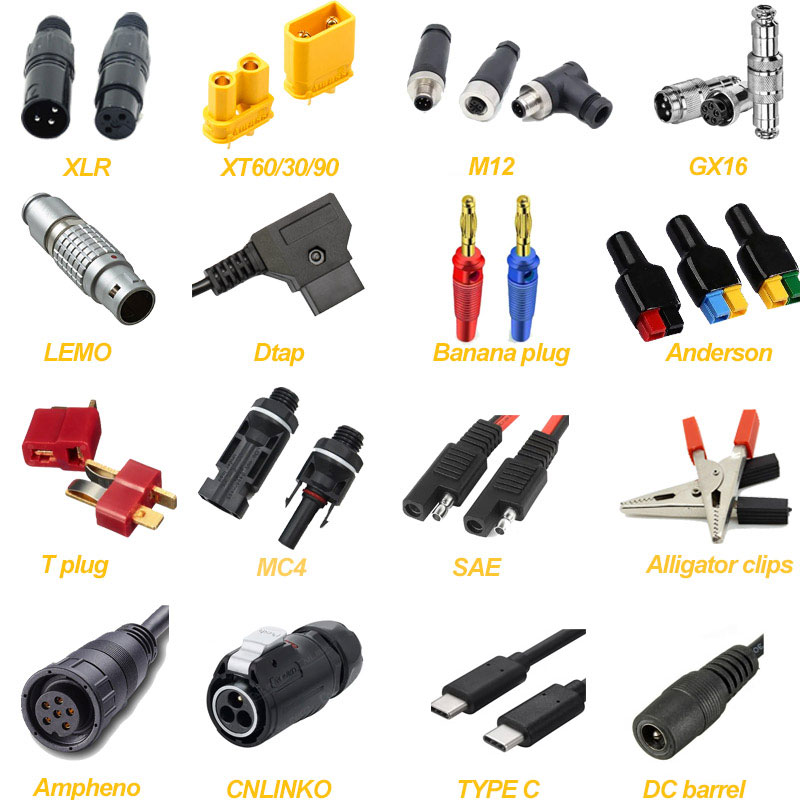

DC Output Connectors:
About Henryuan Group:
Henryuan Group has over 13 years of experience in the development and production of 4S 12V LiFePO4 battery chargers 14.6V 25A and is a leading manufacturer in the industry. Our 14.6V25A LiFePO4 battery chargers are recognized worldwide for their superior performance and safety features. With various safety certifications, our products are exported to countries and regions such as America, Europe, the United Kingdom, Australia, New Zealand and Asia, and are trusted by consumers around the world in a variety of applications.
Henryuan 4S 12.8V LiFePO4 Battery Charger Range:
Various 12V lifepo4 battery chargers(14.6V ouput) with currents 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 6.5A, 7A, 8A, 9A, 10A, 15A, 20, 25A.
