Universal Plugs Worldwide Use 12V 12.6V 3A Lithium Ion Battery Charger

Product No.：HRY1263000
Online Inquiry

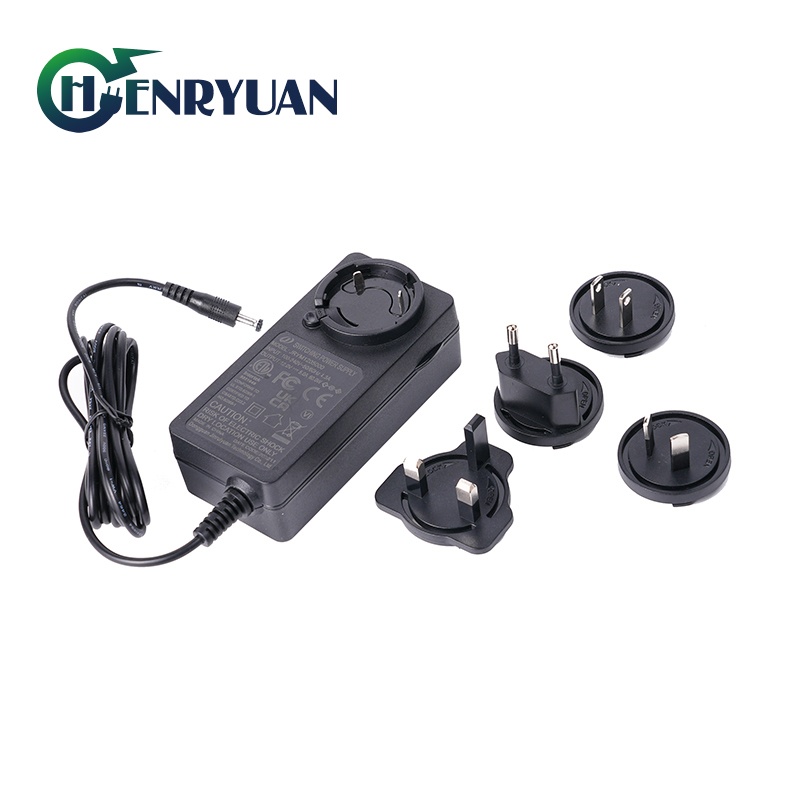

Universal Multi Plug 12.6V 3A Lithium-Ion Battery Charger

Product Description:

Introducing the high performance 12.6V 3A lithium battery charger, designed for optimal convenience and efficiency. This versatile charger features unique convertible AC wall plugs US, EU, UK, AU, JP, KR, CN, making it compatible with various plug types for use in different countries and regions. This design elevates it to a high end product and a key selling point.

Safety Certificates:

Our 12.6V 3A lithium battery chargers are equipped with interchangeable multi-plugs and meet rigorous safety standards. Certifications include UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, and CCC.

Input Specifications:

Input Voltage: 90Vac-264Vac (Rated Input Voltage: 100Vac-240Vac)

Input Frequency: 47Hz-63Hz

Input Current: 1.3A

Inrush Current: 60A

Output Features:

The 12.6V 3A lithium battery charger is designed with high quality CE, UL, SAA, UKCA, and PSE listings and interchangeable multi-plugs. The LED dual-color indicator light provides clear charging status updates: red during charging, green when fully charged.

Constant Current Output: 3A at voltage 7.5V to 12.6V, LED red,
Constant Voltage:12.6V (max), current 3A to 0.3A, LED red.
Trickle Current: 0.3A to 0, 12.6V max. LED green.

Output		Charging Stage	LED Indicator
Output
Current	Voltage
3A	9V-12.6V	Constant Current	RED
3A->0.3A	12.6V	Constant Voltage	RED
0.3A->0	12.6V	Trickle Current	GREEN LED turn red to green when charging current below 0.3A

The LED indicator turns green when the charging current drops below 0.3A.

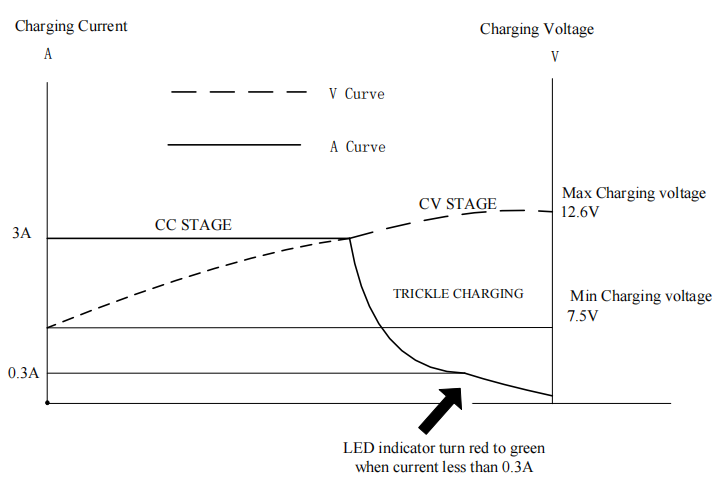

Charging Curve:

Our 12.6V 3A lithium battery charger features a 3-stage universal charging curve, ensuring efficient and safe charging.

12V 3A Lithium Ion Battery Charger

Protection Features:

Overcurrent Protection
Overvoltage Protection
Short Circuit Protection
Reverse Polarity Protection

Quality Assurance:

Over a decade of experience in sales engineering to understand customer needs
Rigorous selection process for raw material suppliers
Stringent incoming material inspection procedures
Experienced engineers with over 20 years in material solutions design
Skilled production staff and advanced testing equipment
100% aging testing process, ensuring reliability through 4 hours of full-load aging
Comprehensive after-sales system providing analysis, feedback, and resolution within 48 hours

Henryuan Customer Five-star reviews:

About Henryuan Group:

Henryuan Group boasts over a decade of experience in lithium battery charger production and R&D, establishing itself as an industry-leading supplier. Our high quality 12.6V 3A lithium battery chargers are renowned for superior performance and safety features, garnering popularity worldwide. They are exported to various regions including the Americas, Europe, the UK, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, and Taiwan. Our chargers offer safe and rapid charging, catering to diverse applications. Backed by excellent EMI performance and seasoned engineers, we tailor solutions to meet both existing and developmental product requirements.

In summary, our high quality 12.6V 3A lithium battery chargers provide a dependable and efficient charging solution. Explore our range of 12.6V chargers, including models ranging from 0.5A to 25A. For safe, reliable, and efficient lithium battery chargers, connect with Henryuan sales engineers today.

More 12.6V Lithium-Ion Battery Chargers:

For more 12.6V lithium-ion battery chargers, please visit Henryuan 12.6V Lithium Ion Battery Chargers.

Common 12.6V AC Charger Models for Projects

Henryuan 12.6V Charging Solutions(CB, UL, cUL, FCC, ETL, CE, EMC, UKCA, SAA, PSE, KC, CCC, RoHS)

Model

Input

Output(Voltage/Current)

Output(Power)

HRY1260300

100-240V ac, 50/60Hz

12.6V 0.3A

3.78W

HRY1260400

12.6V 0.4A

5.04W

HRY1260500

12.6V 0.5A

6.3W

HRY1260600

12.6V 0.6A

7.56W

HRY1260700

12.6V 0.7A

8.82W

HRY1260800

12.6V 0.8A

10.08W

HRY1260900

12.6V 0.9A

11.34W

HRY1261000

12.6V 1.0A

12.6W

HRY1261200

12.6V 1.2A

15.12W

HRY1261500

12.6V 1.5A

18.9W

HRY1261800

12.6V 1.8A

22.68W

HRY1262000

12.6V 2.0A

25.2W

HRY1262500

12.6V 2.5A

31.5W

HRY1263000

12.6V 3.0A

37.8W

HRY1264000

12.6V 4.0A

50.4W

HRY1265000

12.6V 5.0A

63.0W

HRY1266000

12.6V 6.0A

75.6W

HRY1267000

12.6V 7.0A

88.2W

HRY1268000

12.6V 8.0A

100.8W

HRY12610000

12.6V 10.0A

126.0W

HRY12615000

12.6V 15.0A

189.0W

HRY12620000

12.6V 20.0A

252W

HRY12625000

12.6V 25.0A

315W
