Products >> Lithium Ion Battery Charger >> 54.6V Lithium Ion Battery Charger

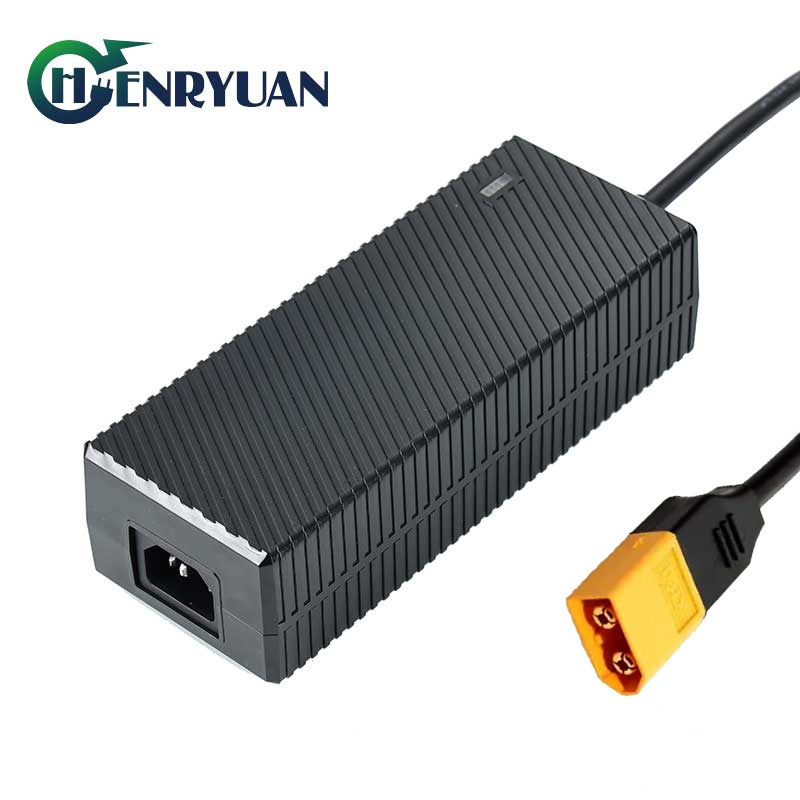

  • Certificated 48V Lithium Battery 54.6V 5A Lithium Battery Charger
Certificated 48V Lithium Battery 54.6V 5A Lithium Battery Charger

Certificated 48V Lithium Battery 54.6V 5A Lithium Battery Charger

lithium charger 48v
54.6V Lithium Battery Charger For 48V Lithium Battery Pack.

Product Description

The Henryuan 48V lithium battery 54.6V 5A charger is a top-tier charging solution designed for 13S 48V lithium-ion batteries, ranging from 10AH to 30AH. This 54.6V 5A charger is engineered with advanced safety features over current protection, over voltage protection, short circuit protection and reverse voltage protection. The high-quality components, ensuring reliable and efficient charging for various applications such as e-bikes, electric scooters, and golf carts.

Key Features and Applications

1. Comprehensive Safety Certifications:

  • Our 54.6V 5A chargers meet global safety standards with certifications from UL, ETL, cUL, FCC, CE, UKCA, SAA, PSE, TUV, and RoHS.

2. Input Specifications:

  • Input Voltage: 90Vac-264Vac
  • Rated Input Voltage: 100Vac-240Vac
  • Frequency: 47Hz-63Hz
  • Input Current: 5A
  • Inrush Current: 60A

3. Output Specifications:

  • Models Available:
    • 2A Charger: HRY5462000
    • 3A Charger: HRY5463000
    • 3.5A Charger: HRY5463500
    • 4A Charger: HRY5464000
    • 4.5A Charger: HRY5464500
    • 5A Charger: HRY5465000
    • 6A Charger: HRY5466000
    • 7A Charger: HRY5467000
  • LED Indicator: Dual-color LED light indicates charging status: red during charging and green when fully charged.

4. Example of Charging Stages for 48V 5A Model:

  • Constant Current: 5A, 32.5V-54.6V (Red LED)
  • Constant Voltage: 5A -> 0.5A, 54.6V (Red LED)
  • Trickle Charging: 0.5A -> 0, 54.6V (Green LED)

Output

Charging Stage

LED Indicator

Current

Voltage

5A

32.5V-54.6V

Constant Current

RED

5A->0.5A

54.6V

Constant Voltage

RED

0.5A->0

54.6V

Trickle Current

GREEN
LED turn red to green when charging current below 0.5A

5. Charging Curve, Special Designed For 48V 5A Lithium Ion Battery Charger

54.6V 5A Lithium Charger

6. Applications:

  • Perfect for charging electric scooters, e-bikes, and golf carts. These chargers are versatile and ideal for various high-capacity 48V lithium battery needs.

7. Advanced Protection Features:

  • Includes overcurrent protection, overvoltage protection, short circuit protection, and reverse polarity protection to ensure safe and reliable charging.

8. Variety Of Connectors Supported:
Charging Connectors

9. Quality Assurance:

  • A skilled team of sales engineers with over a decade of experience
  • Rigorous raw material selection and inspection process
  • Experienced engineers with over 20 years in material solutions design
  • Advanced production testing equipment and processes
  • 100% full-load aging testing for up to 4 hours
  • Comprehensive after-sales support system with a resolution timeframe of within 48 hours

About Henryuan Group

With over ten years of experience in the production and R&D of 48V lithium battery chargers, Henryuan Group is a leading supplier in the industry. Our high-quality 54.6V 5A lithium chargers are renowned for their superior performance and safety features, making them a preferred choice among consumers worldwide. We export to the Americas, Europe, the UK, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan, and more.

More 48V Lithium Battery Chargers Links:

Contact Us

For a reliable and efficient 54.6V lithium charger, contact Henryuan's sales engineers today. We offer a range of models, including 54.6V 1A, 1.5A, 2A, 3A, 4A, 5A, 6A and 7A chargers to meet your specific needs.
